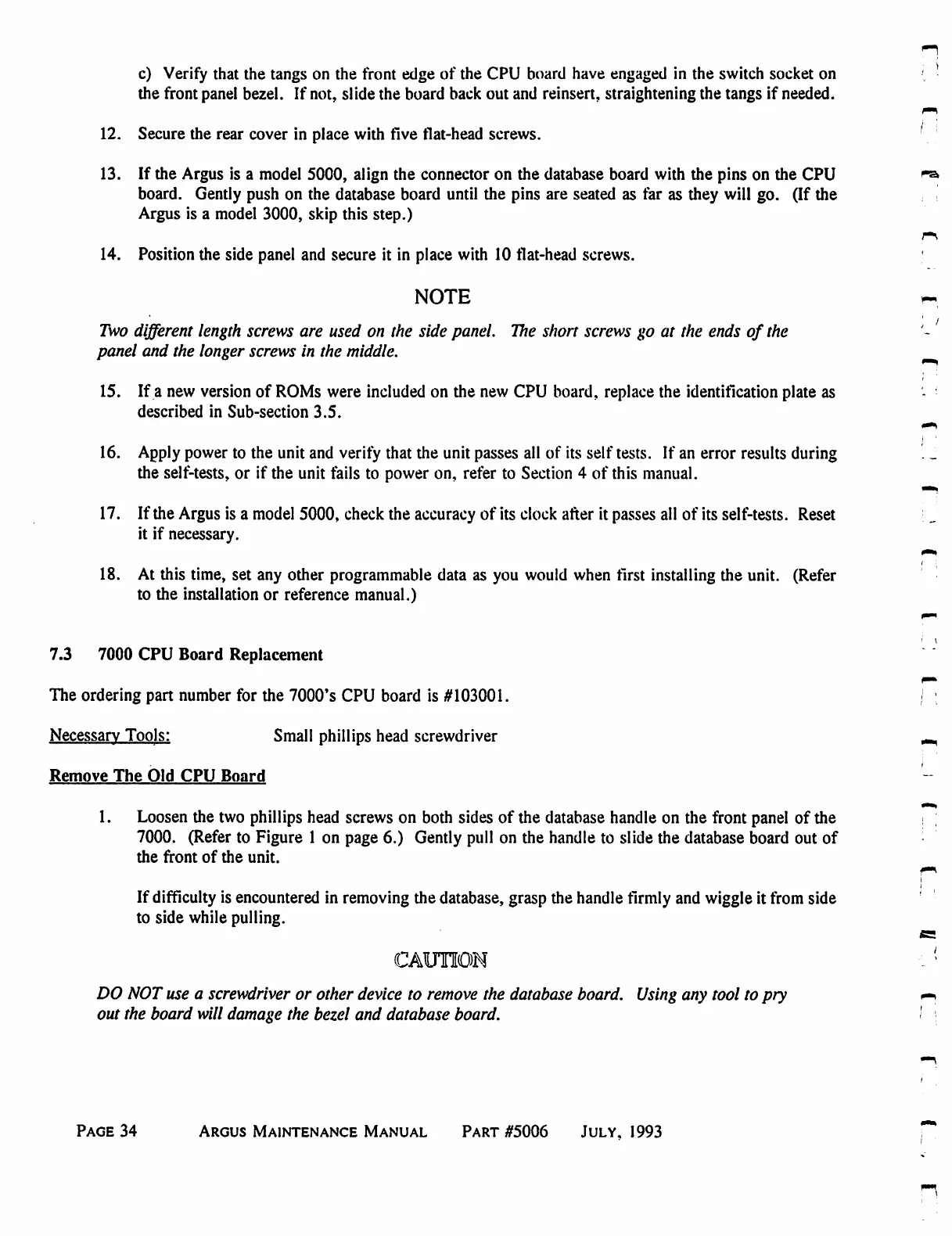

c)
Verify
that
the
tangs
on
the
front
edge
of
the
CPU
board
have
engaged
in
the
switch
socket
on
the
front
panel
bezel.
If
not,
slide
the
board
back
out
and
reinsert,
straightening
the
tangs
if
needed.
12.
Secure
the
rear
cover
in
place
with
five
flat-head
screws.
13.
If
the
Argus
is
a
model
5000,
align
the
connector
on
the
database
board
with
the
pins
on
the
CPU
board.
Gently
push
on
the
database
board
until
the pins are
seated
as
far
as
they
will
go.
(If
the
Argus
is
a
model
3000,
skip
this
step.)
14.
Position
the
side
panel
and
secure
it
in
place
with
10
flat-head
screws.
NOTE
Two
different
length
screws
are
used
on
the
side
panel.
The
short
screws
go
at
the
ends
of
the
panel
and
the
longer
screws
in
the
middle.
15.
If
a
new
version
of
ROMs
were
included
on
the
new
CPU
board,
replace
the
identification
plate
as
described
in
Sub-section
3.5.
16.
Apply
power
to
the
unit
and
verify
that
the
unit
passes
all
of
its
self
tests.
If
an
error
results
during
the
self-tests,
or
if
the
unit
fails
to
power
on,
refer
to
Section
4
of
this
manual.
17.
If
the
Argus
is
a
model
5000, check
the
accuracy
of
its
clock
after
it
passes
all
of
its
self-tests.
Reset
it
if
necessary.
18.
At
this
time,
set
any
other
programmable
data
as
you
would
when
first
installing
the
unit.
(Refer
to
the
installation
or
reference
manual.)
7.3
7000
CPU
Board
Replacement
The
ordering
pan
number
for
the
7000's
CPU
board
is
#103001.
Necessary
Tools:
Small
phillips
head
screwdriver
Remove
The
Old
CPU
Board
1.
Loosen
the
two
phillips
head
screws
on
both
sides
of
the
database
handle
on
the
front
panel
of
the
7000.
(Refer
to
Figure
1
on
page
6.)
Gently
pull
on
the
handle
to slide
the
database
board
out
of
the
front
of
the
unit.
If
difficulty
is
encountered
in
removing
the database,
grasp
the
handle
firmly
and
wiggle
it
from
side
to
side
while
pulling.
DO
NOT
use
a
screwdriver
or
other
device
to
remove
the
database
board.
Using
any
tool to
pry
out
the
board
will
damage
the
bezel
and
database
board.
Page
34
Argus
Maintenance
Manual
Part
#5006
July,
1993
