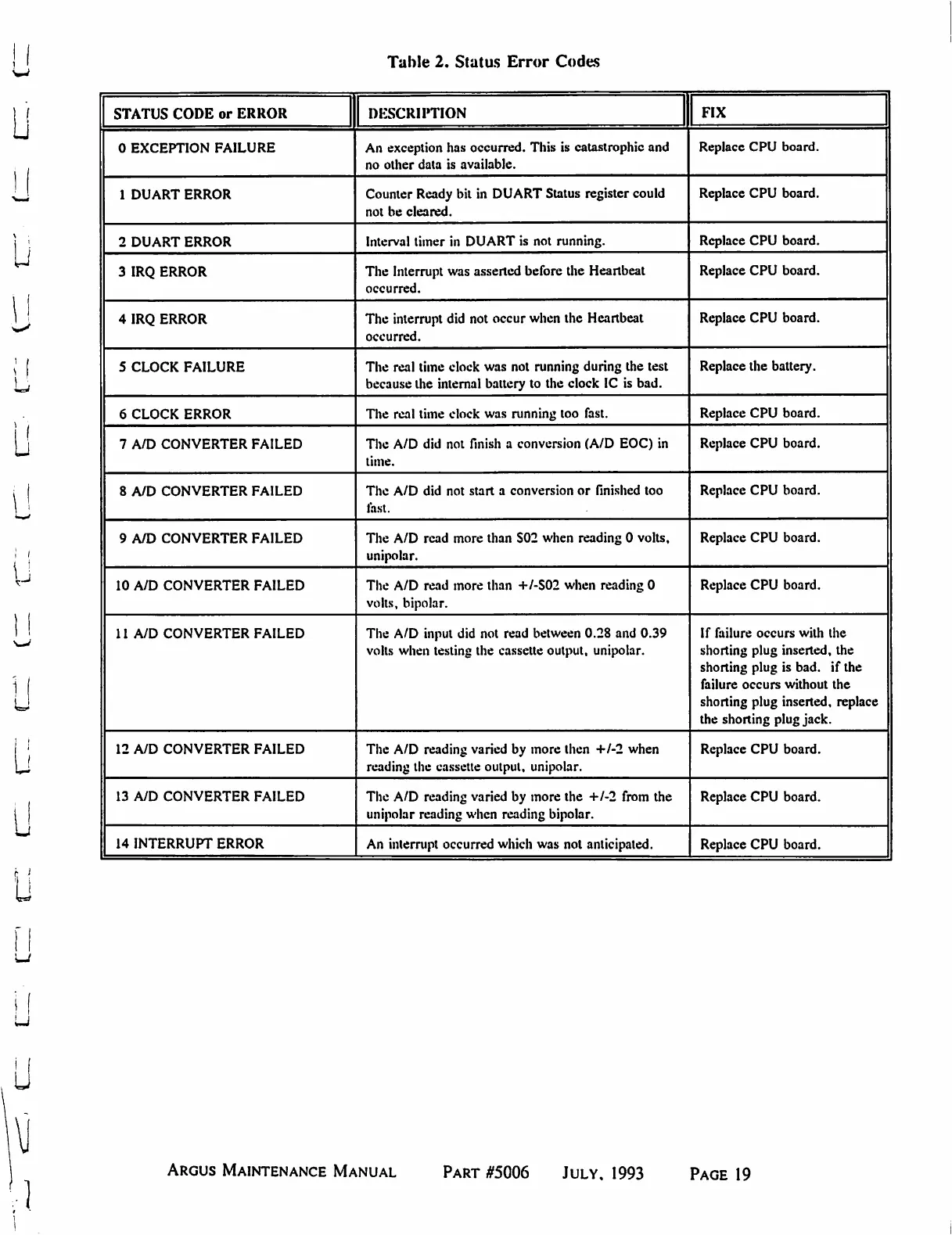

Table 2. Status Error Codes
u
u
LI
u
i I
U
L
STATUS CODE or ERROR
0 EXCEPTION FAILURE
1 DUART ERROR
2 DUART ERROR
3 IRQ ERROR
4 IRQ ERROR
5 CLOCK FAILURE
6 CLOCK ERROR
7 A/D CONVERTER FAILED
8 A/D CONVERTER FAILED
9 A/D CONVERTER FAILED
10 A/D CONVERTER FAILED
11 A/D CONVERTER FAILED
12 A/D CONVERTER FAILED
13 A/D CONVERTER FAILED
14 INTERRUPT ERROR
DESCRIPTION
An exception has occurred. This is catastrophic and
no other data is available.
Counter Ready bit in DUART Status register could
not be cleared.
Interval timer in DUART is not running.
The Interrupt was asserted before the Heartbeat
occurred.
The interrupt did not occur when the Heartbeat
occurred.
The real time clock was not running during the test
because the internal battery to the clock IC is bad.
The real time clock was running too fast.
The A/D did not finish a conversion (A/D EOC) in
time.
The A/D did not start a conversion or finished too
fast.
The A/D read more than S02 when reading 0 volts,
unipolar.
The A/D read more than +/-S02 when reading 0
volts, bipolar.
The A/D input did not read between 0.28 and 0.39
volts when testing the cassette output, unipolar.
The A/D reading varied by more then +/-2 when
reading the cassette output, unipolar.
The A/D reading varied by more the +/-2 from the
unipolar reading when reading bipolar.
An interrupt occurred which was not anticipated.
FIX
Replace CPU board.
Replace CPU board.
Replace CPU board.
Replace CPU board.
Replace CPU board.
Replace the battery.
Replace CPU board.
Replace CPU board.
Replace CPU board.
Replace CPU board.
Replace CPU board.
If failure occurs with the
shorting plug inserted, the
shorting plug is bad. if the
failure occurs without the
shorting plug inserted, replace
the shorting plug jack.
Replace CPU board.
Replace CPU board.
Replace CPU board.
LJ
u
Argus Maintenance Manual
Part #5006 July. 1993
Page 19
