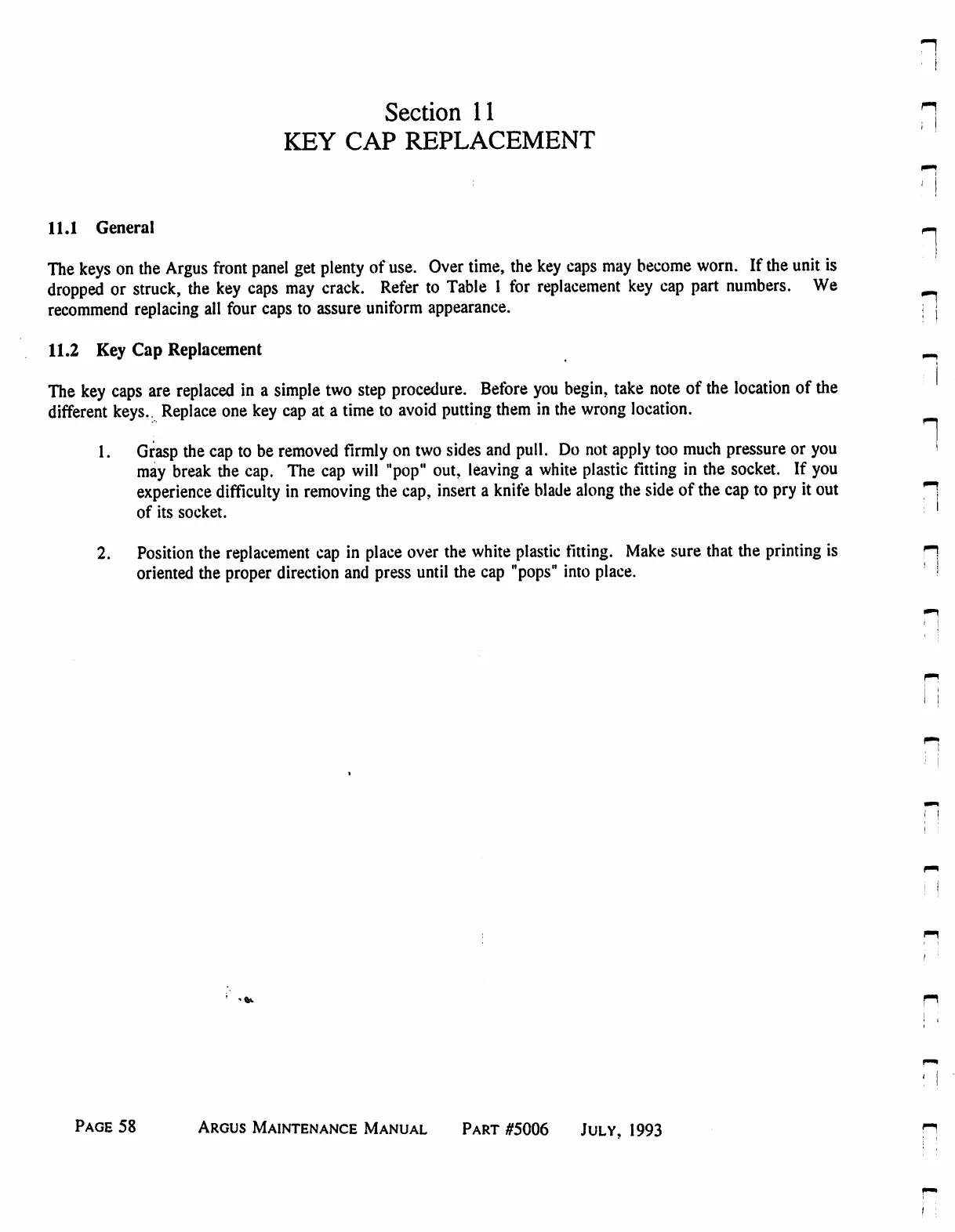

Section 11
KEY CAP REPLACEMENT
11.1 General r-.
The keys on the Argus front panel get plenty of use. Over time, the key caps may become worn. If the unit is
dropped or struck, the key caps may crack. Refer to Table 1 for replacement key cap part numbers. We
recommend replacing all four caps to assure uniform appearance. ;
11.2 Key Cap Replacement ^
The key caps are replaced in a simple two step procedure. Before you begin, take note of the location of the
different keys.. Replace one key cap at a time to avoid putting them in the wrong location.
1. Grasp the cap to be removed firmly on two sides and pull. Do not apply too much pressure or you '
may break the cap. The cap will "pop" out, leaving a white plastic fitting in the socket. If you
experience difficulty in removing the cap, insert a knife blade along the side of the cap to pry it out
of its socket.
2. Position the replacement cap in place over the white plastic fitting. Make sure that the printing is
oriented the proper direction and press until the cap "pops" into place.
i i
Page 58 Argus Maintenance Manual Part #5006 July, 1993
