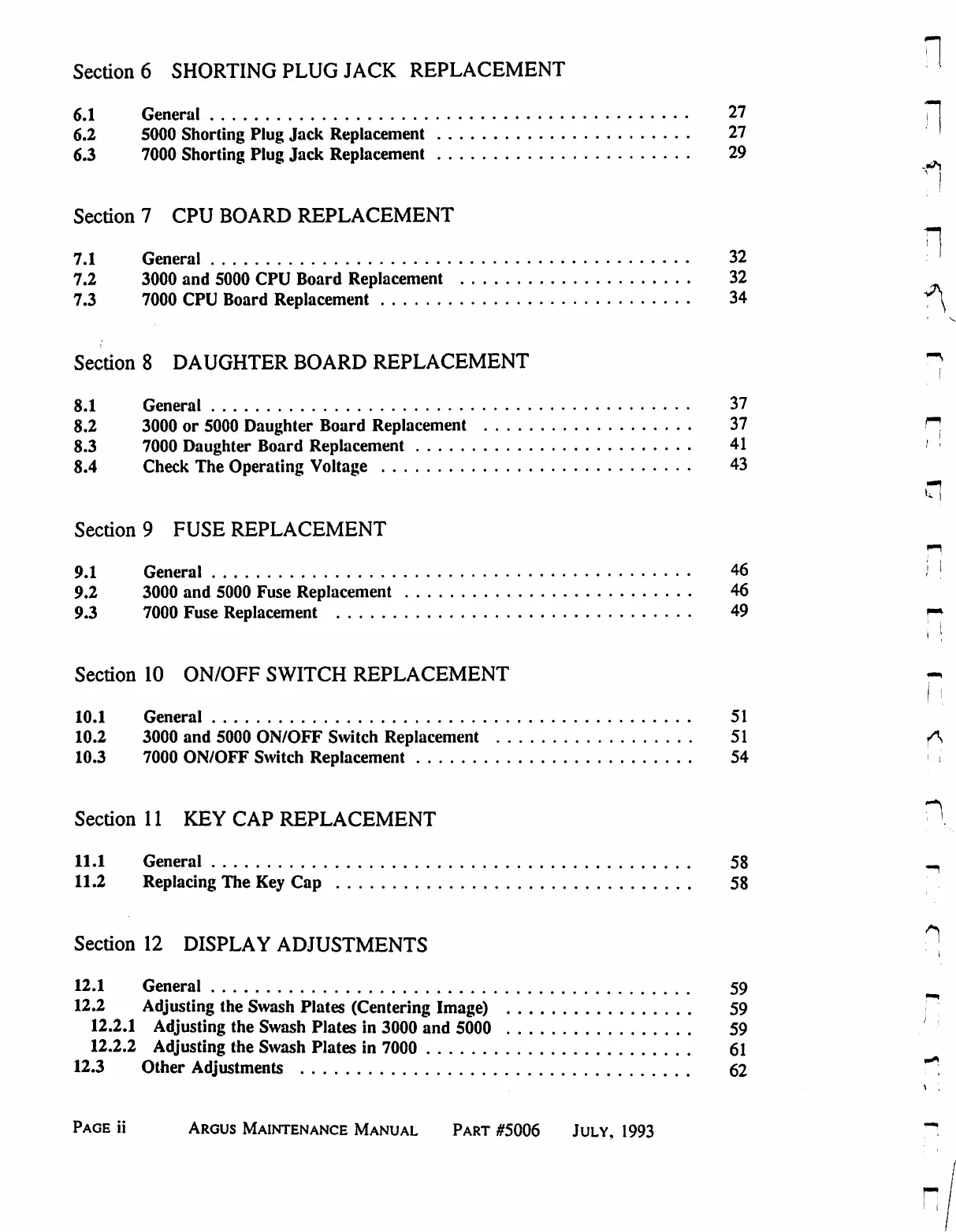

Section 6 SHORTING PLUG JACK REPLACEMENT '
6.1 General 27 H
6.2 5000 Shorting Plug Jack Replacement 27 '
6.3 7000 Shorting Plug Jack Replacement 29
Section 7 CPU BOARD REPLACEMENT
7.1 General 32
7.2 3000 and 5000 CPU Board Replacement 32
7.3 7000 CPU Board Replacement 34
Section 8 DAUGHTER BOARD REPLACEMENT ^
8.1 General 37
8.2 3000 or 5000 Daughter Board Replacement 37 H
8.3 7000 Daughter Board Replacement 41 /
8.4 Check The Operating Voltage 43
l^ I
Section 9 FUSE REPLACEMENT
9.1 General 46 i \
9.2 3000 and 5000 Fuse Replacement 46
9.3 7000 Fuse Replacement 49 r*
;!
Section 10 ON/OFF SWITCH REPLACEMENT -.
i
10.1 General 51
10.2 3000 and 5000 ON/OFF Switch Replacement 51 f\
10.3 7000 ON/OFF Switch Replacement 54
Section 11 KEY CAP REPLACEMENT ^
11.1 General 58 _,
11.2 Replacing The Key Cap 58
Section 12 DISPLAY ADJUSTMENTS ^
12.1 General 59
12.2 Adjusting the Swash Plates (Centering Image) 59
12.2.1 Adjusting the Swash Plates in 3000 and 5000 59
12.2.2 Adjusting the Swash Plates in 7000 61
12.3 Other Adjustments 62 **\
