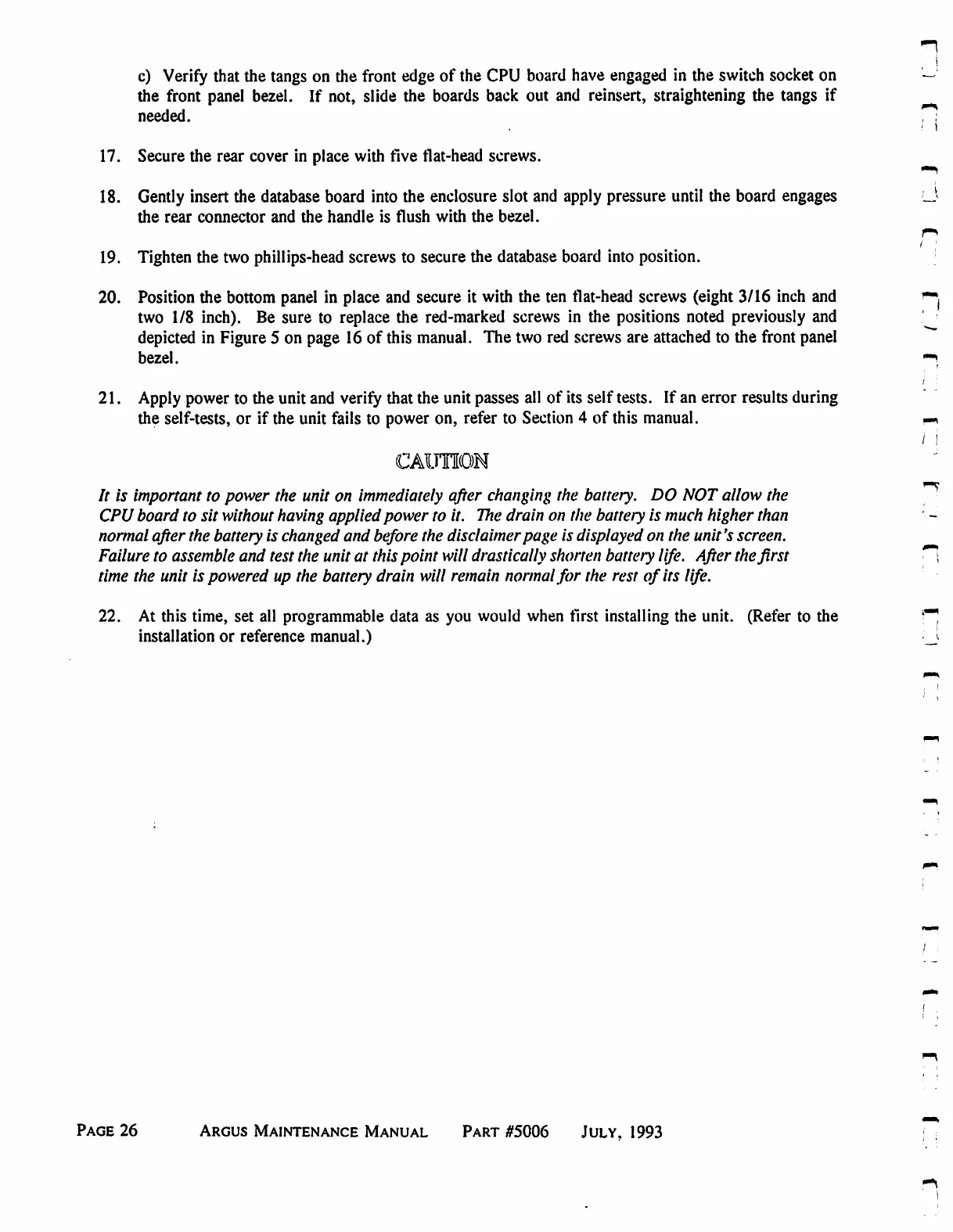

c) Verify that the tangs on the front edge of the CPU board have engaged in the switch socket on —
the front panel bezel. If not, slide the boards back out and reinsert, straightening the tangs if
needed.
17. Secure the rear cover in place with five flat-head screws.
18. Gently insert the database board into the enclosure slot and apply pressure until the board engages l)
the rear connector and the handle is flush with the bezel.
19. Tighten the two phillips-head screws to secure the database board into position.
20. Position the bottom panel in place and secure it with the ten flat-head screws (eight 3/16 inch and i**,
two 1/8 inch). Be sure to replace the red-marked screws in the positions noted previously and
depicted in Figure 5 on page 16 of this manual. The two red screws are attached to the front panel "~
bezel. ""i
21. Apply power to the unit and verity that the unit passes all of its self tests. If an error results during
the self-tests, or if the unit fails to power on, refer to Section 4 of this manual. -*
/ i
CAUTION
It is important to power the unit on immediately after changing the battery. DO NOT allow the
CPU board to sit without having applied power to it. The drain on the battery is much higher than
normal after the battery is changed and before the disclaimer page is displayed on the unit's screen.
Failure to assemble and test the unit at this point will drastically shorten battery life. After the first H
time the unit is powered up the battery drain will remain normal for the rest of its life.
22. At this time, set all programmable data as you would when first installing the unit. (Refer to the '""|
installation or reference manual.) <_}
Page 26 Argus Maintenance Manual Part #5006 July. 1993
