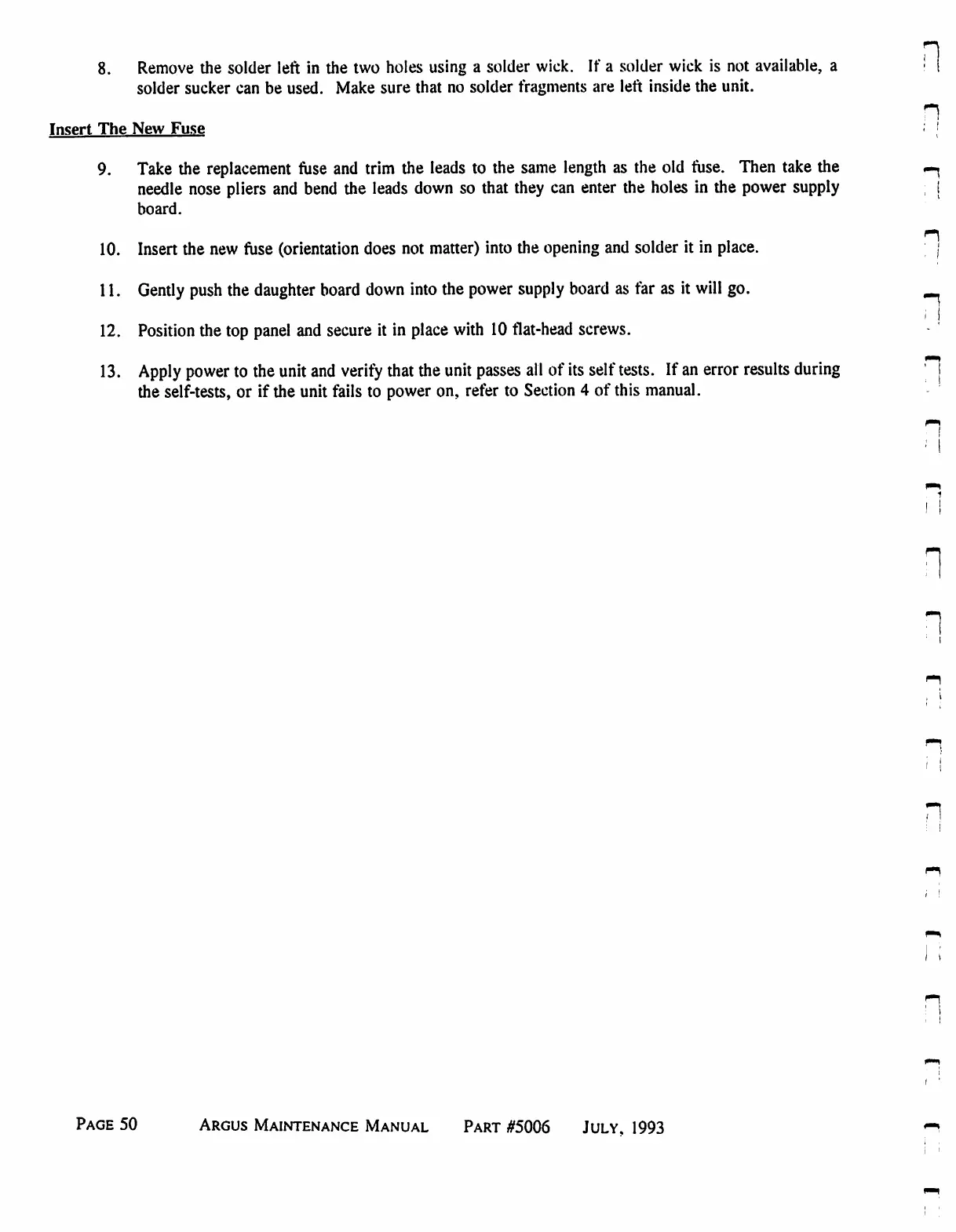

8. Remove the solder left in the two holes using a solder wick. If a solder wick is not available, a ! I
solder sucker can be used. Make sure that no solder fragments are left inside the unit.
n
Insert The New Fuse J
9. Take the replacement fuse and trim the leads to the same length as the old ruse. Then take the ^
needle nose pliers and bend the leads down so that they can enter the holes in the power supply I
board.
n
10. Insert the new ruse (orientation does not matter) into the opening and solder it in place. j
11. Gently push the daughter board down into the power supply board as far as it will go.
i i
12. Position the top panel and secure it in place with 10 flat-head screws.
13. Apply power to the unit and verify that the unit passes all of its self tests. If an error results during ' I
the self-tests, or if the unit fails to power on, refer to Section 4 of this manual.
n
n
n
i i
n
n
Page 50 Argus Maintenance Manual Part #5006 July, 1993
