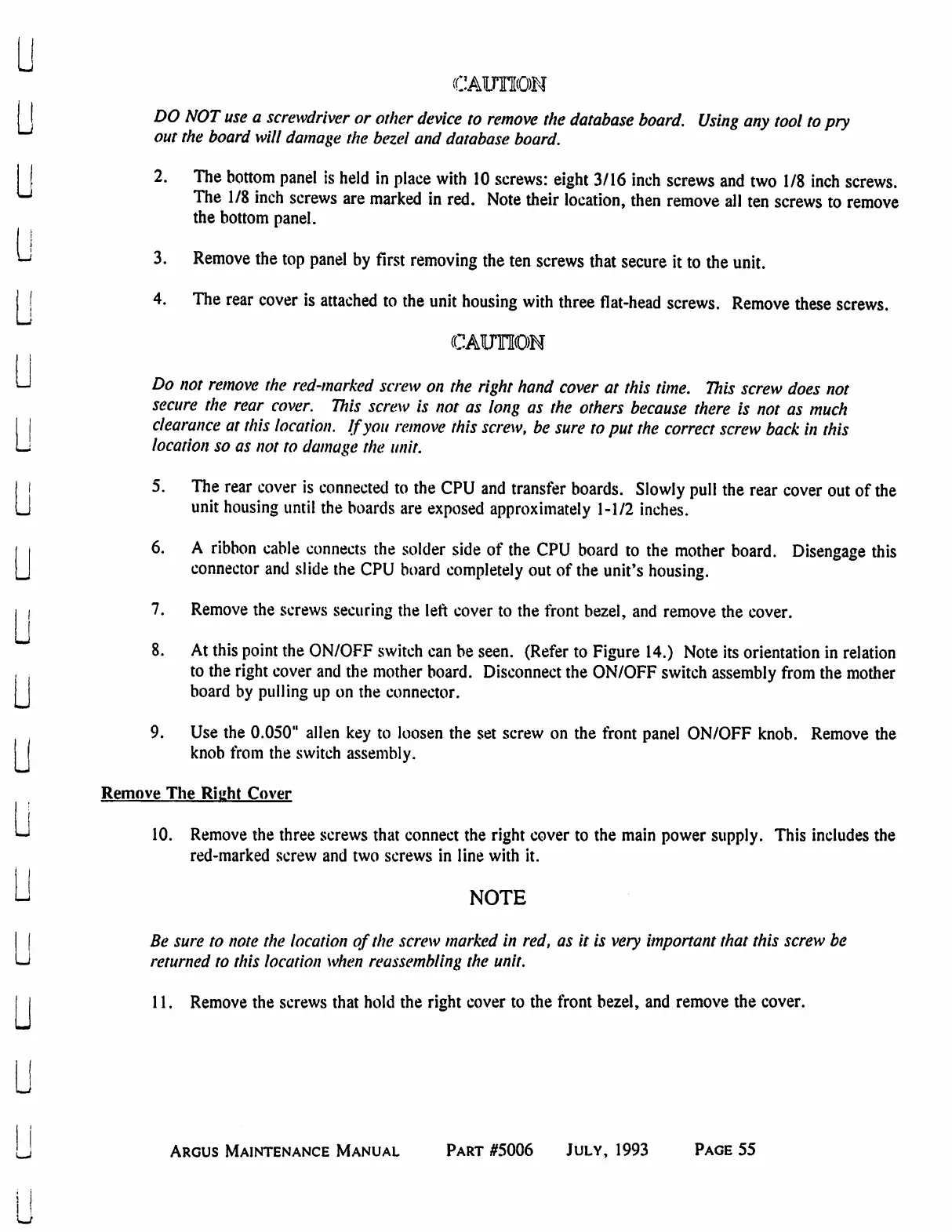

CAUTION

DO

NOT

use

a

screwdriver

or

other

device

to

remove

the

database

board.

Using

any

tool

to

pry

out

the

board

will

damage

the

bezel

and

database

board.

2.

The

bottom

panel

is

held

in

place

with

10 screws:

eight

3/16

inch

screws and

two

1/8

inch

screws.

The

1/8

inch

screws

are

marked

in

red.

Note

their

location,

then

remove

all

ten

screws

to

remove

the

bottom

panel.

3.

Remove

the top

panel

by

first

removing

the

ten

screws

that

secure

it

to

the

unit.

4.

The

rear

cover

is

attached

to

the

unit

housing

with

three

flat-head

screws.

Remove

these

screws.

CAUTION

Do

not

remove

the

red-marked

screw

on

the

right

hand

cover

at

this

time.

This

screw

does

not

secure

the

rear

cover.

This

screw

is

not

as

long as

the

others

because

there

is

not

as

much

clearance

at

this

location.

If

you

remove

this

screw,

be

sure

to

put

the

correct

screw back

in

this

location

so

as

not

to

damage

the

unit.

5.

The

rear

cover

is

connected

to

the

CPU

and

transfer

boards.

Slowly

pull

the

rear

cover

out

of

the

unit

housing

until

the

boards

are

exposed

approximately

1-1/2

inches.

6.

A

ribbon

cable

connects

the

solder

side

of

the

CPU

board

to

the

mother

board.

Disengage

this

connector

and

slide

the

CPU

board

completely

out

of

the

unit's

housing.

7.

Remove

the

screws

securing

the

left

cover

to

the

front bezel,

and

remove

the

cover.

8.

At

this

point the

ON/OFF

switch

can

be

seen.

(Refer

to

Figure

14.)

Note

its

orientation

in

relation

to

the

right

cover

and

the

mother

board.

Disconnect

the

ON/OFF

switch

assembly

from

the

mother

board

by

pulling

up

on

the

connector.

9.

Use

the

0.050"

alien

key

to

loosen

the

set

screw

on

the

front

panel

ON/OFF

knob.

Remove

the

knob

from

the

switch

assembly.

Remove

The

Right

Cover

10.

Remove

the

three

screws

that

connect

the

right

cover

to

the

main

power

supply.

This

includes

the

red-marked

screw

and

two

screws

in

line

with

it.

NOTE

Be

sure

to

note

the

location

of

the

screw

marked

in

red,

as

it

is

very

important

that

this

screw

be

returned

to

this

location

when

reassembling

the

unit.

11.

Remove

the

screws

that

hold

the

right

cover

to

the

front

bezel,

and

remove

the

cover.

_j

Argus

Maintenance

Manual

Part

#5006

July,

1993

Page

55
