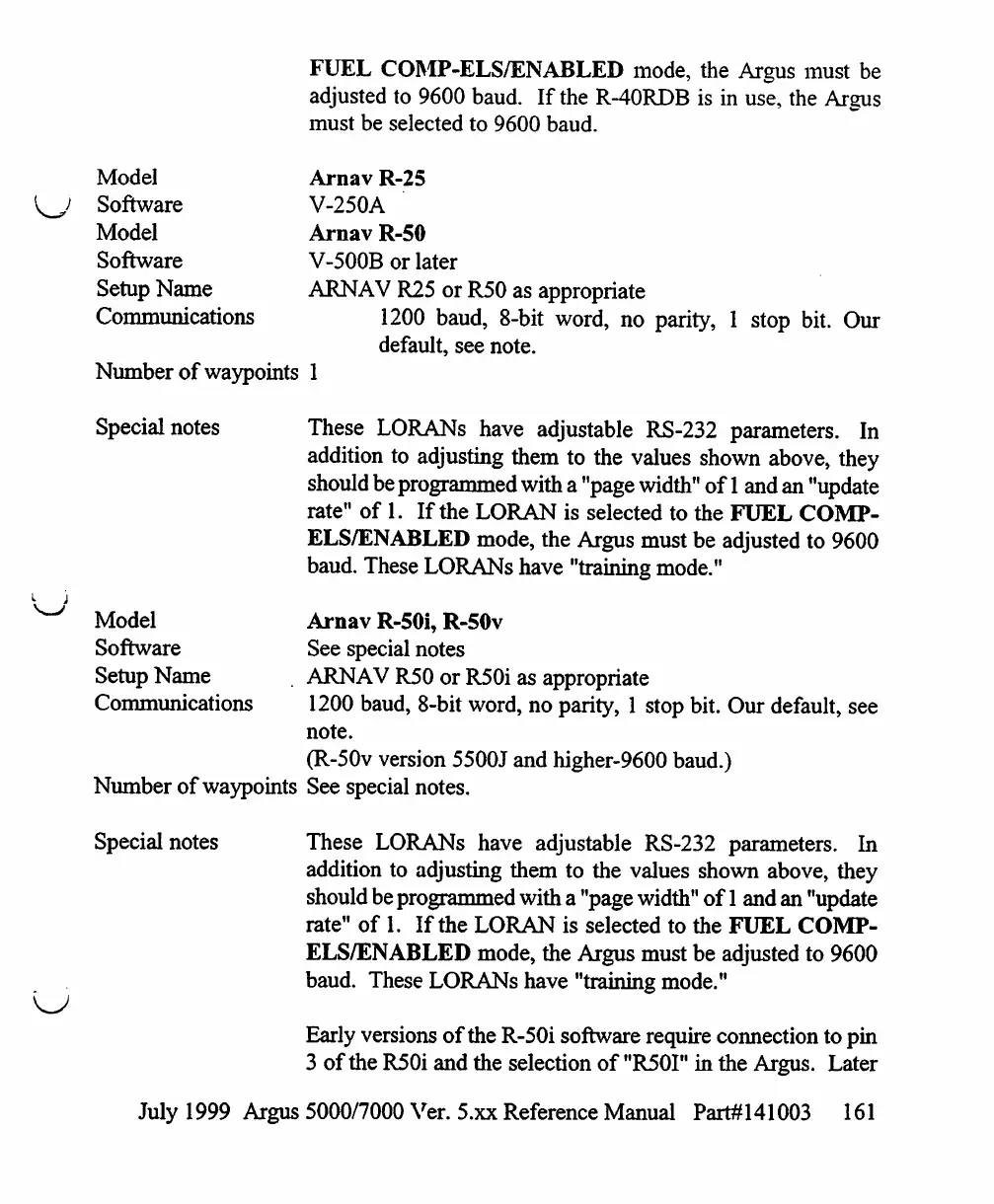

Eventide ARGUS 5000 - Page 165

FUEL COMP-ELS/ENABLED mode, the Argus must be
adjusted to 9600 baud. If the R-40RDB is in use, the Argus
must be selected to 9600 baud.
Model Arnav R-25
{J Software V-250A
Model Arnav R-50
Software V-500B or later
Setup Name ARNAV R25 or R50 as appropriate
Communications 1200 baud, 8-bit word, no parity, 1 stop bit. Our
default, see note.
Number of waypoints 1
Special notes These LORANs have adjustable RS-232 parameters. In
addition to adjusting them to the values shown above, they
should be programmed with a "page width" of 1 and an "update
rate" of 1. If the LORAN is selected to the FUEL COMP
ELS/ENABLED mode, the Argus must be adjusted to 9600
baud. These LORANs have "training mode."
i j
W Model Arnav R-50i, R-50v
Software See special notes
Setup Name . ARNAV R50 or R50i as appropriate
Communications 1200 baud, 8-bit word, no parity, 1 stop bit. Our default, see
note.
(R-50v version 5500J and higher-9600 baud.)
Number of waypoints See special notes.
Special notes These LORANs have adjustable RS-232 parameters. In
addition to adjusting them to the values shown above, they
should be programmed with a "page width" of 1 and an "update
rate" of 1. If the LORAN is selected to the FUEL COMP
ELS/ENABLED mode, the Argus must be adjusted to 9600
baud. These LORANs have "training mode."
Early versions of the R-50i software require connection to pin
3 of the R50i and the selection of "R50I" in the Argus. Later
July 1999 Argus 5000/7000 Ver. 5.xx Reference Manual Part#141003 161
