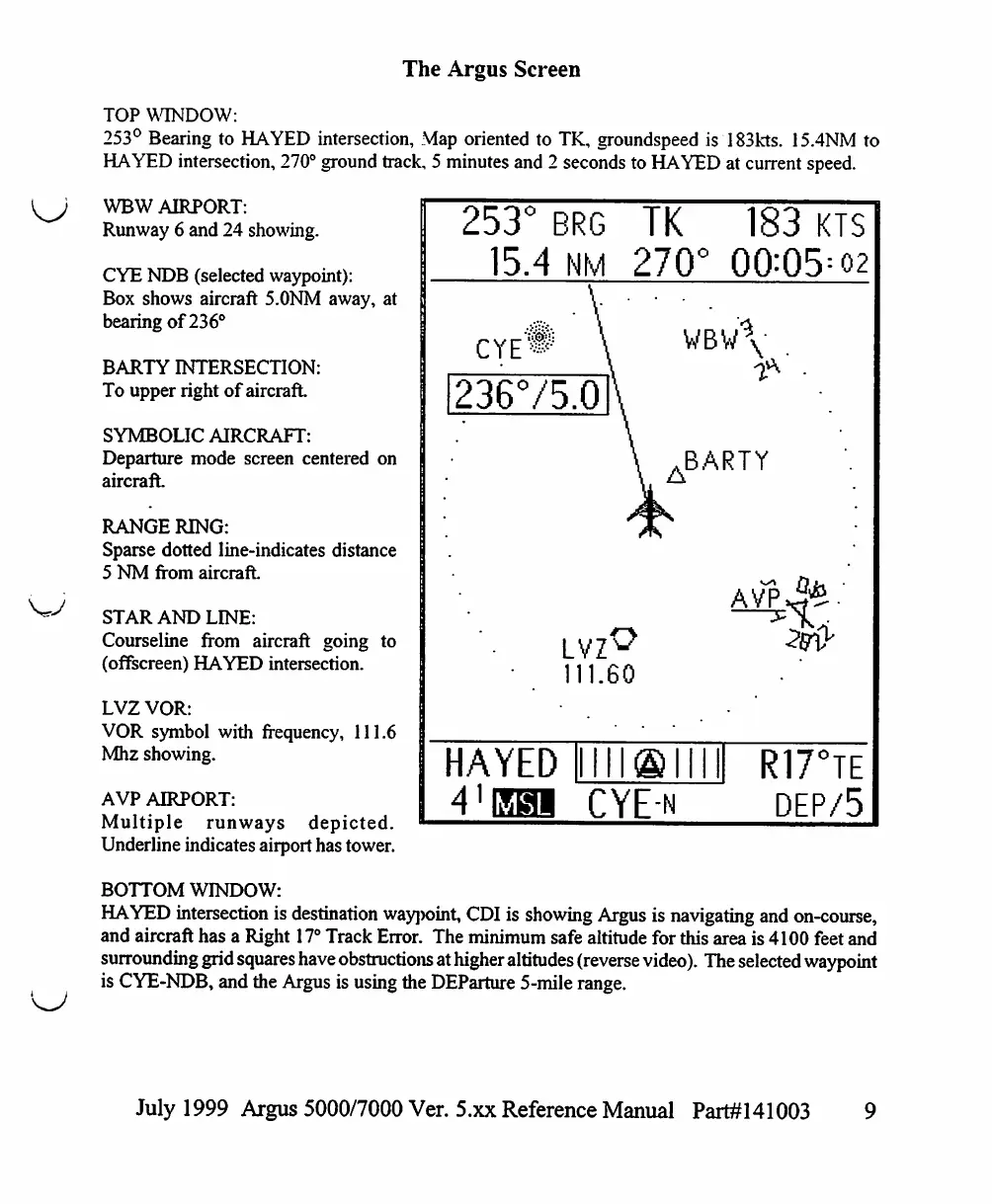

The Argus Screen
TOP WINDOW:
253° Bearing to HAYED intersection, Map oriented to TK, groundspeed is 183kts. 15.4NM to
HAYED intersection, 270° ground track, 5 minutes and 2 seconds to HAYED at current speed.
253° brg TK 183 kts
15.4 NM 270° 00:05:02
cyeII
23675.0
WBW\
BARTY
WBW AIRPORT:
Runway 6 and 24 showing.
CYE NDB (selected waypoint):
Box shows aircraft 5.0NM away, at
bearing of 236°
BARTY INTERSECTION:
To upper right of aircraft.
SYMBOLIC AIRCRAFT:
Departure mode screen centered on
aircraft.
RANGE RING:
Sparse dotted line-indicates distance
5 NM from aircraft.
STAR AND LINE:
Courseline from aircraft going to
(offscreen) HAYED intersection.
LVZVOR:
VOR symbol with frequency, 111.6
Mhz showing.
AVP AIRPORT:
Multiple runways depicted.
Underline indicates airport has tower.
BOTTOM WINDOW:
HAYED intersection is destination waypoint, CDI is showing Argus is navigating and on-course,
and aircraft has a Right 17° Track Error. The minimum safe altitude for this area is 4100 feet and
surrounding grid squares have obstructions at higher altitudes (reverse video). The selected waypoint
is CYE-NDB, and the Argus is using the DEParture 5-mile range.
111.60
HAYED \\\\®
CYE-n
R17°TE
DEP/5
July 1999 Argus 5000/7000 Ver. 5.xx Reference Manual Part#141003
