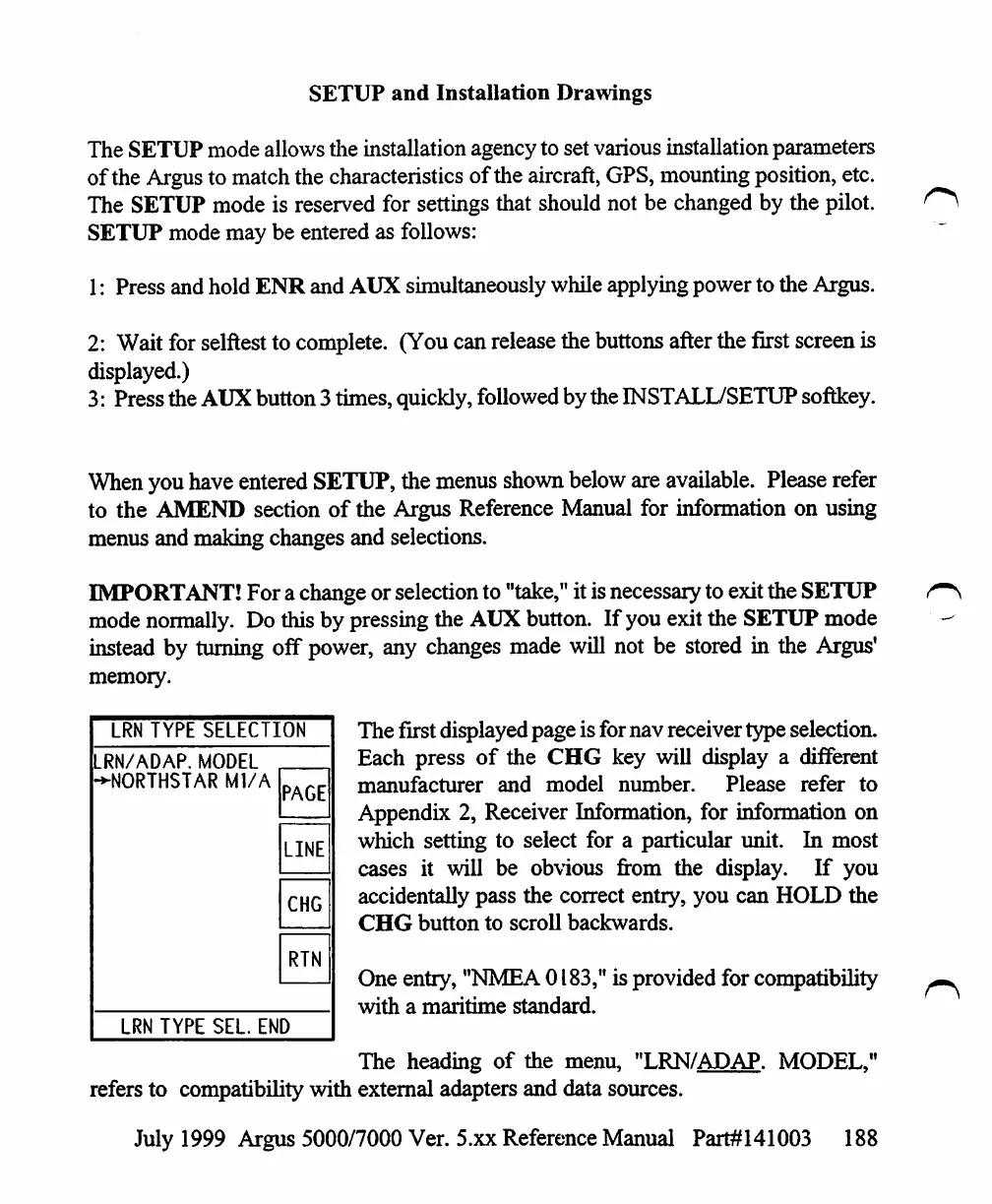

SETUP and Installation Drawings
The SETUP mode allows the installation agency to set various installation parameters
of the Argus to match the characteristics of the aircraft, GPS, mounting position, etc.
The SETUP mode is reserved for settings that should not be changed by the pilot.
SETUP mode may be entered as follows:
1: Press and hold ENR and AUX simultaneously while applying power to the Argus.
2: Wait for selftest to complete. (You can release the buttons after the first screen is
displayed.)
3: Press the AUX button 3 times, quickly, followed by the INSTALL/SETUP softkey.
When you have entered SETUP, the menus shown below are available. Please refer
to the AMEND section of the Argus Reference Manual for information on using
menus and making changes and selections.
IMPORTANT! For a change or selection to "take," it is necessary to exit the SETUP
mode normally. Do this by pressing the AUX button. If you exit the SETUP mode
instead by turning off power, any changes made will not be stored in the Argus'
memory.
The first displayed page is for nav receiver type selection.
Each press of the CHG key will display a different
manufacturer and model number. Please refer to
Appendix 2, Receiver Information, for information on
which setting to select for a particular unit. In most
cases it will be obvious from the display. If you
accidentally pass the correct entry, you can HOLD the
CHG button to scroll backwards.
One entry, "NMEA 0183," is provided for compatibility
with a maritime standard.
The heading of the menu, "LRN/ADAP. MODEL,"
refers to compatibility with external adapters and data sources.
LRN TYPE SELECTION
LRN/ADAP. MODEL
-^NORTHSTAR Ml/A
PAGE
LINE
CHG
RTN
LRN TYPE SEL. END
July 1999 Argus 5000/7000 Ver. 5.xx Reference Manual Part#141003 188
