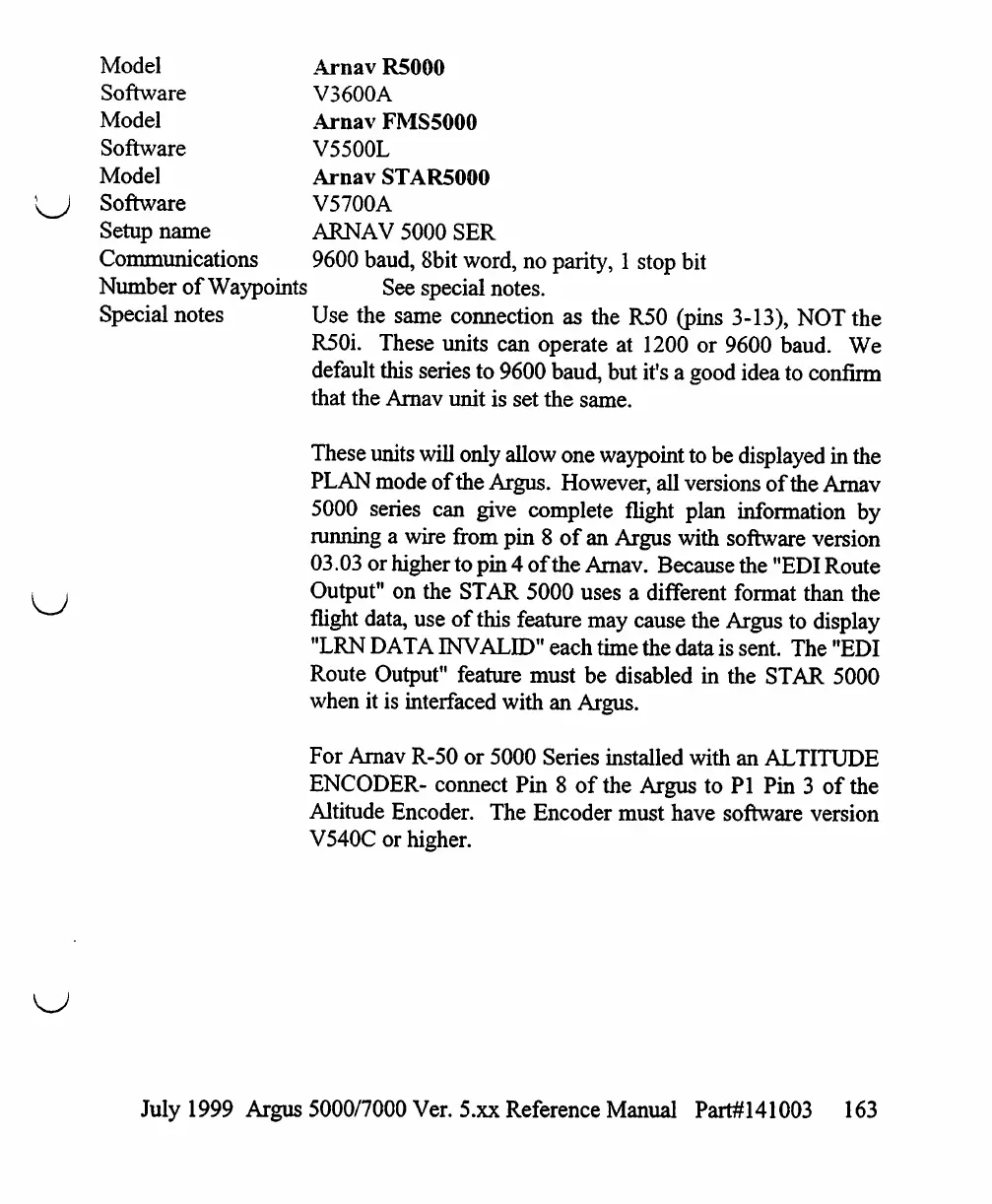

Model Arnav R5000
Software V3600A
Model Arnav FMS5000
Software V5500L
Model Arnav STAR5000
^J Software V5700A
Setup name ARNAV 5000 SER
Communications 9600 baud, 8bit word, no parity, 1 stop bit
Number of Waypoints See special notes.
Special notes Use the same connection as the R50 (pins 3-13), NOT the
R50i. These units can operate at 1200 or 9600 baud. We
default this series to 9600 baud, but it's a good idea to confirm
that the Arnav unit is set the same.
These units will only allow one waypoint to be displayed in the
PLAN mode of the Argus. However, all versions of the Arnav
5000 series can give complete flight plan information by
running a wire from pin 8 of an Argus with software version
03.03 or higher to pin 4 of the Arnav. Because the "EDI Route
i i Output" on the STAR 5000 uses a different format than the
flight data, use of this feature may cause the Argus to display
"LRN DATA INVALID" each time the data is sent. The "EDI
Route Output" feature must be disabled in the STAR 5000
when it is interfaced with an Argus.
For Arnav R-50 or 5000 Series installed with an ALTITUDE
ENCODER- connect Pin 8 of the Argus to PI Pin 3 of the
Altitude Encoder. The Encoder must have software version
V540C or higher.
July 1999 Argus 5000/7000 Ver. 5.xx Reference Manual Part#141003 163
