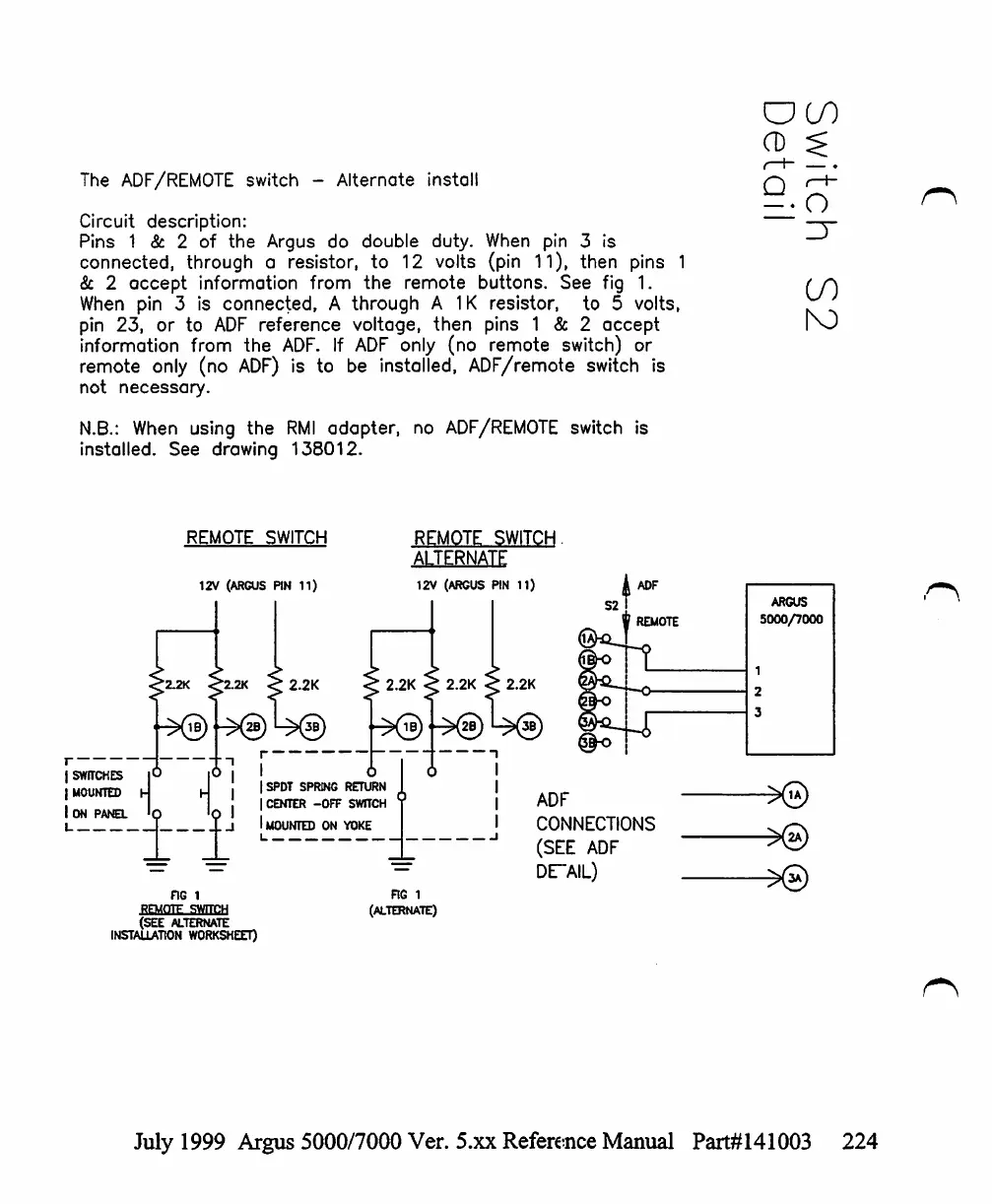

The
ADF/REMOTE
switch
-
Alternate
install
Circuit
description:
Pins
1
&
2
of
the
Argus
do
double
duty.
When
pin
3
is
connected,
through
a
resistor,
to
12
volts
(pin
11),
then
pins
1
8c
2
accept
information
from
the
remote
buttons.
See
fig
1.
When
pin
3
is
connected,
A
through
A
1K
resistor,
to
5
volts,
pin
23,
or
to
ADF
reference
voltage,
then
pins
1
&
2
accept
information
from
the
ADF.
If
ADF
only
(no
remote
switch)
or
remote
only
(no
ADF)
is
to
be
installed,
ADF/remote
switch
is
not
necessary.
N.B.:
When
using
the
RMI
adapter,
no
ADF/REMOTE
switch
is
installed.
See
drawing
138012.
ooo
CD
S
GO
to
REMOTE
SWITCH
12V
(ARGUS
PIN 11)
REMOTE
SWITCH
ALTERNATE
1
I
SWITCHES
|
MOUNTED
Ion
panel
|
SPOT
SPRING
RETURN
I
CENTER
-OFF
SWITCH
I
MOUNTED
ON
YOKE
I
ADF
CONNECTIONS
(SEE
ADF
DETAIL)
FIG
1
REMOTF
SWTTCH
(SEE
ALTERNATE
INSTALLATION
WORKSHEET)
FIG
1
(ALTERNATE)
July
1999
Argus
5000/7000
Ver. 5.xx
Reference
Manual
Part#141003
