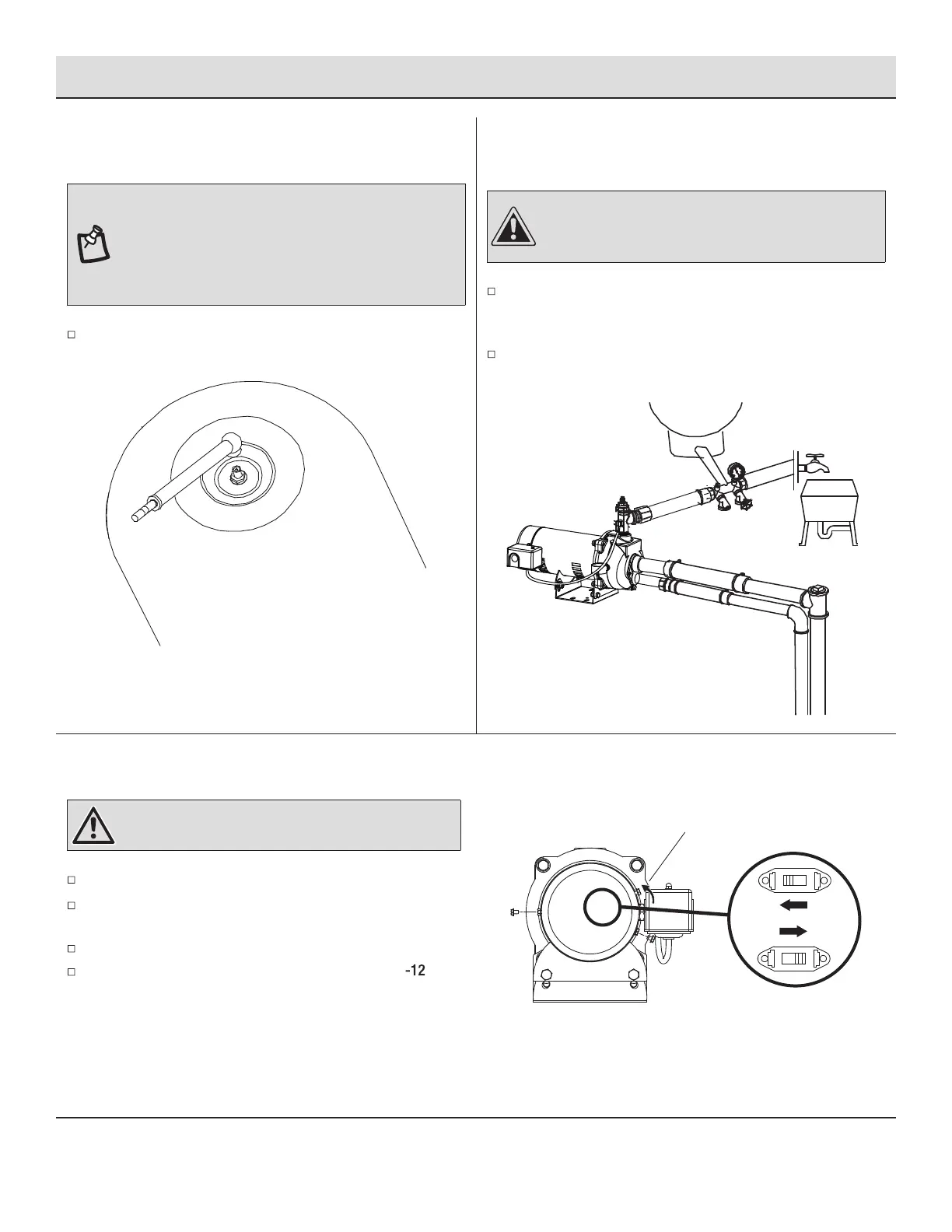

Deep Well Installation (continued)
16
Checking the pressure in the tank
NOTE: The pump has a 30/50 Psi pressure switch, which
means the "cut-in" is 30 Psi; therefore, the tank needs to be
set to 28 Psi. To check the pressure in the tank, use a tire
pressure gauge (not included). If the tank pre-charged less
than 28 Psi, re-charge air to the tank to 28 Psi with a tire
pump or air compressor. If the tank pre-charged over 28 Psi,
bleed out some air to 28 Psi.
Air pressure in the tank must be 2 Psi lower than the "cut-in"
of the pressure switch.
17
Connecting the pump with the
water system
CAUTION: Never install a shut-off valve between the pump
and the tank, as this can cause excessive friction loss and
can damage the pressure switch and/or pump. If necessary,
only install a fully open gate valve (sold separately).
Using PVC purple primer and PVC cement, attach a section
of 1 in. PVC pipe (sold separately) as needed to connect the
3/4 in. MNPT x 1 in. slip PVC adapter in the pressure regulator.
Attach another section of 1 in. PVC pipe (sold separately) as
needed to connect the other 1 in. female PVC adapter on the
tank tee to the water system from the house.
18
Voltage setting
WARNING: All electrical work should be performed by a
licensed electrician.
Electrical Housing Cover
115
230
This pump is pre-wired at 230V.
If the power source is 115V, remove the electrical housing
cover.
Flip the switch to 115V. Replace the cover.
Proceed to the wiring connections
section on page11
.
