HD2014, HD2012, HD2011 Video Passport
TM
1RU Multi-Path Video Converter, Frame Synchronizer and Decoder
Page 1-2 Revision 0.1 OVERVIEW

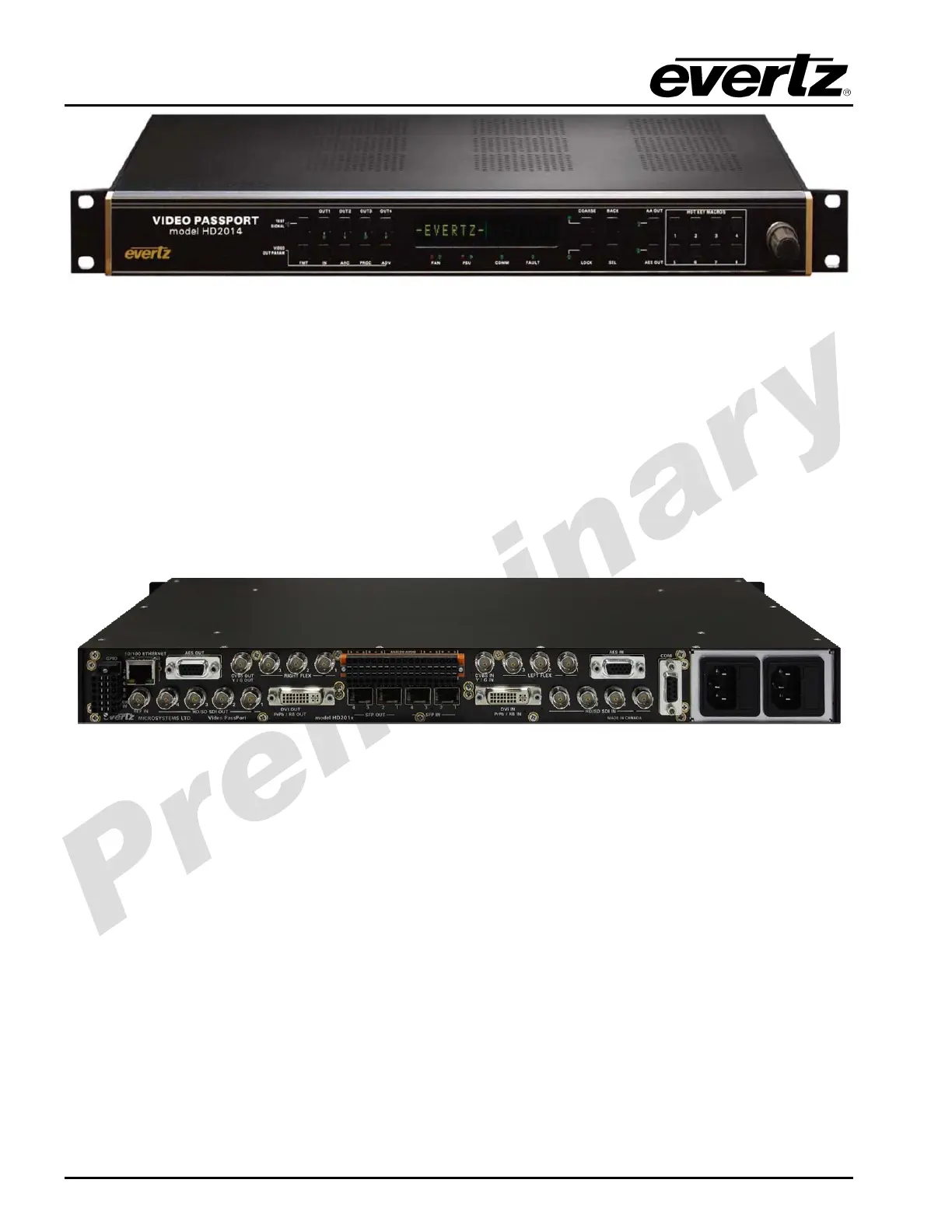

Figure 1-1: HD2014 Video PassPort™ Front Panel
Within the HD2014/12/11 architecture, 16 channels of audio are de-embedded from the input of each
conversion path and sent to the internal audio processor. Eight discrete AES audio inputs and
four/eight analog audio inputs can also be made available to the audio processor**. Per channel audio
delay, stereo to 5.1 up-mixing (+UMX), 5.1 to stereo down-mixing (+DMX), IntelliGain™ audio
loudness management (+IG) and audio band equalization (+EQ) can be performed on selected input
audio channels.
Following the audio processor, 16 channels of audio may be embedded into each of the outgoing
video processors. Each of the four audio embedders can support audio inversion, gain, mono mixing
and channel swapping capabilities. Similar per channel audio routing, inversion, gain and mono-mixing
capabilities are available for the 8x AES outputs and the 4x or 8x mono analog audio outputs**.
Figure 1-2: HD2014 Video PassPort™ Rear View
