HD2014, HD2012, HD2011 Video Passport
TM
1RU Multi-Path Video Converter, Frame Synchronizer and Decoder
Page 2-4 Revision 0.1 INSTALLATION
PIN # Name Description
1
Not used Reserved for future use
2
Not used Reserved for future use
3
Not used Reserved for future use
4
Not used Reserved for future use
5
Not used Reserved for future use
6
Not used Reserved for future use
7
AES In 2 AES Input 2 – Unbalanced
8
Not used Reserved for future use
9
AES In 6 AES Input 6 – Unbalanced
10
AES In 5 AES Input 5 – Unbalanced
11
AES In 1 AES Input 1 – Unbalanced
12
AES In 8
AES Input 8 – Unbalanced
13
AES In 7
AES Input 7 – Unbalanced
14
AES In 4 AES Input 4 – Unbalanced
15
AES In 3 AES Input 3 – Unbalanced
Female
Shell
GND Ground

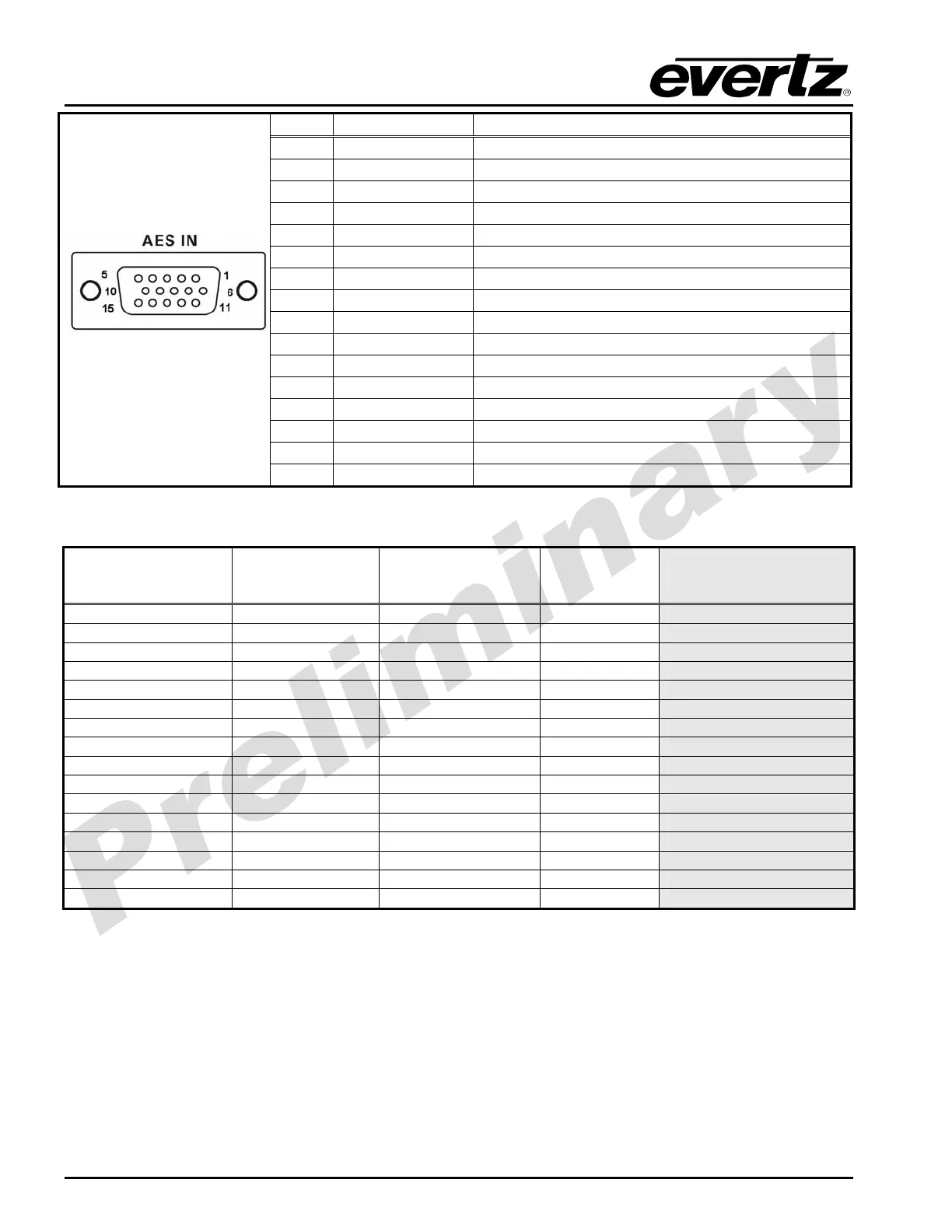

Table 2-2: AES Input Audio Connector Pinout
High Density DB-15
PIN (male)
Breakout
Cable
Connector
Ground/
Shield Connection
Labelled
Name
HD201x
Connector Pin Map
1
Red Wire W1 RED
Pin 1 – Not used
2
Green Wire W2 GREEN
Pin 2 – Not used
3
Blue Wire W3 BLUE
Pin 3 – Not used
4
Not Used Not used
Pin 4 – Not used
5
Not used Not used
Pin 5 – Not used
6
White Wire W4 WHITE
Pin 6 – Not used
7
Coax BNC Male Soldered to Shell AES A2
Pin 7 – AES In 2
8
Yellow W5 YELLOW
Pin 8 – Not used
9
Coax BNC Male Soldered to Shell AES B2
Pin 9 – AES In 6
10
Coax BNC Male Soldered to Shell AES B1
Pin 10– AES In 5
11
Coax BNC Male Soldered to Shell AES A1
Pin 11– AES In 1
12
Coax BNC Male Soldered to Shell AES B4
Pin 12– AES In 8
13
Coax BNC Male Soldered to Shell AES B3
Pin 13– AES In 7
14
Coax BNC Male Soldered to Shell AES A4
Pin 14– AES In 4
15
Coax BNC Male Soldered to Shell AES A3
Pin 15– AES In 3
Shell
Black Wire GND
GND
Table 2-3: AES Audio Input Breakout Cable (Evertz Part # WPAES8-BNCM-6F)
