HD2014, HD2012, HD2011 Video Passport
TM
1RU Multi-Path Video Converter, Frame Synchronizer and Decoder
Page 2-6 Revision 0.1 INSTALLATION

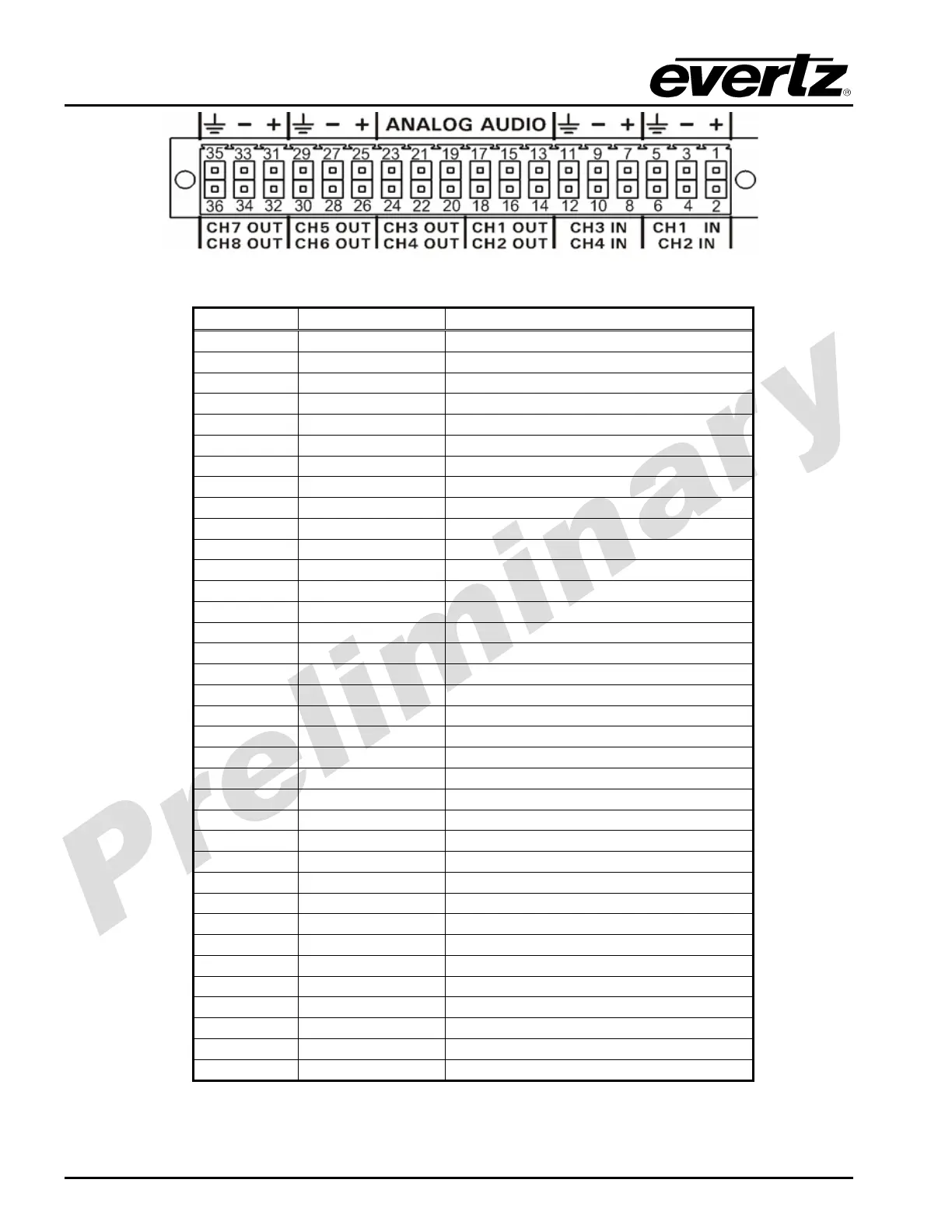

Figure 2-4: Analog Audio Connector
PIN # PIN OUT DESCRIPTION
1
CH1 IN + Channel 1 Analog Audio Input +
2
CH2 IN + Channel 2 Analog Audio Input +
3
CH1 IN - Channel 1 Analog Audio Input -
4
CH2 IN - Channel 2 Analog Audio Input -
5
CH1 IN GND Channel 1 IN Ground
6
CH2 IN GND Channel 2 IN Ground
7
CH3 IN + Channel 3 Analog Audio Input +
8
CH4 IN + Channel 4 Analog Audio Input +
9
CH3 IN - Channel 3 Analog Audio Input -
10
CH4 IN - Channel 4 Analog Audio Input -
11
CH3 IN GND Channel 3 Ground
12
CH4 IN GND Channel 4 Ground
13
CH1 OUT + Channel 1 Analog Audio Output +
14
CH2 OUT + Channel 2 Analog Audio Output +
15
CH1 OUT - Channel 1 Analog Audio Output -
16
CH2 OUT - Channel 2 Analog Audio Output -
17
CH1 OUT GND Channel 1 OUT Ground
18
CH2 OUT GND Channel 2 OUT Ground
19
CH3 OUT + Channel 3 Analog Audio Output +
20
CH4 OUT + Channel 4 Analog Audio Output +
21
CH3 OUT - Channel 3 Analog Audio Output -
22
CH4 OUT - Channel 4 Analog Audio Output -
23
CH3 OUT GND Channel 3 OUT Ground
24
CH4 OUT GND Channel 4 OUT Ground
25
CH5 OUT + Channel 5 Analog Audio Output +
26
CH6 OUT + Channel 6 Analog Audio Output +
27
CH5 OUT - Channel 5 Analog Audio Output -
28
CH6 OUT - Channel 6 Analog Audio Output -
29
CH5 OUT GND Channel 5 OUT Ground
30
CH6 OUT GND Channel 6 OUT Ground
31
CH7 OUT + Channel 7 Analog Audio Output +
32
CH8 OUT + Channel 8 Analog Audio Output +
33
CH7 OUT - Channel 7 Analog Audio Output -
34
CH8 OUT – Channel 8 Analog Audio Output -
35
CH7 OUT GND Channel 7 OUT Ground
36
CH8 OUT GND Channel 8 OUT Ground
Table 2-6: Analog Audio Connector Pin Out
