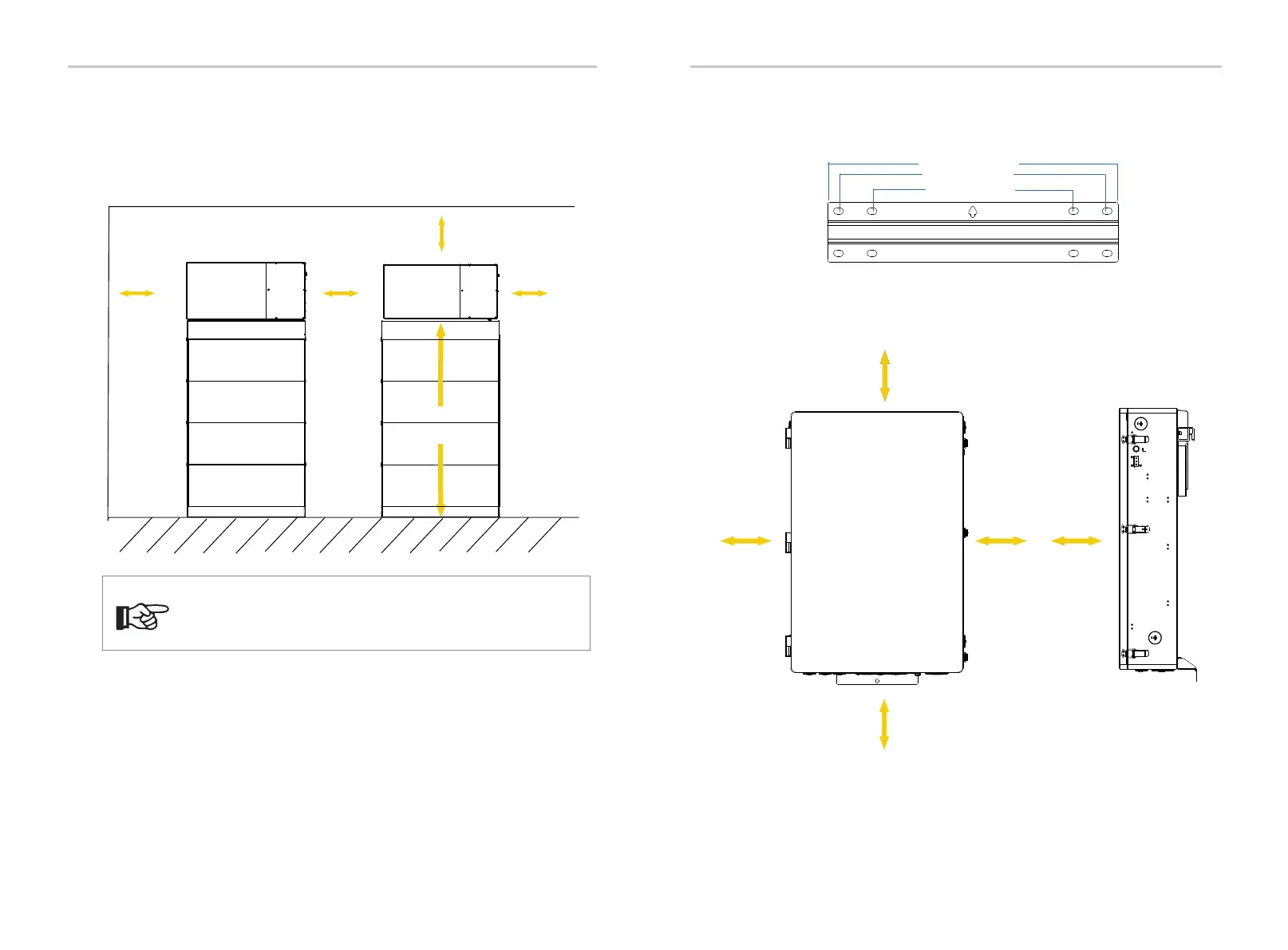

For multi-inverter installation, please reserve the space of 6 inch
(152.4 mm) at least between each left and right inverter and at least 19.68 inch
(500 mm) distance from the ceiling for optimal performance. If multiple inverter
are mounted in areas with high ambient temperatures, increase the clearances
between the inverter and batteries and ensure an adequate fresh-air supply if possible.
≥19.68 in
(500 mm)
≥6 in
(152.4 mm)
≥6 in
(152.4 mm)
≥55.43 in
(1408 mm)
≥6 in
(152.4 mm)
NOTE!
In case of wall-mounting, the distance from base to ground is
decided according to the local regulations.
SmartBox space requirement
To ensure good heat dissipation and convenient disassembly of the EV-SB, the
minimum clearance around the EV-SB shall not be less than the following values, as
shown below.
Mounting bracket anchoring details
Please refer to the local building codes for actual anchoring conditions.
≥19.68 in
(500 mm)
≥11.81 in
(300 mm)
≥11.81 in
(300 mm)
≥19.68 in
(500 mm)
≥19.68 in
(500 mm)
Site Requirements and Pre-installation Guidance Site Requirements and Pre-installation Guidance
19
18
17.4 in / 443 mm
16 in / 406 mm
12 in / 305 mm
