8. Wiring Connection on the Inverter
8.1 Overview of All Electrical Wiring Methods
All electrical wiring will be done in the wiring box, and all electrical wiring
methods are similar. Therefore this section will introduce all electrical wiring
steps and requirements.
62
EVERVOLT Hybrid inverter is equipped with four 1 inch conduit fittings which are
used for electrical wiring access. Four waterproof plugs have been installed on the
inverter at the factory. Before wiring connection, these waterproof plugs should be
removed by the operator.

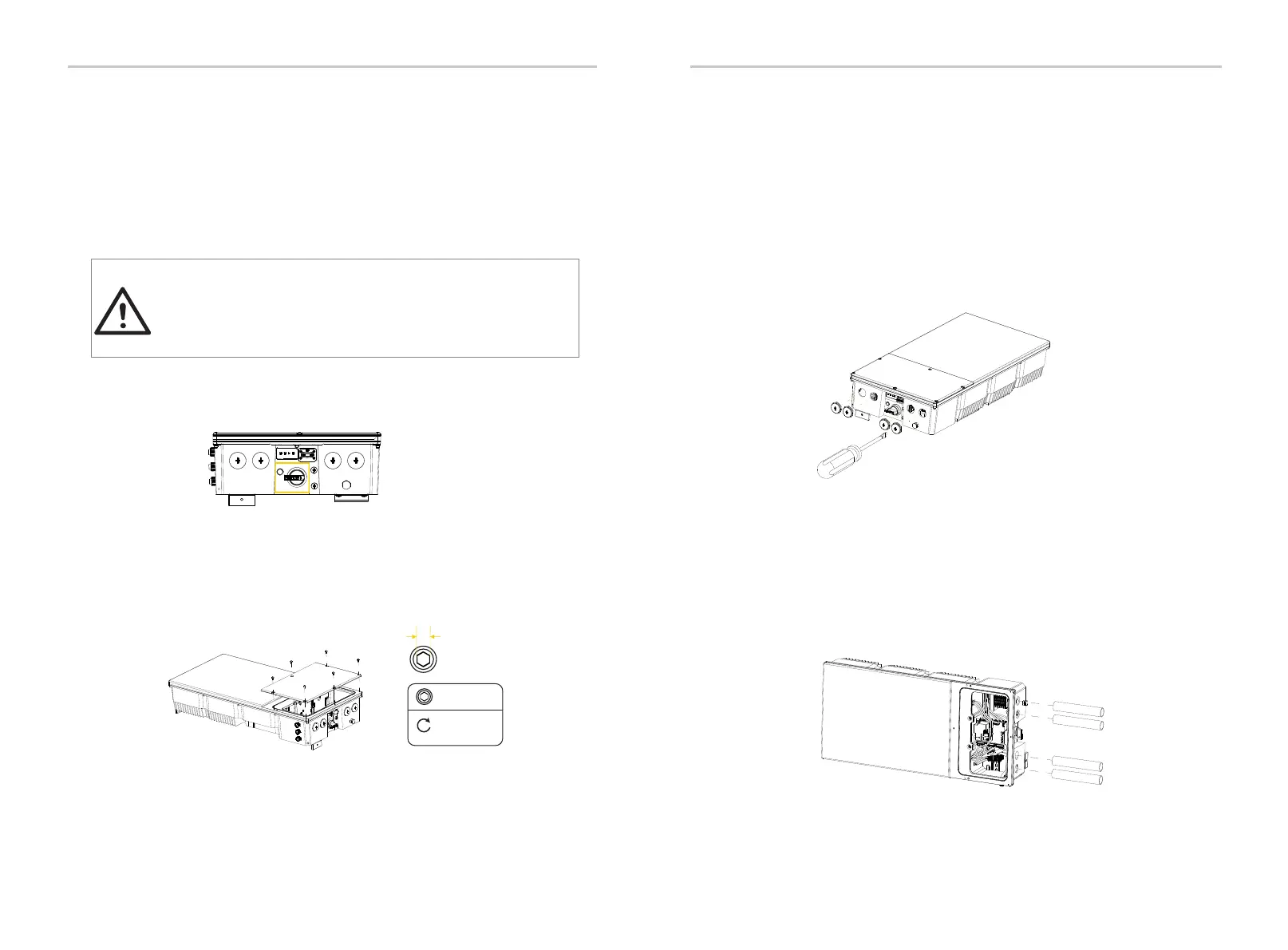

Step 1: Remove the waterproof plugs by placing a flat blade screwdriver in the slot
on the waterproof plug face and turning while gripping the nut on the inside of the
enclosure to ensure it does not slip.
Ÿ Removing wiring box waterproof plugs
Ÿ Opening the wiring box cover
Ÿ Conduit installation
Step 1: Turn DC switch to “OFF” position. Note that the cover cannot be
removed when the DC switch is in “ON” position.
WARNING!
Before inverter wiring connection, Make sure no live voltages are
present on PV input and AC output circuits, and make sure that
the DC switch is in “OFF” position, meanwhile, the breaker of
battery is in OFF position.
Step 2: Unscrew the nut from the waterproof plug and slip the conduit plug out of
the waterproof opening.
Step 3: Remove the 6 cover screws using Allen key, then disassemble the cover.
Step 2: Make sure the breaker of battery is in OFF position.
M5
17.7 lbf.in /
2.0N·m
3.0
m
m
Operator should use the conduits and plugs with standard size which must fit with
the holes on the right side of the inverter. Conduit fittings need to be water tight, and
an insulated type is preferred.
Once conduit and fittings are installed, wires should go through the conduit and be
locked into the corresponding terminals.
Wiring Connection on the Inverter
Wiring Connection on the Inverter
63
