9. Wiring Connection on the EV-SB
CAUTION!
Before EV-SB wiring connection, please make sure the EV-SB is
correctly wall-mounted and can be configured for cable entry
at the bottom and sides of the enclosure.
WARNING!
To avoid shock hazard, never power on the system without a
connection to Earth at EV-SB.
82

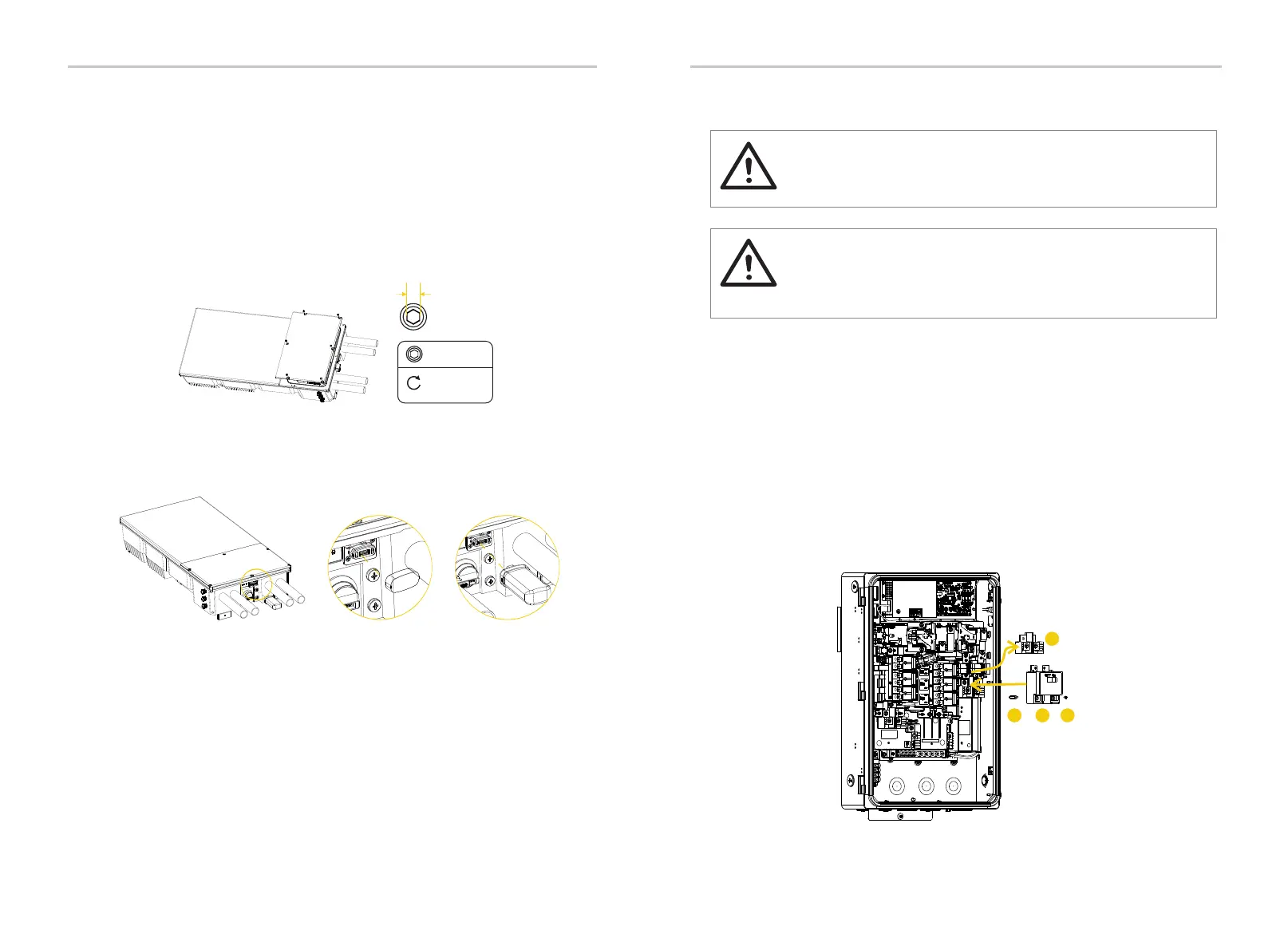

8.4.7 Monitoring Connection (Optional)
The inverter is equipped with monitoring port which can collect data and transmit it
to monitoring-website via an external monitoring data collector.
EVERVOLT includes a monitoring data collector which is PWIFI.
Installation instructions
1) Re-mount the cover of wiring box using Allen key before monitoring connection
by using cross screwdriver.
2) Remove the cover of monitoring port and plug the communication module into
the port.
M5
17.7 lbf.in /
2.0N·m
3.0
m
m
83
9.1 Install Breakers (Purchased separately)
Step 1: Loosen the original terminals using a 10 mm socket; remove the plastic
terminal block.
Step 2: Install the hexagonal support columns using a 10 mm socket with a
torque of 12 kgf.cm.
Step 3: Install the main breaker. And fasten it with M4*12 screw, with a torque of
Step 4: To cover the main breaker’s plastic safety cap.
12 kgf.cm.
Install a main breaker
Ÿ
1
2 3 4
