EVERVOLT EVHB-I7 - Page 45

Wiring Connection on the Inverter
Wiring Connection on the EV-SB
84
85

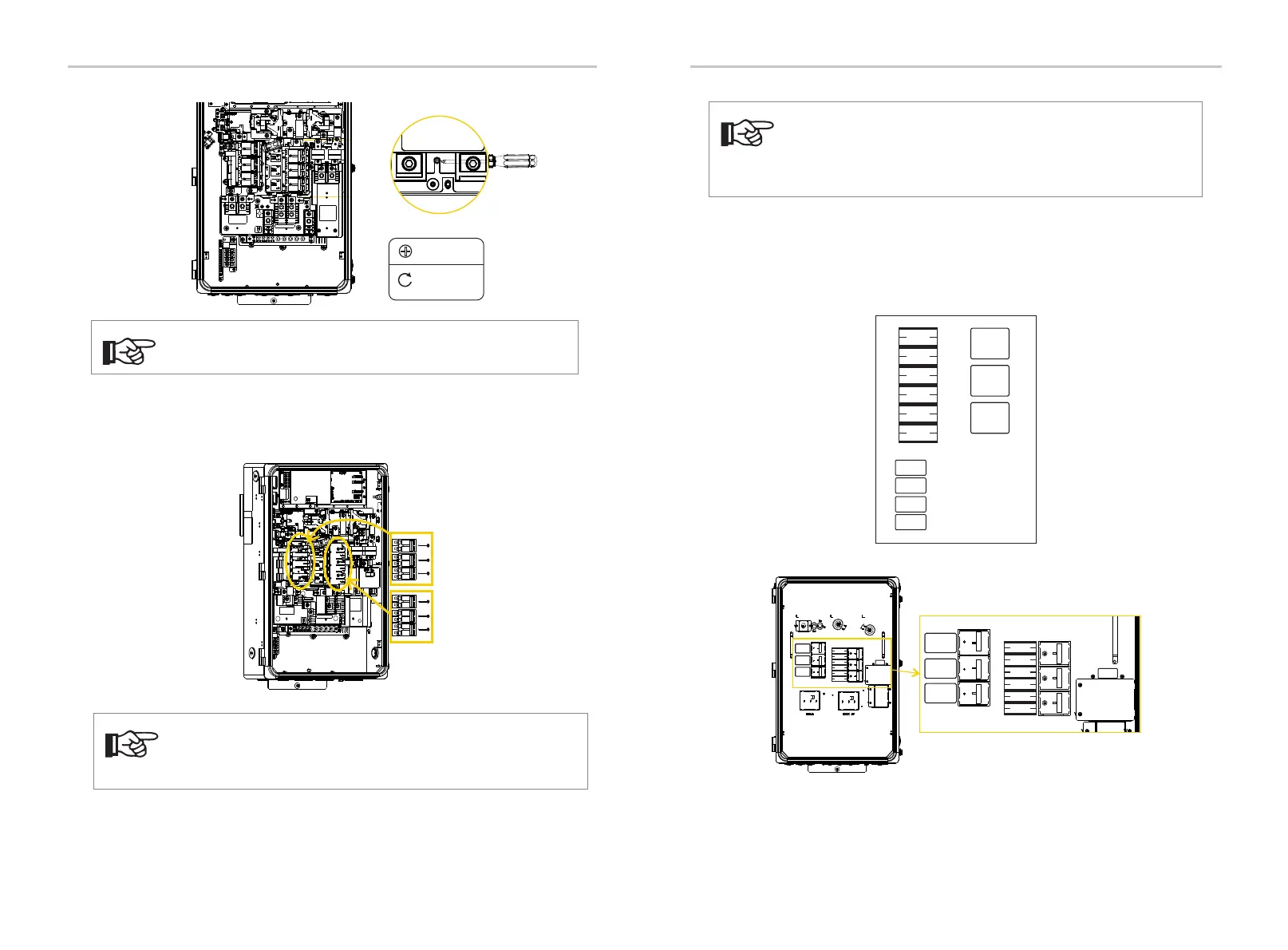

Step 2: Use a Phillips screwdriver to tighten the self-tapping screws on the
circuit breaker with a torque of 13 lb-in. (#5-20*2 7/8 in. self-tapping screw)
NOTE!
After installing the main breaker, lugs feed opposite bus.
M4
10.4 lbf.in /
1.2 N·m
Step 1: Install the breaker.
Install branch circuit breakers
Ÿ
NOTE!
Breaker and screws should be purchased separately.
Back-feed breaker requires hold-down kit
EATON Cat. No. BRHDK125.
NOTE!
Install the following appropriate SE Barrier Kit for Service Entrance
Main Breakers and Parallel Energy Source when required.
#TICSR300 when using UL Type CSR, BW, BWH or CSH Main Breakers.
#TIMCB3/0 when using UL Type BR, HQP or CH Main Breakers.
A
B
1
A
B
2
A
B
3
A
B
4
A
B
5
A
B
6
WARNING
POWER SOURCE
DO NOT RELOCATE THIS
OVERCURRENT DEVICE
OUTPUT CONNECTION
WARNING
POWER SOURCE
DO NOT RELOCATE THIS
OVERCURRENT DEVICE
OUTPUT CONNECTION
WARNING
POWER SOURCE
DO NOT RELOCATE THIS
OVERCURRENT DEVICE
OUTPUT CONNECTION
SERVICE
INTERRUPTOR
DE ACOMETIDA
DISCONNECT
A
B
1
A
B
2
A
B
3
A
B
4
A
B
5
A
B
6
WARNING
POWER SOURCE
DO NOT RELOCATE THIS
OVERCURRENT DEVICE
OUTPUT CONNECTION
WARNING
POWER SOURCE
DO NOT RELOCATE THIS
OVERCURRENT DEVICE
OUTPUT CONNECTION
WARNING
POWER SOURCE
DO NOT RELOCATE THIS
OVERCURRENT DEVICE
OUTPUT CONNECTION
SERVICE
INTERRUPTOR
DE ACOMETIDA
DISCONNECT
Paste labels
Ÿ
Paste the attached label in the appropriate place as follows.
(Labels are in the accessory box.)
FOR SERVICE EQUIPMENT, APPLY THE "SERVICE
DISCONNECT" LABLES ADJACENT TO
APPROPRIATE CIRUIT BREAKERS.
FOR OTHER PURPOSES, APPLY THE "MAIN
DISCONNECT" LABEL ADJACENT TO
APPROPRIATE CIRCUIT BREAKER.
WARNING
POWER SOURCE
DO NOT RELOCATE THIS
OVERCURRENT DEVICE
OUTPUT CONNECTION
SERVICE
SECTIONNEUR
DE BRANCHEMENT
DISCONNECT
SERVICE
INTERRUPTOR
DE ACOMETIDA
DISCONNECT
MAIN
SECTIONNEUR
PRINCIPAL
DISCONNECT
MAIN
INTERRUPTOR
PRINCIPAL
DISCONNECT
QUANT AU MATÉRIEL DE BRANCHEMENT,
APPOSEZ LES ETIQUETTES "SECTIONNEUR DE BRANCHEMENT"
A COTE DES DISJONCTEURS UTILISATIONS,
APPOSEZ L'ETIQUETTE "SECTIONNEUR PRINCIPAL”
A COTE DU DISJONCTEUR APPROPRIE.
PARA EQUIPOS DE SERVICIO, APLICAR LAS ETIQUETAS DE
“DESCONEXION DE SERVICIO" QUE SE ENCUENTRAN
AL LADO DE LOS INTERRUPTORES DE CIRCUITO ADECUADOS.
PARA OTROS FINES, APLICAR LA ETIQUETA DE
“DESCONEXION PRINCIPAL" QUE SE ENCUENTRA
AL LADO DEL INTERRUPTOR DE CIRCUITO ADECUADO.
320204114400
A
B
1
WARNING
POWER SOURCE
DO NOT RELOCATE THIS
OVERCURRENT DEVICE
OUTPUT CONNECTION
WARNING
POWER SOURCE
DO NOT RELOCATE THIS
OVERCURRENT DEVICE
OUTPUT CONNECTION
A
B
6
A
B
2
A
B
3
A
B
4
A
B
5
