4.3 Installation Space Requirement

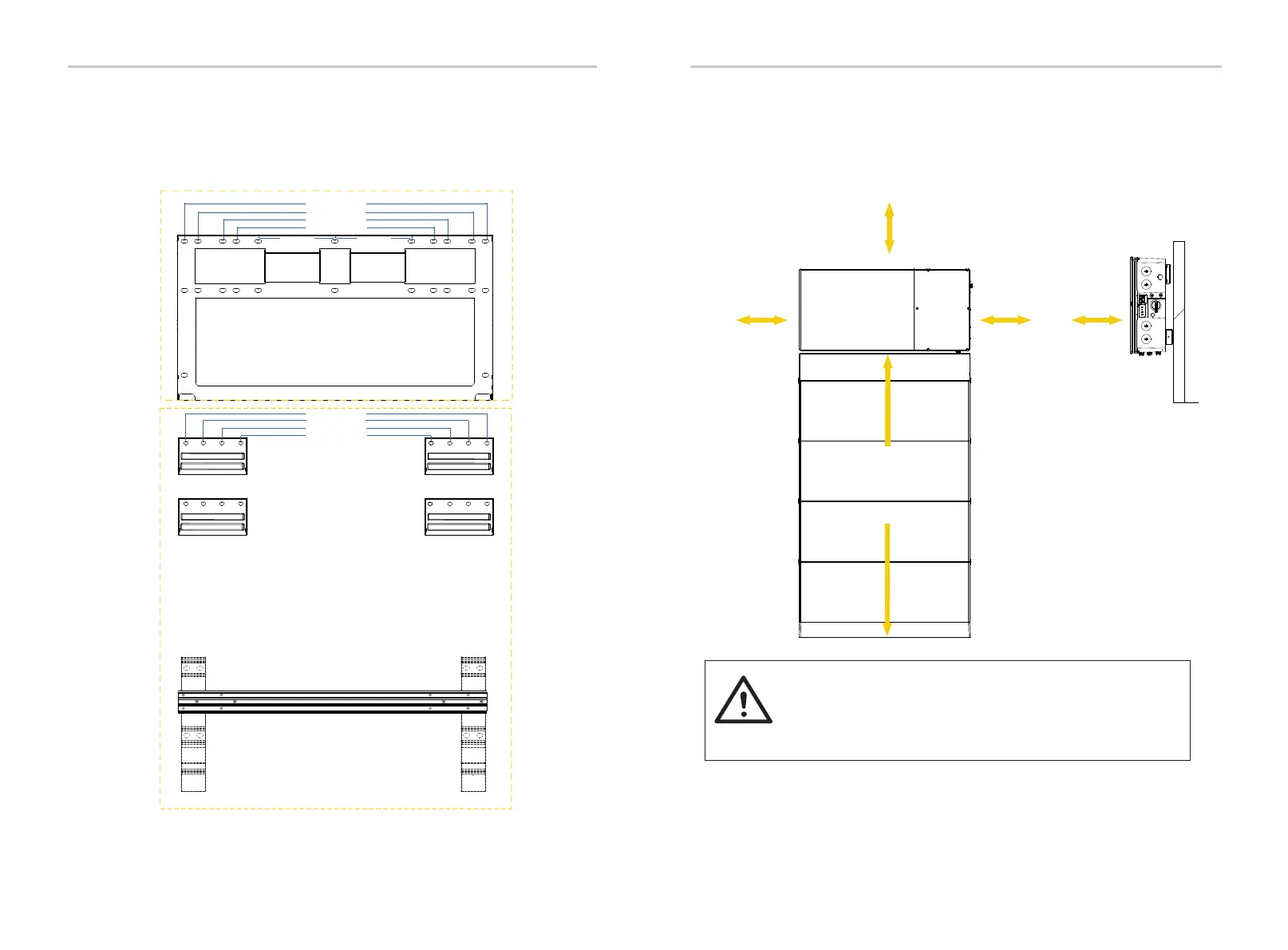

Inverter and battery space requirement
20 in / 508.0 mm
24 in / 609.6 mm
28 in / 711.2 mm
32 in / 812.8 mm
8 in / 207.2 mm
8 in / 207.2 mm
32 in / 812.8 mm
28 in / 711.2 mm
24 in / 609.6 mm
20 in / 508.0 mm
Battery
Inverter
To ensure good heat dissipation and convenient disassembly of the inverter and
battery, the minimum clearance around the inverter and battery shall not be less
than the following values, as shown below. The height above the ground marked
below is recommended assuming that four BATs are installed with floor-mounting.
≥19.68 in (500 mm)
≥6 in
(152.4 mm)
≥19.68 in
(500 mm)
≥6 in
(152.4 mm)
≥55.43 in
(1408 mm)
Site Requirements and Pre-installation Guidance Site Requirements and Pre-installation Guidance
17
16
WARNING!
UL9540A test results may lead to different spacing requirements
depending on the AHJ. Please check with your AHJ BEFORE
installation.
