ELECTRICAL AND IGNITION
ELECTRIC STARTER SERVICING

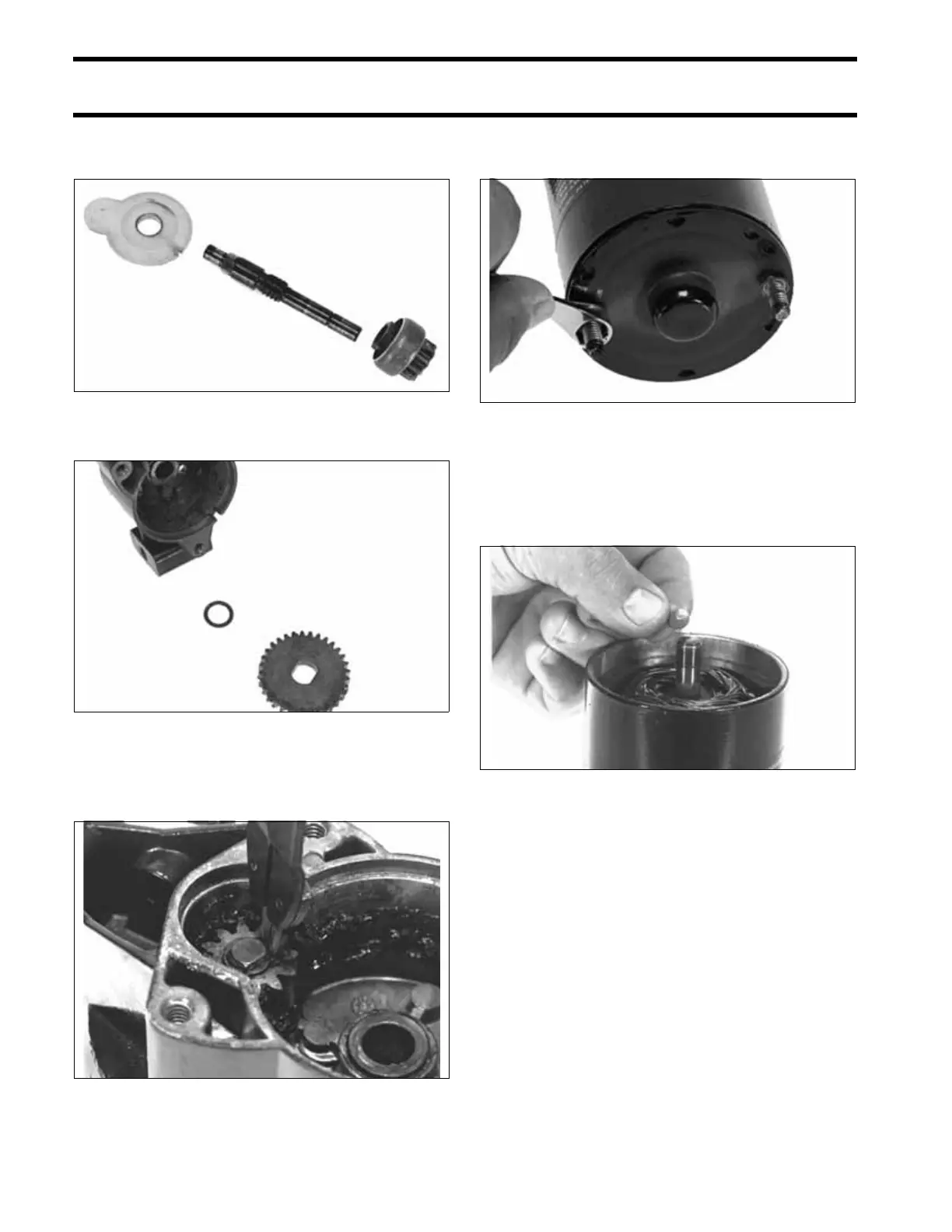

Remove pinion and plastic weather cover from
pinion shaft.
Remove the driven gear and thrust washer.
Using No. 2 external retaining ring pliers, remove
the retaining ring and drive gear from the armature
shaft.
Remove the two thru-bolts. Mark the end cap ori-
entation, and remove the cap.
Gently tap the starter frame with a rubber mallet to
loosen it.
Find the insulator cap (end of the shaft or inside
the end cap). Inspect and replace, if necessary.
