Evinrude E-TEC E150DPXSCF - Default Chapter; Service Charts

GEARCASE
SERVICE CHARTS
289
13
SERVICE CHARTS

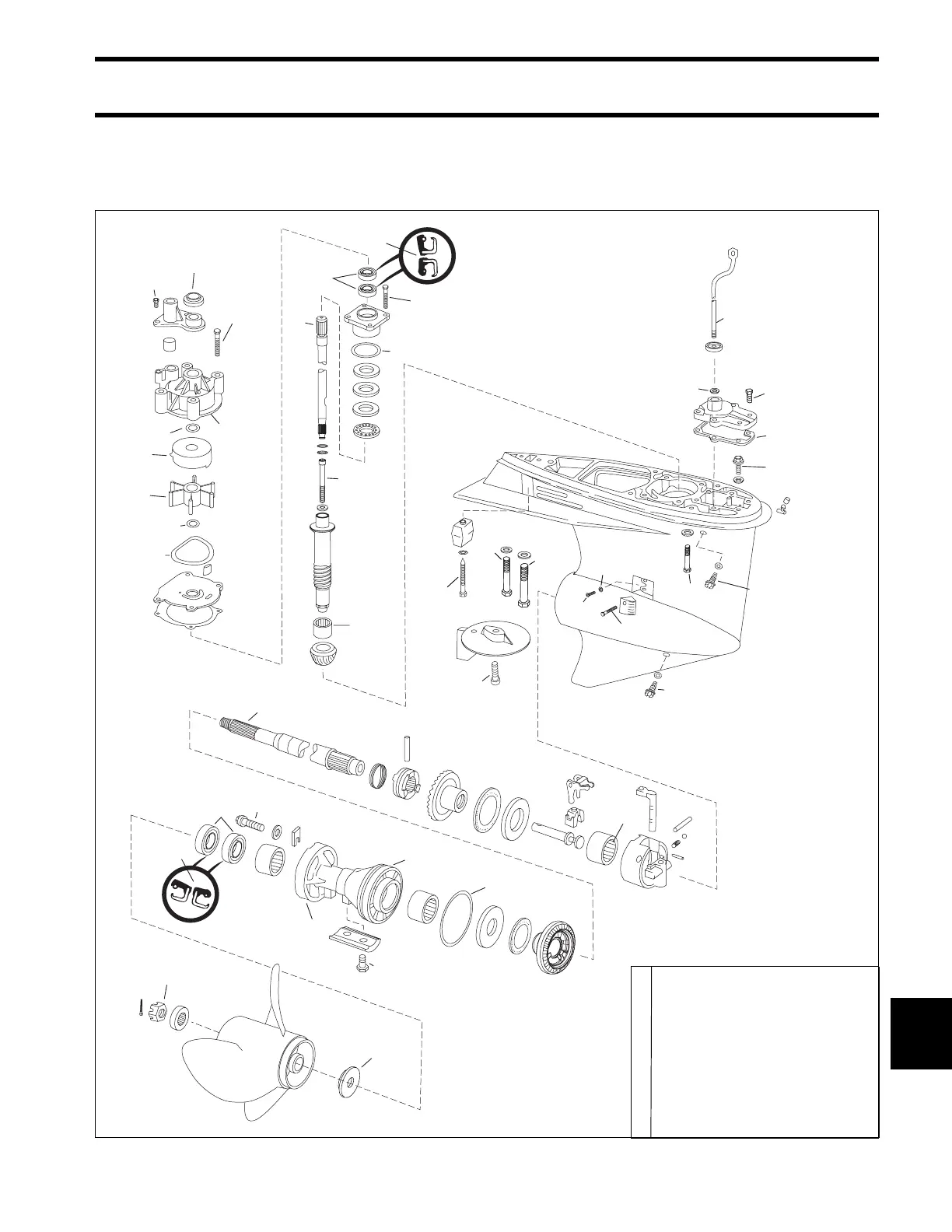

V4 20 IN. STANDARD ROTATION “S2”-TYPE GEARCASE
B
B
E
B
B
C
A
A
B
C
B
D
B
B
A
B
B
A
B
B
B
108-132 In. lbs.
(12-15 N·m)
18-20 Ft. lbs.
(24-27 N·m)
35-40 Ft. lbs.
(47-54 N·m)
24-36 In. lbs.
(3-4 N·m)
60-84 In. lbs.
(7-9.5 N·m)
120-144 In. lbs.
(13.5-16.5 N·m)
G
60-84 In. lbs.
(7-9.5 N·m)
26-28 Ft. lbs.
(35-38 N·m)
60-84 In. lbs.
(7-9.5 N·m)
60-84 In. lbs.
(7-9.5 N·m)
60-84 In. lbs.
(7-9.5 N·m)
18-20 Ft. Lbs.
(24-27 N·m)
F
18-20 Ft. lbs.
(24-27 N·m)
26-28 Ft. lbs.
(35-38 N·m)
40-50 Ft. lbs.
(54-68 N·m)
B
B
C
A
A
A
14-18 In. lbs.
(1.5-2 N·m)
X
G
A
B
120-144 In. lbs.
(13.5-16.5 N·m)
37-41 Ft. lbs.
(50-56 N·m)
A
A
006595
A Triple-Guard Grease
B Gasket Sealing Compound
C Adhesive 847
D Moly Lube
E Red Ultra Lock
F Blue Nut Lock
G Needle Bearing Grease
J Gearcase Lubricant
X See Service Manual Text
