390
TRIM AND TILT
SERVICING–SINGLE PISTON SYSTEM

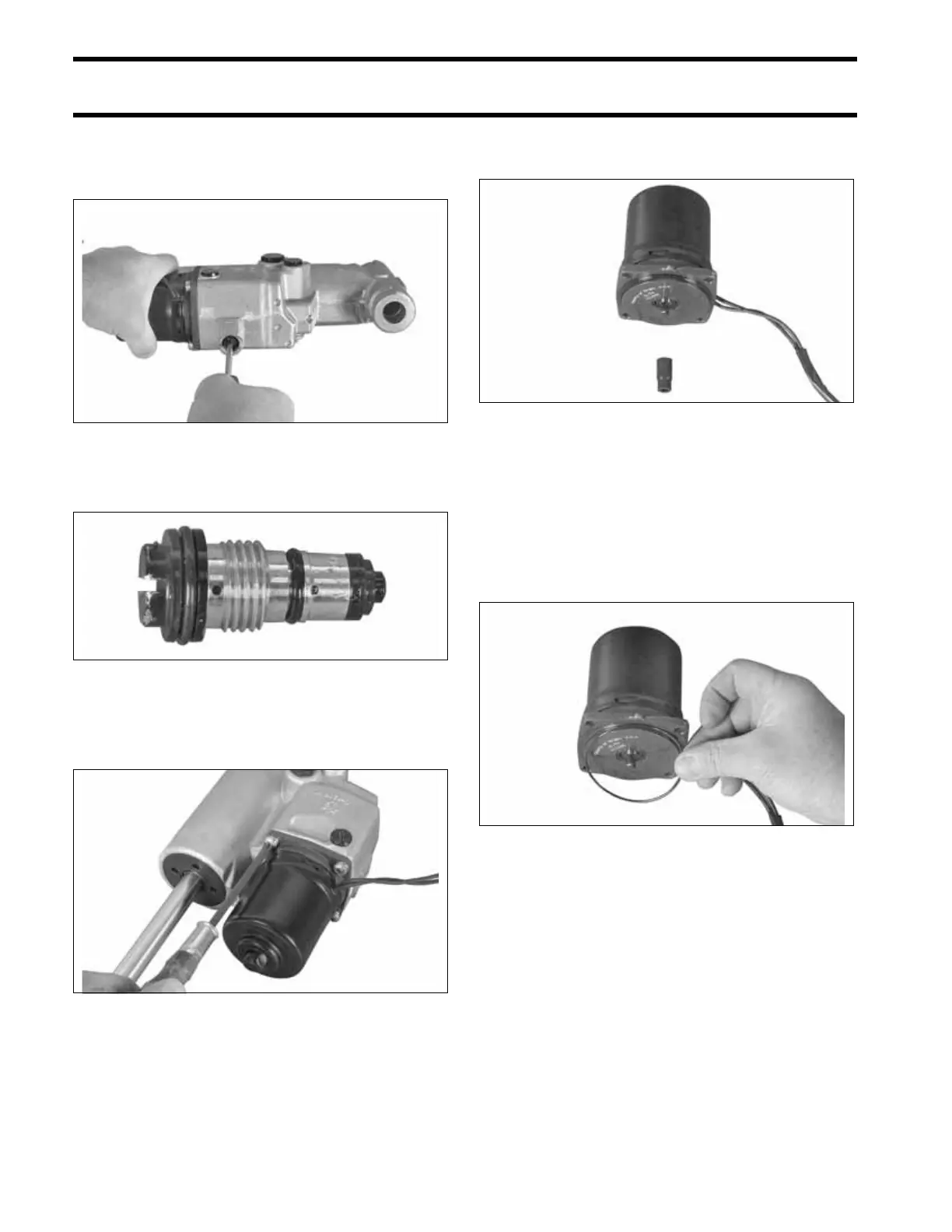

Slowly remove the manual release valve. There
may be pressure behind the valve—wear safety
glasses.
Inspect the manual release valve. Discard the
O-rings on the housing.
Remove the four large motor flange retaining
screws. Remove the motor and discard O-ring,
screws, and washers.
Remove drive coupler from either the motor or the
pump assembly.
Assembly
IMPORTANT: Use only Evinrude/Johnson Bio-
degradable TNT Fluid to fill the hydraulic system.
Install drive coupler in pump assembly.
Install a new motor O-ring.
004285
004284
004282
004281
004280
