FUEL SYSTEM

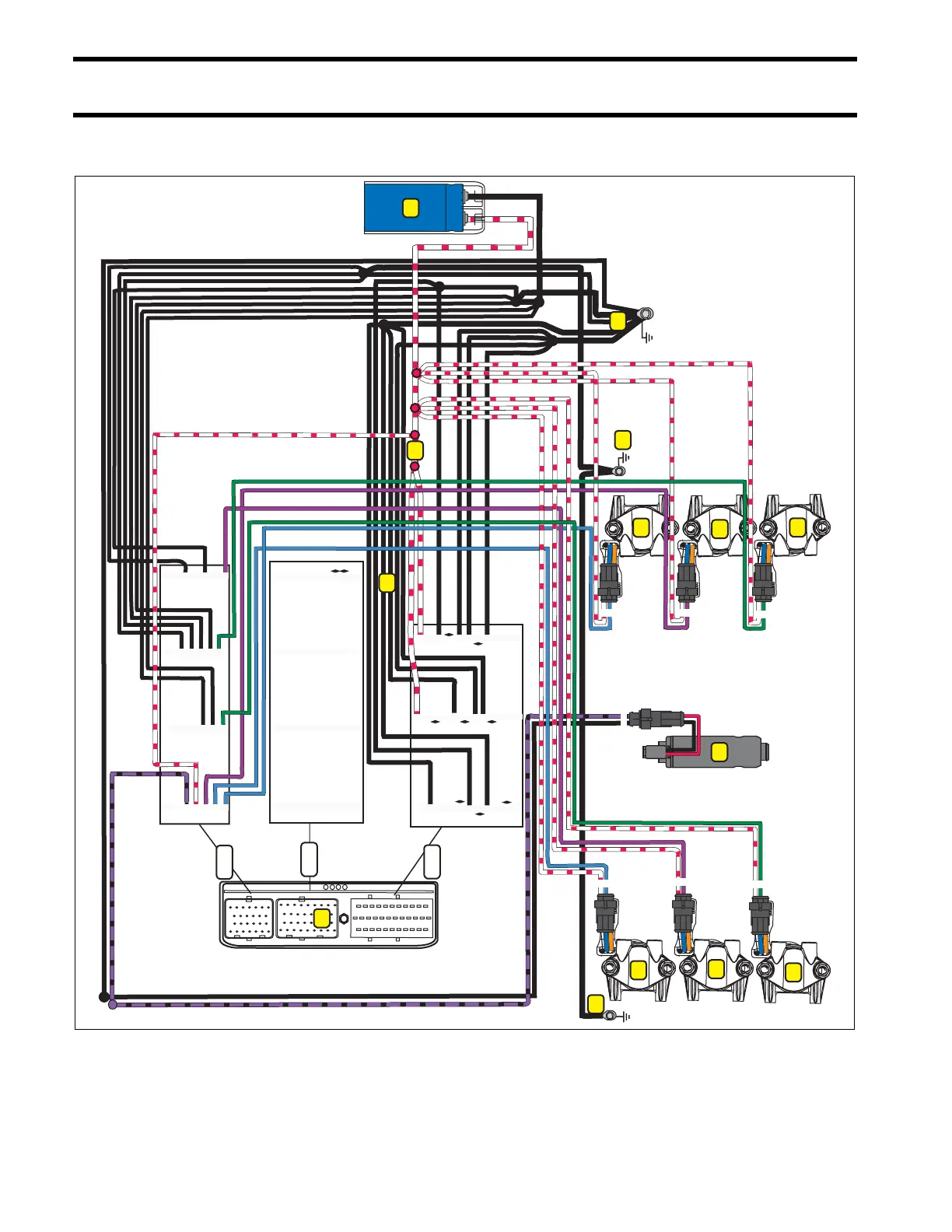

FUEL SYSTEM CIRCUIT DIAGRAM
FUEL SYSTEM CIRCUIT DIAGRAM
1.
2.
3.
4.
Injector No. 1
Injector No. 2
Injector No. 3
Injector No. 4
5.
6.
7.
8.
Injector No. 5
Injector No. 6
EMM
55 V circuit (white/red)
9.
10.
11.
12.
Capacitor
Grounds (neg)
Fuel Injector grounds
High pressure fuel pump
18 19 20 21 22 23 24 25
10 11 12 13 14 15 16 17
20 21 22 23 24 25 26 27 28 29
11 12 13 14 15 16 17 18 19
1 2 3 4 5 6 7 8 9 10
1 2 3 4 5 6 7 8 9
9
20 21 22 23 24 25 26
26 27 28 29 30 31 32 33 34
2
4
1 3
J2
J1-B
J1-A
1 2 3 4 5 6 7
8 9 10 11 12 13
14 15 16 17 18 19
5
6
1 2 3
1 2 3
1 2 3
1 2 3
1 2 3
1 2 3
2 1
1
2
3
4
5
6
7
8
10
11
12
10
10
