Evinrude E-TEC E150DPXSCF - Page 173

FUEL SYSTEM
SERVICE CHART
171
8

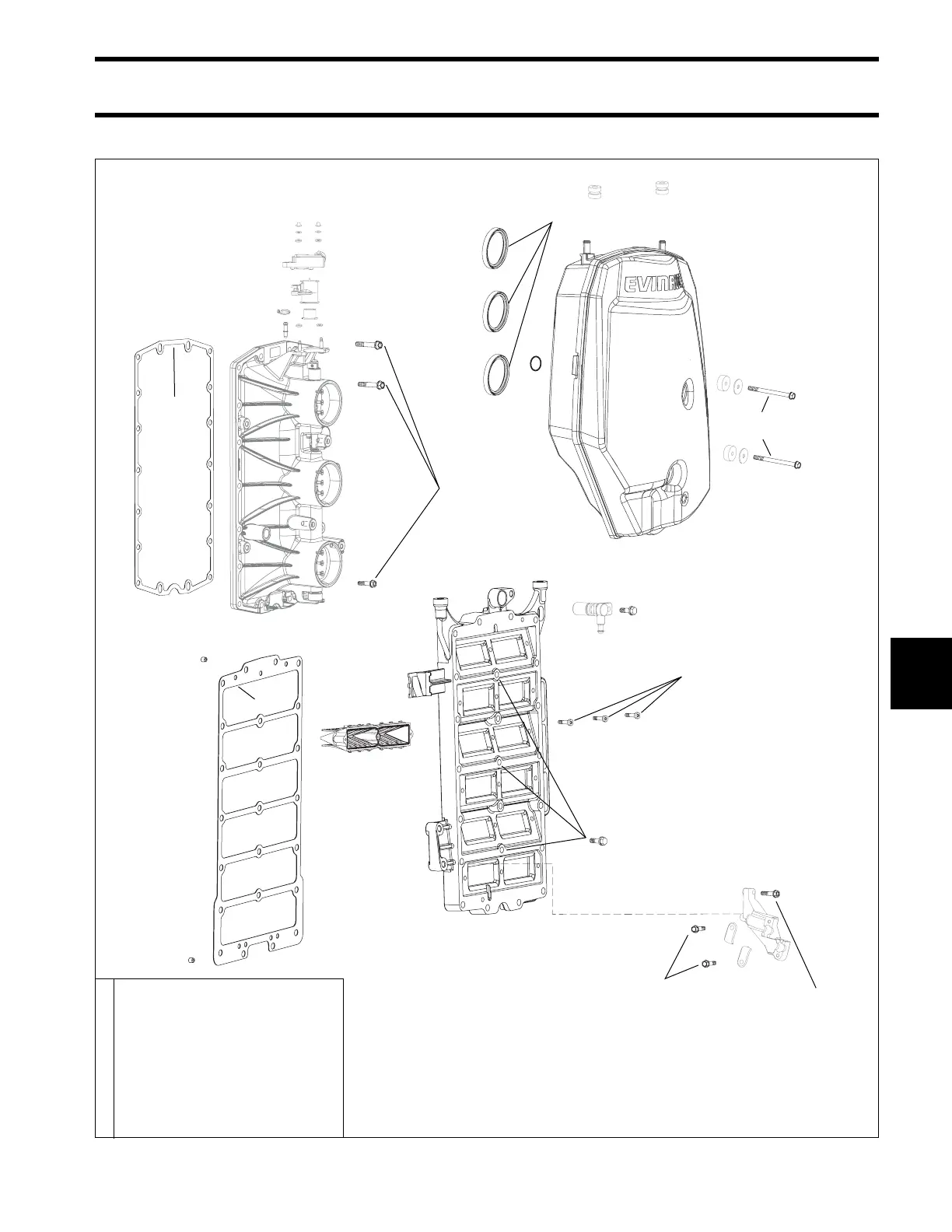

REED PLATE ASSEMBLY AND THROTTLE BODY
30-42 in. lbs.
(3-5 N·m)
60-80 in. lbs.
(7-9 N·m)
60-80 in. lbs.
(7-9 N·m)
72-96 in. lbs.
(8-11 N·m)
F
96-120 in. lbs.
(11-13.5 N·m)
10-18 in. lbs.
(1-2 N·m)
96-120 in. lbs.
(11-13.5 N·m)
C
Bond seals
to air silencer
F
K
B
B
A Triple-Guard Grease
B Gasket Sealing Compound
C Adhesive 847
D Moly Lube
E Red Ultra Lock
F Blue Nut Lock
G Needle Bearing Grease
K Purple Screw Lock
004941
Important:: DO NOT lubricate
TPS to throttle shaft surface
Start at center and use
a spiral torque pattern
