234
POWERHEAD

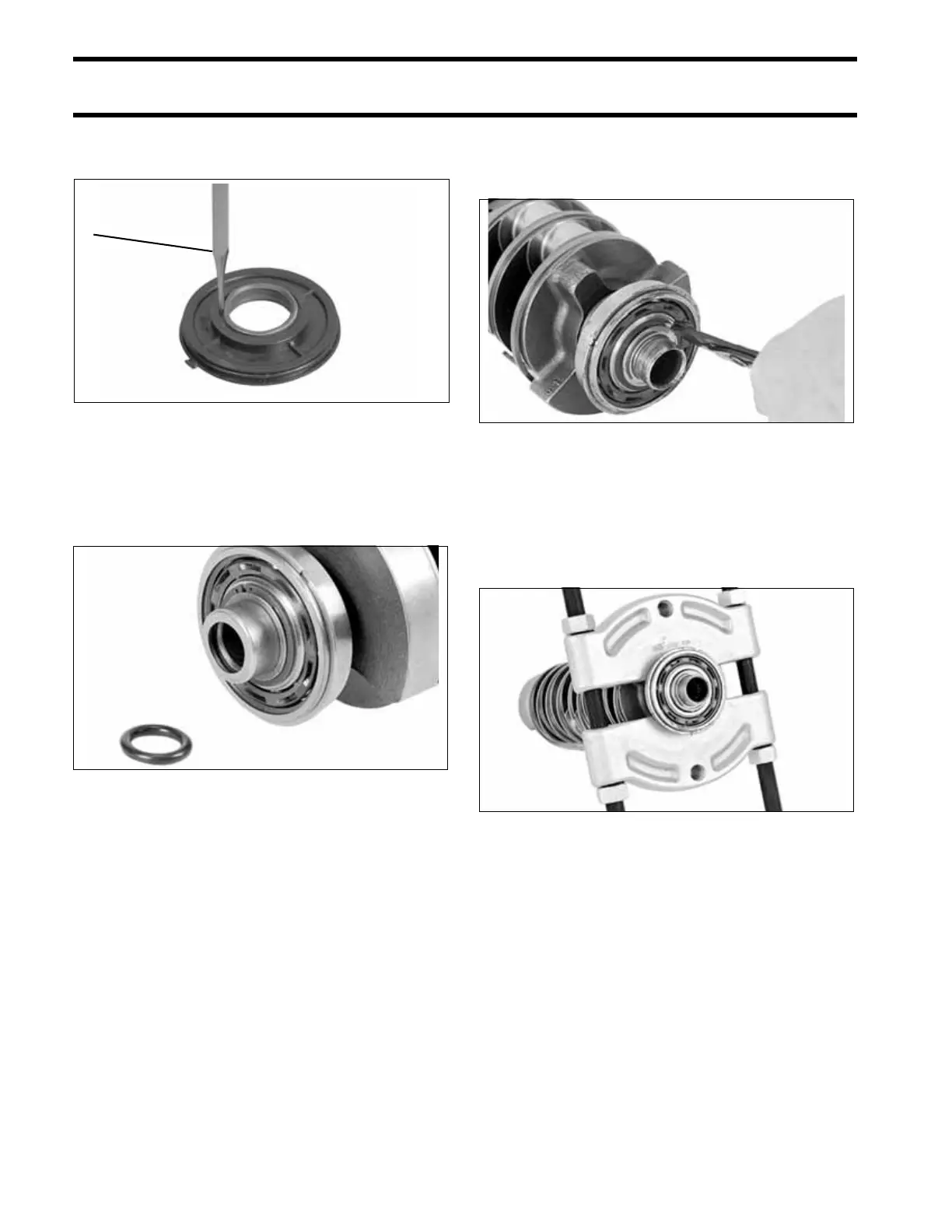

POWERHEAD DISASSEMBLY
Use a punch to remove the housing seal. Discard
seal.
Inspect housing and replace if necessary.
Remove O-ring from crankshaft sleeve and
inspect it. Replace the O-ring if it is not in good
condition.
Inspect the crankshaft sleeve and replace if nec-
essary. To remove the sleeve, use Slide Hammer,
P/N 432128, and Large Puller Jaws, P/N 432129.
Remove the lower main bearing only if it needs to
be replaced. Use external retaining ring pliers to
remove the lower bearing retaining ring.
IMPORTANT: If the lower main bearing is
removed from the crankshaft, it must be dis-
carded. DO NOT reuse it.
Use a bearing separator to support the bearing,
and press off the crankshaft.
1. Punch 002053
29019
1
24384
24383
