Evinrude E-TEC E150DPXSCF - Page 438

A
B
C
5
1
2
3
4
5
1
2
3
4
004839

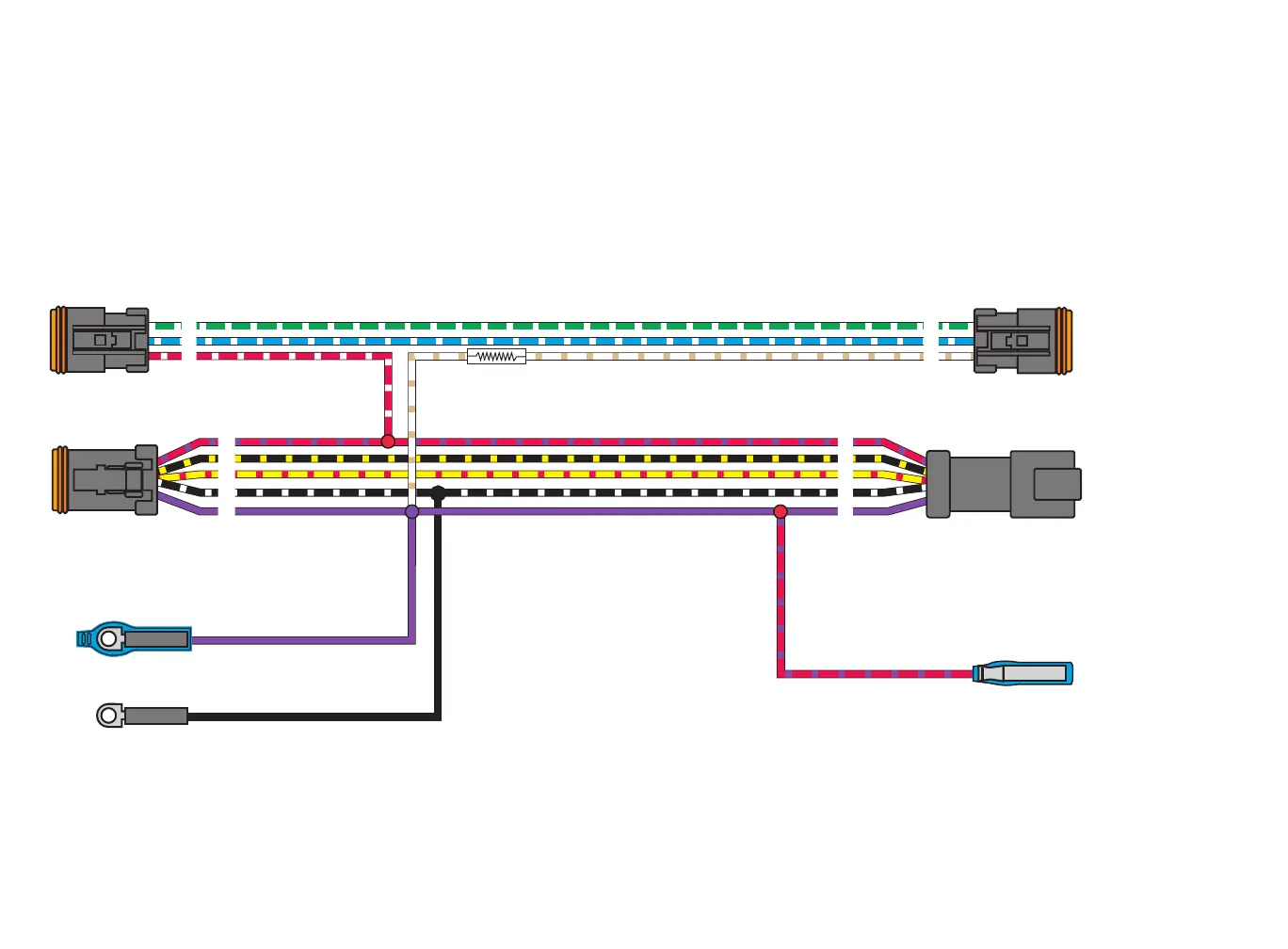

CANbus Keyswitch/TNT Wiring Harness
Ground (B-)
A. Trim down
B. Trim up
C. Trim sender
5. Battery + (12V)
1. Stop circuit
2. Start solenoid
3. Ground (B-)
6. Choke
4. Switched B+ (12V)
A
B
C
Switched B+ (12V)
47 ohm 1/4 watt resistor
10 Amp Fused
B+ (12V)
