CRANK ARMS ALIGNMENT
REAR WHEEL & CHAIN ADJUSTMENT

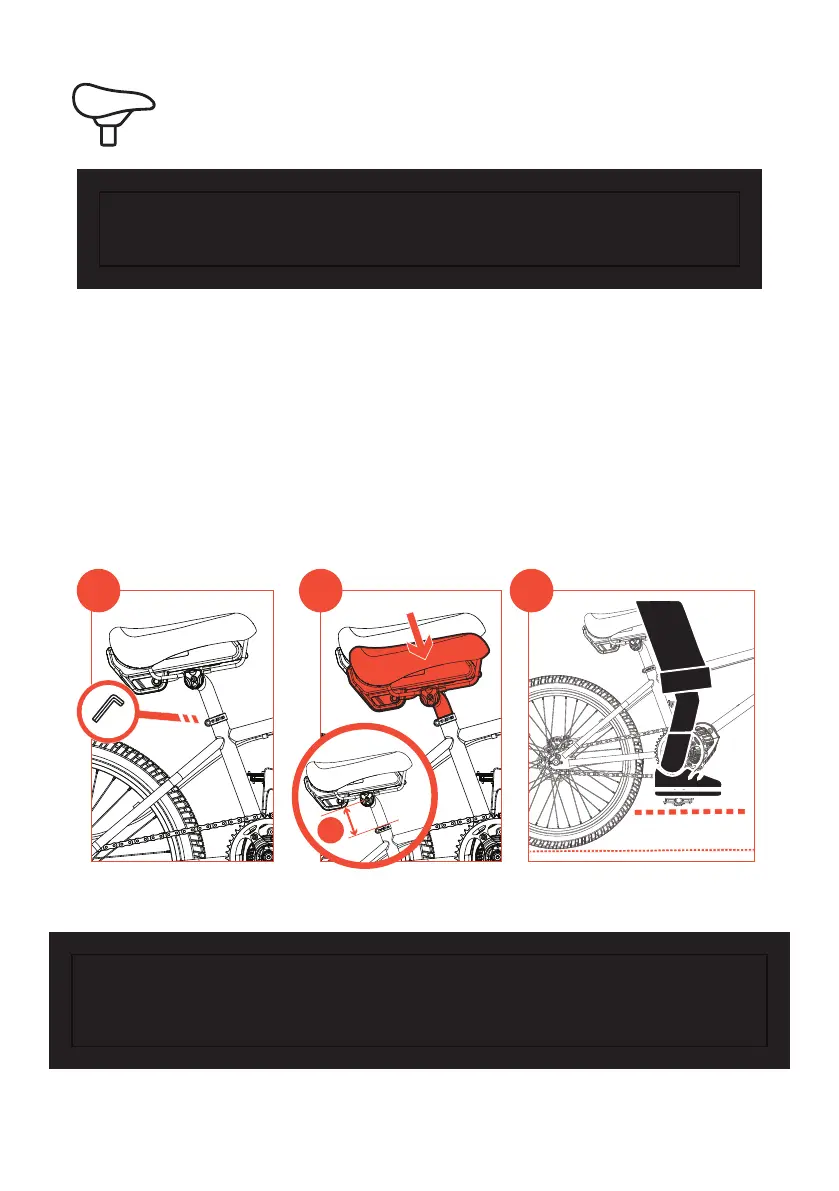

SADDLE ADJUSTMENTS HEIGHT
1. Use a hex tool to loosen the seat post clamp screw.
2. Lower the seat to its lowest position. Inside the Motor Bracket is a stop
to prevent the seat post from lowering beyond its lowest position. Once
resistance is felt on the seat post, do not lower any further. This distance
can be measured from the top of the Seat Post Clamp to the center of the
Saddle Rail (A). This distance should be 85mm
3. Place heel of foot on pedal with foot parallel to the ground.
NOTE: SEAT POST CONTAINS ELECTRONIC CABLING. FAILURE
TO ADJUST PROPERLY AS OUTLINED BELOW OR OUTSIDE THE
ACCEPTABLE RANGE MAY RESULT IN DAMAGE TO YOUR BIKES
ELECTRONIC SYSTEM.
2
3
1
A
NOTE: SEAT POST MUST BE INSERTED AT LEAST TO THE MINIMUM
INSERTION MARK STAMPED ON THE LOWER PART OF THE POST.
IF NO MINIMUM INSERTION MARK CAN BE FOUND, MAKE SURE AT
LEAST 3 IN, (7.6CM), OF THE POST IS INSIDE THE BICYCLE FRAME
TUBE.
