Ewellix THG - TLG Telemag Telescopic Pillar; Technical Data

40
THG/TLG/TLT

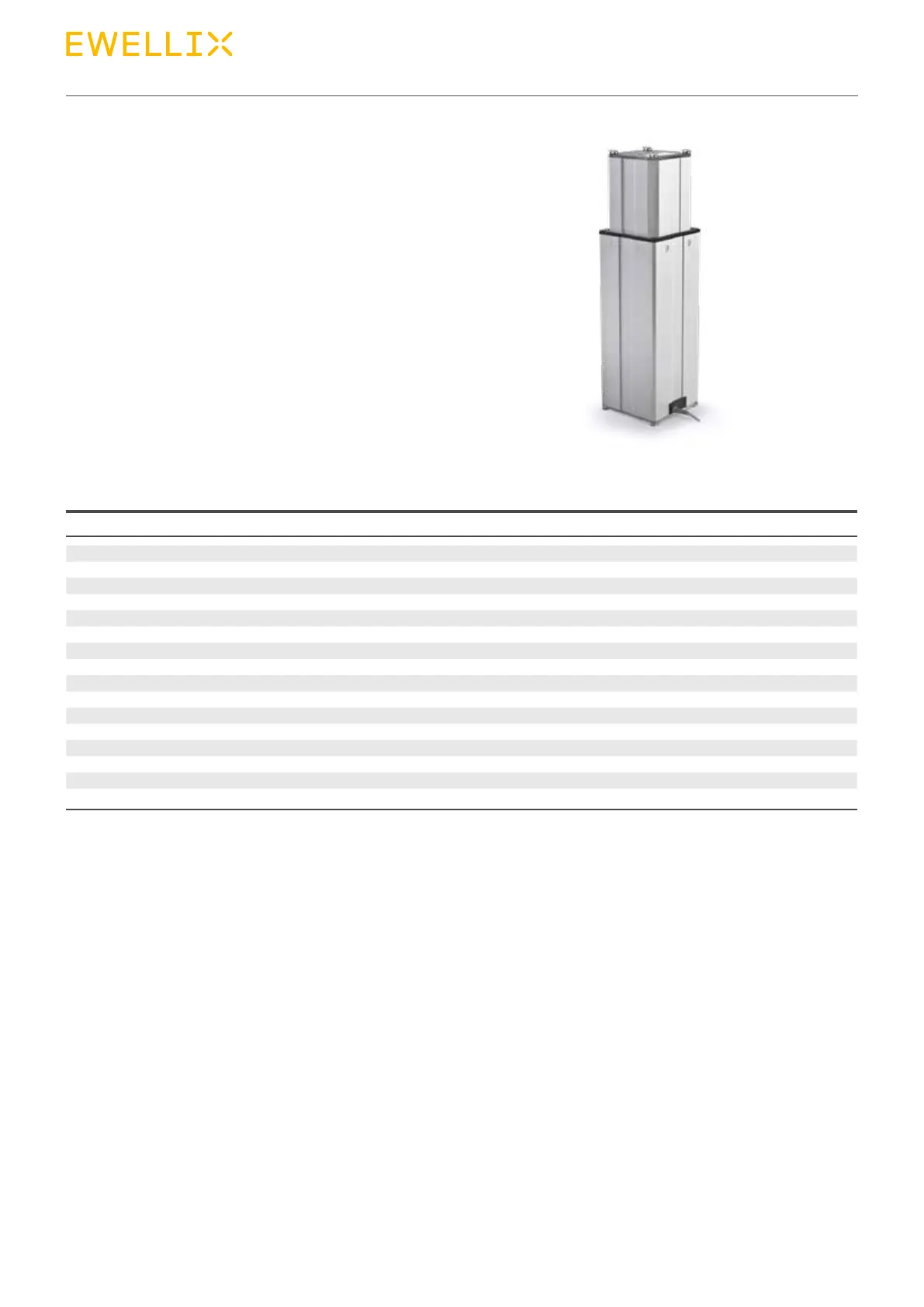

TLG
Telemag telescopic pillar
Technical data
Benets
• High bending load
• Powerful
Standards
• EN/IEC 60601–1
• UL 60601–1
1)
For details, please see bending load diagrams (⮑ page 42)
Unit TLG 10/11–A TLG 10–B TLG 10/11– C
Rated push load N 4 000 2 500 1 500
Rated pull load N 0 0 0
Bending load Nm up to 2 800
1)
up to 1 750
1)
up to 950
1)
Speed (full load to no load) mm/s 10 to 14 13 to 17 25 to 33
Telescopic pillar version # of section 2 or 3-section 2 or 3-section 2 or 3-section
Stroke mm 200 to 700 200 to 700 200 to 700
Retracted length mm S+180 S+180 S+180
Voltage V DC 24 24 24
Power W 156 156 156
Current A 6 6 6
Duty cycle: intermittent operation min. 1 min./9 min 1 min./9 min 1 min./9 min
Ambient temperature °C +10 to +40 +10 to +40 +10 to +40
Type of protection IP 30 30 30
Protection class – SELV SELV SELV
Type of control – electrical electrical electrical
Weight kg 15 to 30 15 to 30 15 to 30
220
190
101
15
Ø22
Ø11
200
170
101
Ø20
25
25
129
146
4 x M10/30
40 Nm
4 x M10/30
40 Nm
220
190
129
15
200
170
129
Ø11
Ø22
Ø11
Ø22
Stroke ±2
Retracted
length ±2
220
190
101
Ø22
Ø11
200
170
101
Ø20
25
25
129
146
163
4 x M10/30
40 Nm
4 x M10/30
40 Nm
220
190
146
15
200
170
146
15
Stroke ±2
Retracted
length ±2
