Design and function

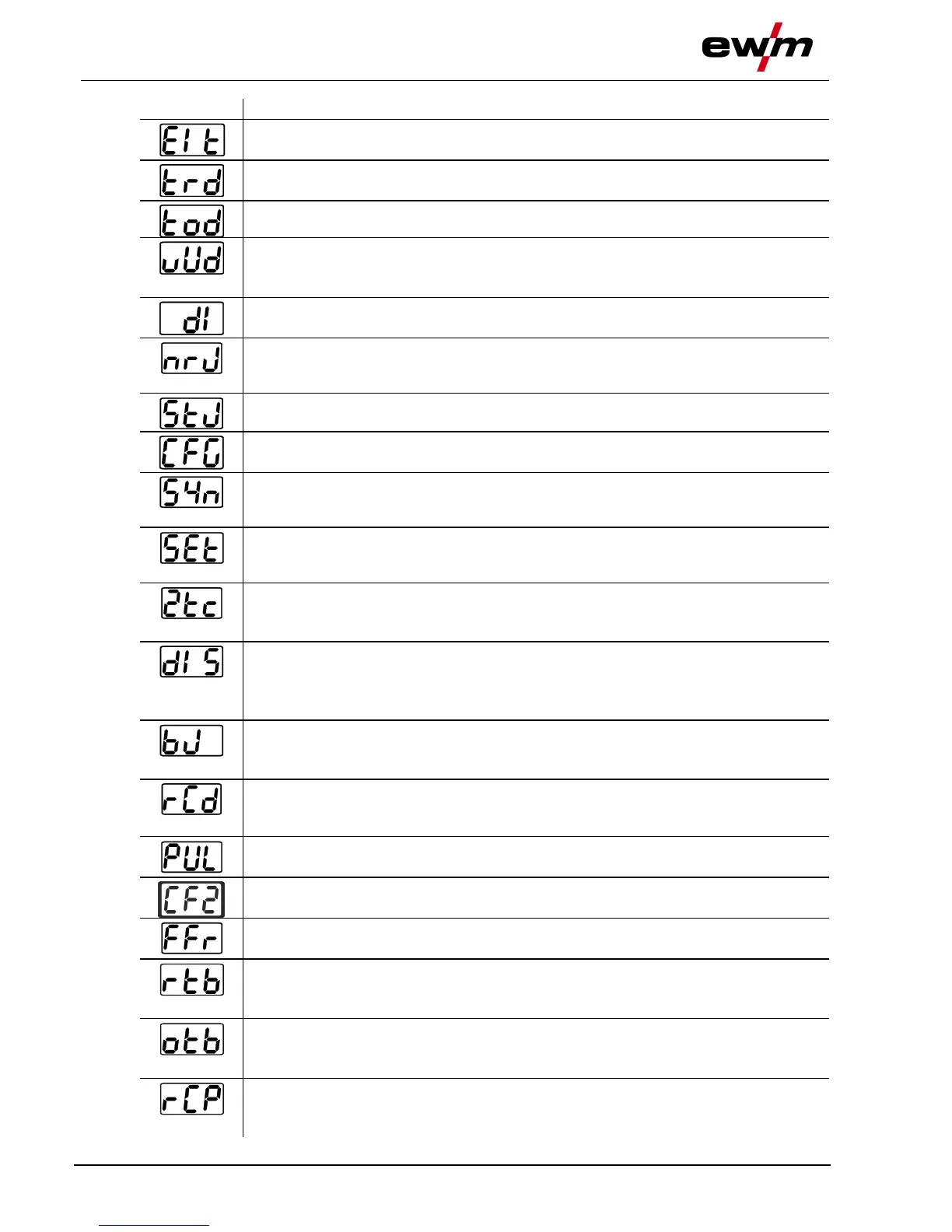

Menus and sub-menus on the machine control
099-004854-EW501
19.02.2014
Torch configuration menu
Set welding torch functions
Torch mode (factory setting 1)
Up-/Down speed
Increase value = rapid current change (factory setting 10)
Reduce value = slow current change
Setting the first increment
Setting: 1 to 20 (factory setting 1)
Get JOB number
Set maximum selectable jobs (setting: 1 to 128, factory setting 10).
Additional parameter after activating the BLOCK JOB function.
Start JOB
Set first JOB to get (setting: 129 to 256, factory setting 129).
Machine configuration
Settings for machine functions and parameter display
Operating principle
• on = synergic parameter setting (factory setting)
• off = conventional parameter setting
Welding current display (ignition, secondary, end and hotstart currents)
• Pro = welding current display as a percentage of the main current (factory setting)
• Abs = absolute welding current display
Non-latched operation (C version)
• on = on
• off = off (factory setting)
Setting for the primary setpoint value display
Defines the priority display for setpoint values:
• bld = panel thickness
• vol = welding voltage (factory setting)
RINT X12, JOB control for automation solutions
• on = on
• off = off (factory setting)
Power display switching (MMA)
• on = actual value display
• off = setpoint value display (factory setting)
Pulses in the upslope and downslope phases
The function can be switched on or off
Machine configuration (part two)
Settings for machine functions and parameter display
Ramp function Remote control RTF 1
The ramp function can be switched on and off
Kalottenbildung mit Remote control
• on = on (ex works)
• off = off
Tungsten balling (old variant)
• on = on
• off = off (ex works)
Welding current polarity switching
• on = polarity switching at the RT PWS 1 19POL remote control (ex works)
• off = polarity switching at the welding machine control
