eWON Flexy User Manual

Chapter 3
Base Unit Hardware Description

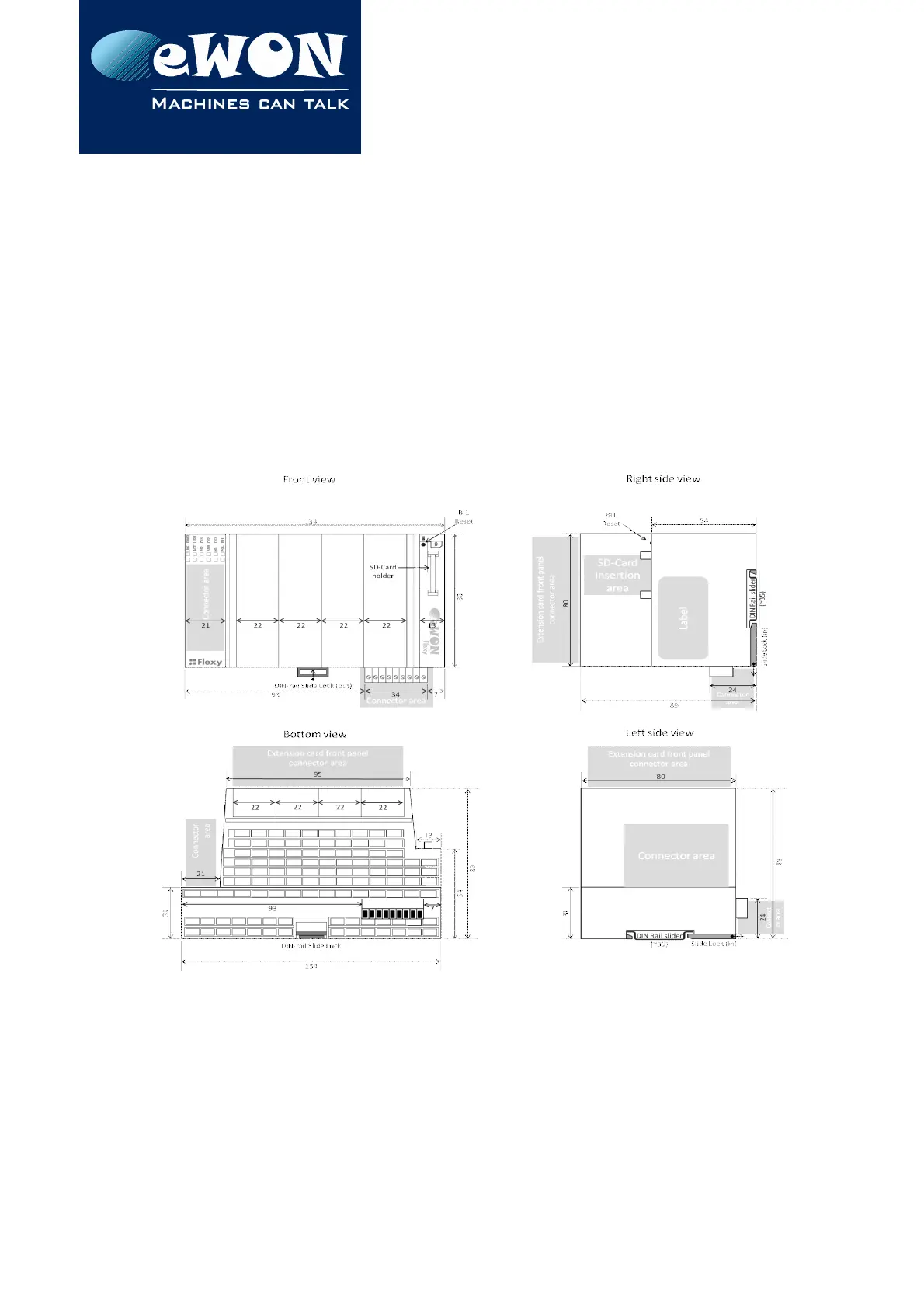

3.2. Mechanical Dimensions
Unit: Dimensions are in millimeters (mm).
Accuracy: Suited only for implementation drawings (rounded @ full mm).
Shaded areas show provisions of empty space that should be considered in the
implementation arrangement.
The provision of empty space in front of the slot fillers is for the connectors of Extension
Cards. Even if the application requires no Extension Card(s) you might plan the free space
anyhow, in case you need to add one or more later on.
