Chapter 4
Extension Cards
4.2. Extension Card Insertion
- Caution -
Please wait 30 seconds after powering off the equipment before inserting (or removing) an
Extension Card. This is to avoid possible damage to the Base Unit and Extension Card.

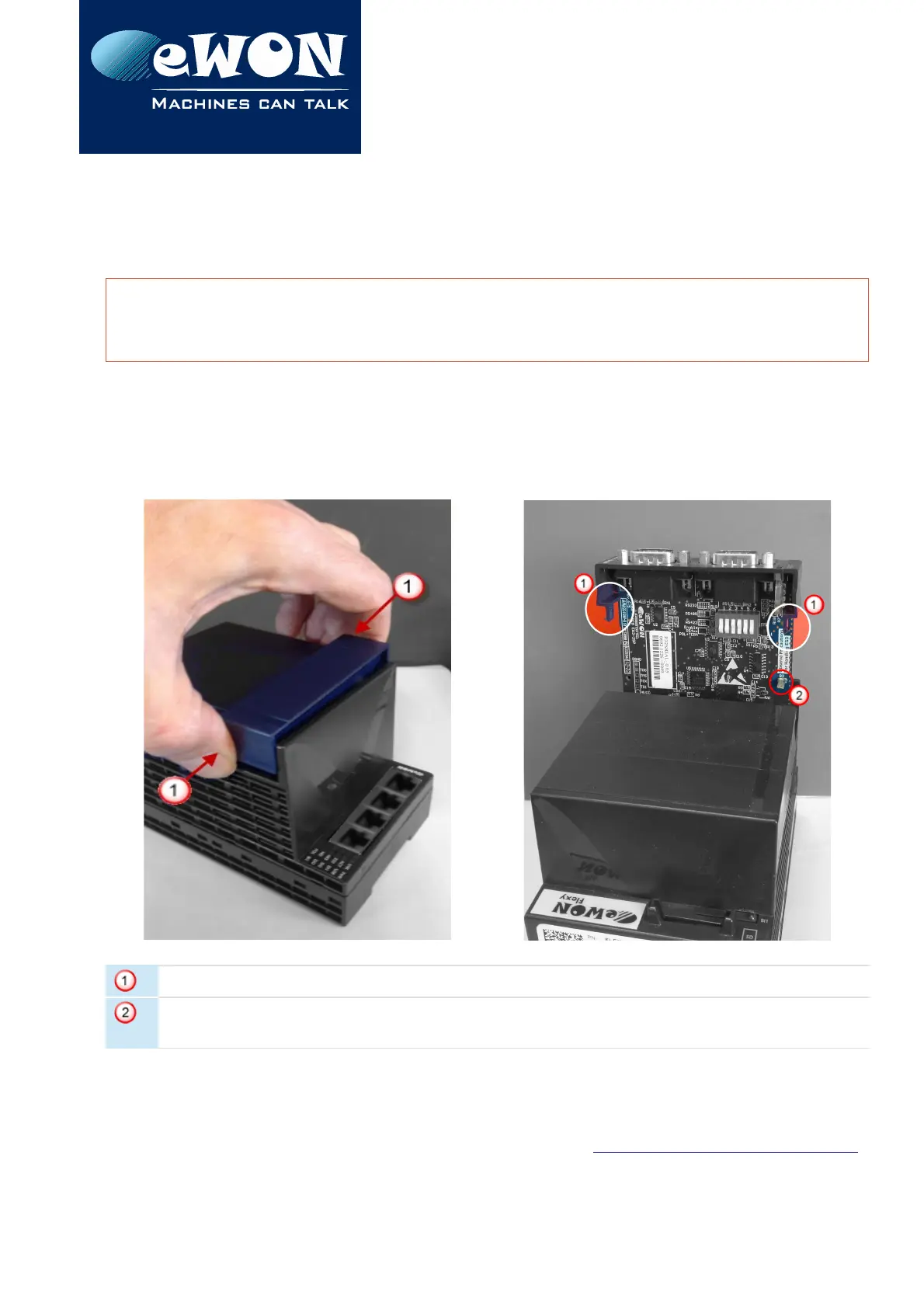

Remove the slot filler of the location where you want to insert the new card. To do this, press
on both ends of the cover, note that the hooks (1) are off-centered like shown on the
pictures.
Hooks to be pressed are off-centered – press while pulling upwards
This metal tag soldered on the PCB acts as mistake-proof security (mating stop in
housing)
Insert the Extension Card carefully and slide it down until the hook clicks. Make sure the
card is completely inserted. DO NOT insist if you feel some resistance when trying to insert
the card. It probably means you are trying to put it in a wrong slot. In such a case, check
slot compatibility of the relevant Extension Card. Refer to § #4.1.Base Unit Slot Compatibility.
Page 24 / 40 eWON Flexy - Base Units | IG 014
