Appendix A -
Connector Pinout & Related
Specifications

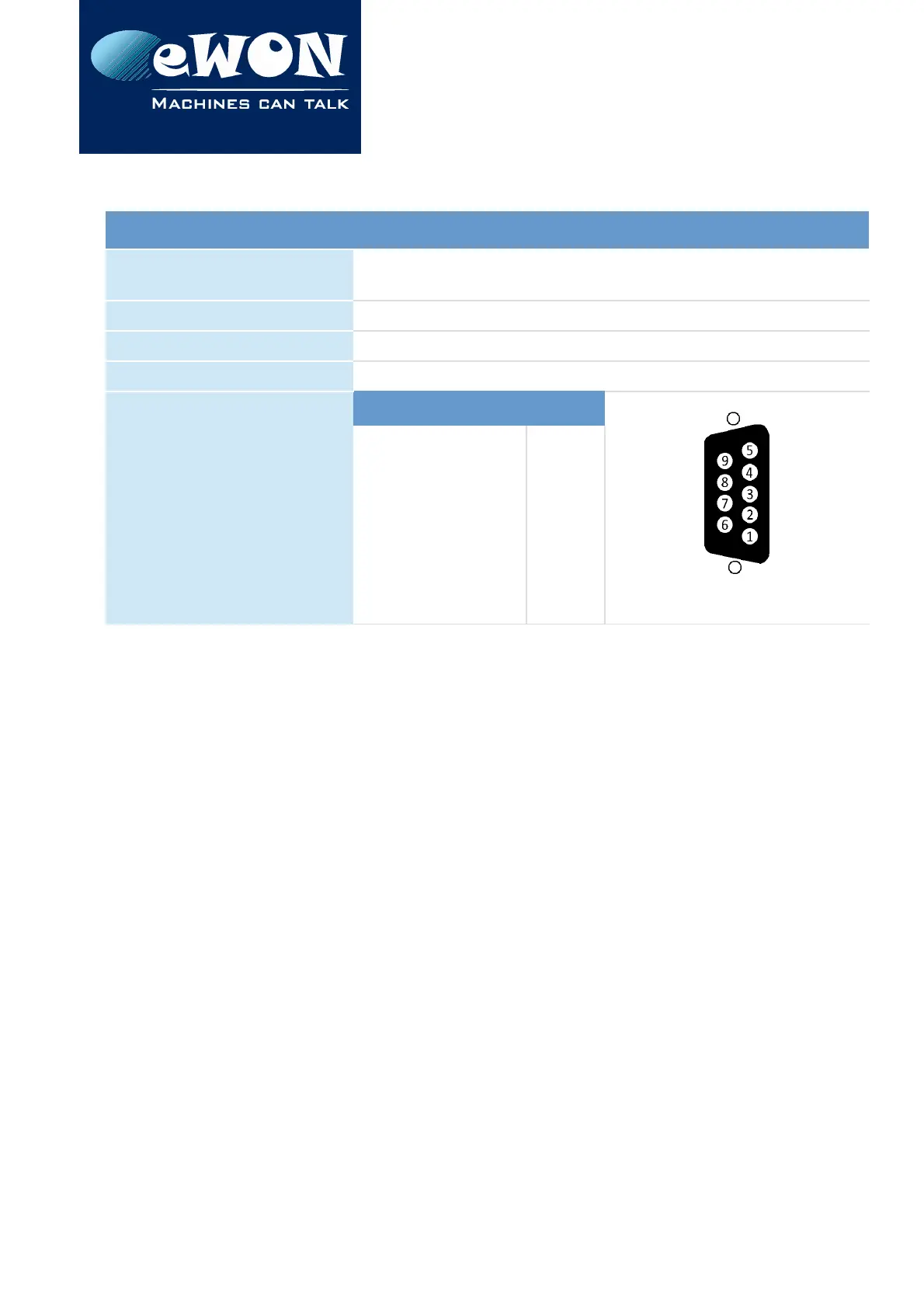

A.5 MPI Interface (eWON Flexy 103 & 203)
Characteristic
V
alue
Physical mode
MPI (1500V galvanic isolation through the power supply
isolation from ground)
Baud rates
From 9,6 kBauds to 12,0 MBauds
Polarization
100 k
Ω
Termination
N
one
SUBD9 female
connector pinout
(eWON side)
Pin #
MP
1
2
3
4
5
6
7
8
9
-
-
B+
-
GND
-
-
A-
-
Page 37 / 40
eWON Flexy - Base Units | I
G 014
36
38
Table of Contents
Default Chapter
2
Table of Contents
2
1 Product Summary
4
Introduction
4
Modular Concept of the Ewon Flexy Family
5
Functions of the Ewon Flexy
6
General Specification of the Hardware Platform
6
Typical Applications
7
Types & Part Numbers
7
2 Safety, Environmental & Regulatory Information
8
Scope
8
ESD Damage Prevention
8
Applicable Directives, Standards and Compliance
8
Conformity to European Directives
9
Applicable Safety Standards
9
FCC Compliance
9
Certifications
9
Reference Standards for Type Tests
10
Operating & Storage Temperature
10
Vibration & Shocks Tests
10
Internal Battery
10
Purpose and Reference
10
Battery Replacement Procedure
11
Field Implementation & Environmental Conditions
12
Ingress Protection
12
Mounting Recommendations
12
Earthing
13
Environmental Limits
13
Labelling Information
13
3 Base Unit Hardware Description
14
Base Unit Label
14
Syntax of the Part Number (PN)
15
Marks
15
Mechanical Dimensions
16
Base Unit Interface
17
LED Panel
18
System
18
Reset Button
18
SD-Card
18
Main Connector
18
Four Slots for Extensions
18
Specific Interfaces to 4-Ports Switch Models (Ewon Flexy 101 & 201)
19
Specific Interfaces to Serial-Port Models (Ewon Flexy 102 & 202)
20
LAN Port
20
Serial Port
20
4-Ports Switch Interfaces
21
LAN Port
21
MPI Port
21
4 Extension Cards
22
Base Unit Slot Compatibility
22
Extension Card Insertion
24
Powering on the Base Unit with Its Extension Cards
25
Multiple Extension Cards
25
Detection Order
25
Software Compatibility of Multiple Card Combinations
25
Extension Card Power Requirements
26
Available Energy Points (Base Units)
26
Energy Demand Points (Extension Cards)
27
Power Balance Check Example
27
5 Ewon Flexy IP Address and Access to the Web Configuration
28
Factory Default IP Settings
28
Powering on
28
Setting the Ewon Flexy LAN IP Address
28
Ewon Flexy's Web Interface
30
Detected Cards Displayed in the System Page
30
6 Resetting the Ewon Flexy
31
Normal Boot Sequence
31
First Level Reset (User Reset)
31
Second Level Reset (Factory Reset)
32
Reset Impact Matrix
33
Appendix A - Connector Pinout & Related Specifications
34
Main Connector
34
Specification of the External Power Supply
35
Digital Output & Digital Inputs
35
Serial Interface (Ewon Flexy 102 & 202)
36
MPI Interface (Ewon Flexy 103 & 203)
37
Appendix B - Flexy Products Overview
38
Base Units
38
Extension Cards
38
Revision
40
Revision History
40
