Chapter 4
Extension Cards
4. Extension Cards
4.1. Base Unit Slot Compatibility

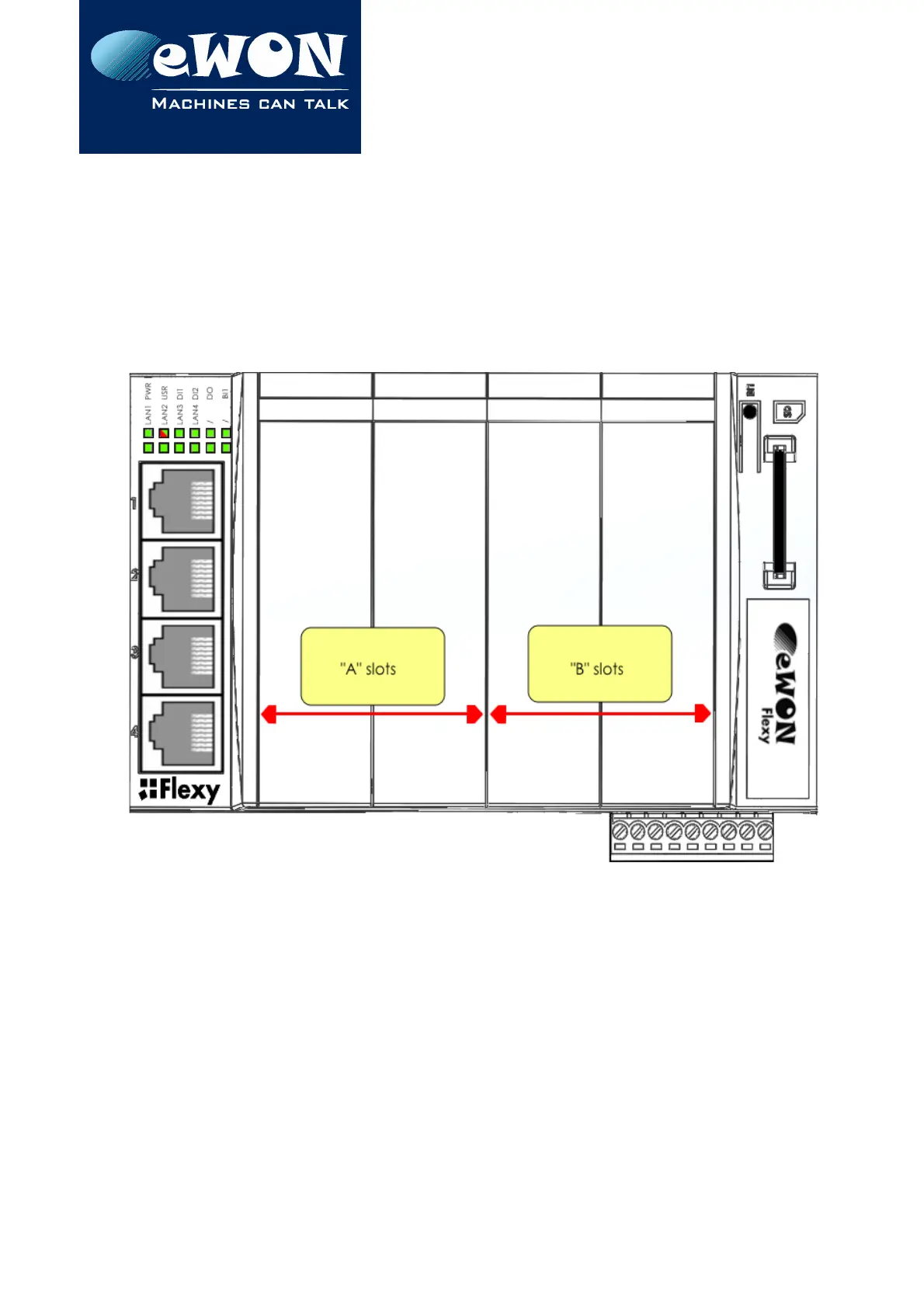

The Base Units feature two type of slots. The type-A slots are the two first slots starting from
the left. The type-B slots are the two last slots. Some cards fit in both type-A and type-B slots.
Others don't. Cards that fit in only one type of slot have a mechanical Poka-Yoke security.
The reference code of the Extension Cards includes a letter that defines their compatibility
either with “A” slots, “B” slots or both.
• FLA xxxx - designates cards that fit into “A” slots
• FLB xxxx - designates cards that fit into “B” slots
• FLX xxxx - designates cards that fit into both “A” and “B” slots
Page 22 / 40 eWON Flexy - Base Units | IG 014
