INSTALLATION STEPS
1. Block up front end of baler one foot off from floor.
2. From underneath the baler, place a wire guide into a slot, sliding the front of the wire guide to the front of the baler.
3. Push the guide into the slot completely, so that the front of the guide rests on the tube at the front of the baler, and so that the
holes in the guide are aligned with those on the baler. See Diagram H.

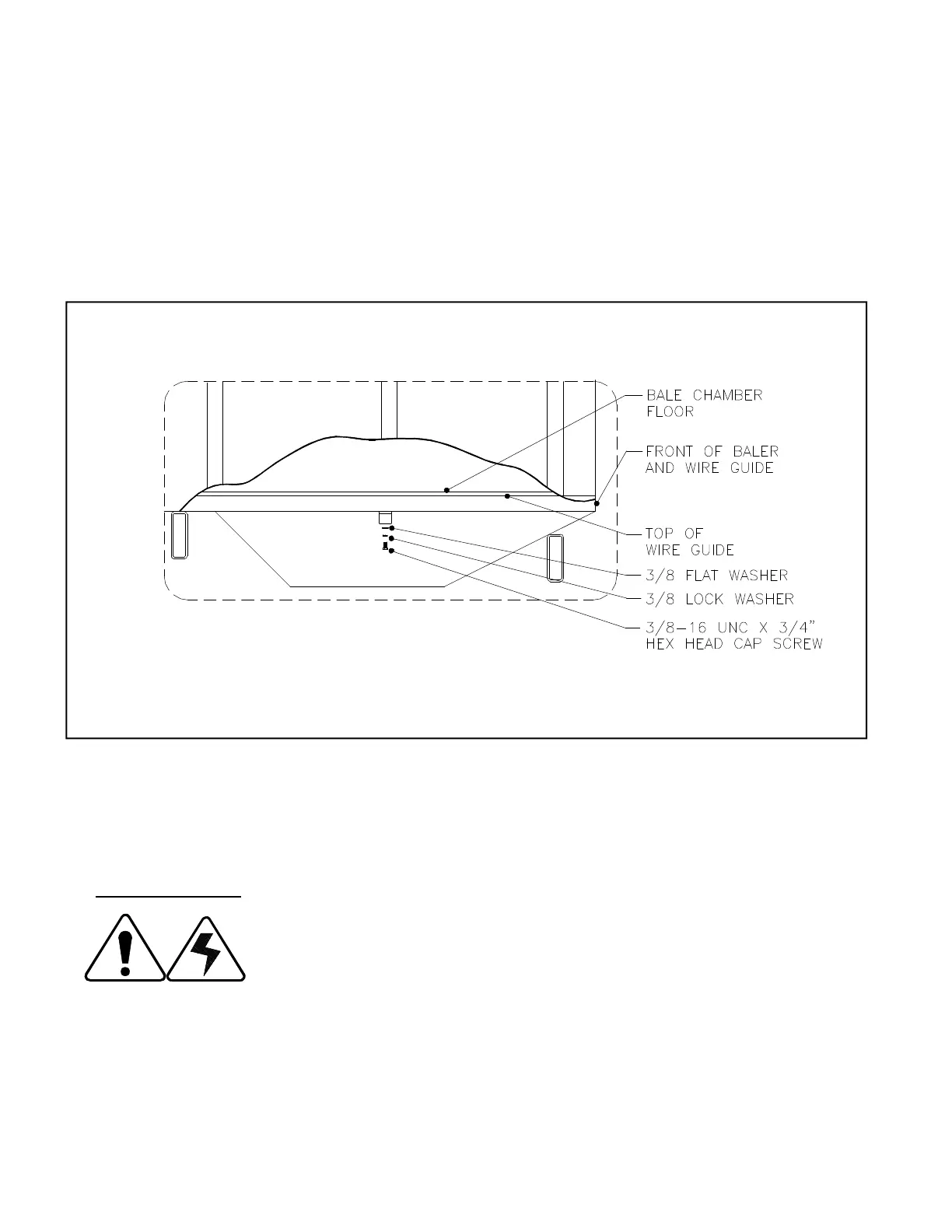

Diagram H. Wire Guide Installation.
4. Use 2 – P-1016 bolts, 2 – P-1024flat washers, and 2 – P-1025 split lock washers to secure the guide. If your baler has
the factory installed studs, please use 2 – P-1024 flat washers and 2 – P-1023 nylock nut.
5. Repeat the previous steps until all guides are in place.
FINAL INSPECTION
As a final check, carefully inspect leaky hydraulic connections, loose electrical connections, and loose
or missing bolts and nuts.
