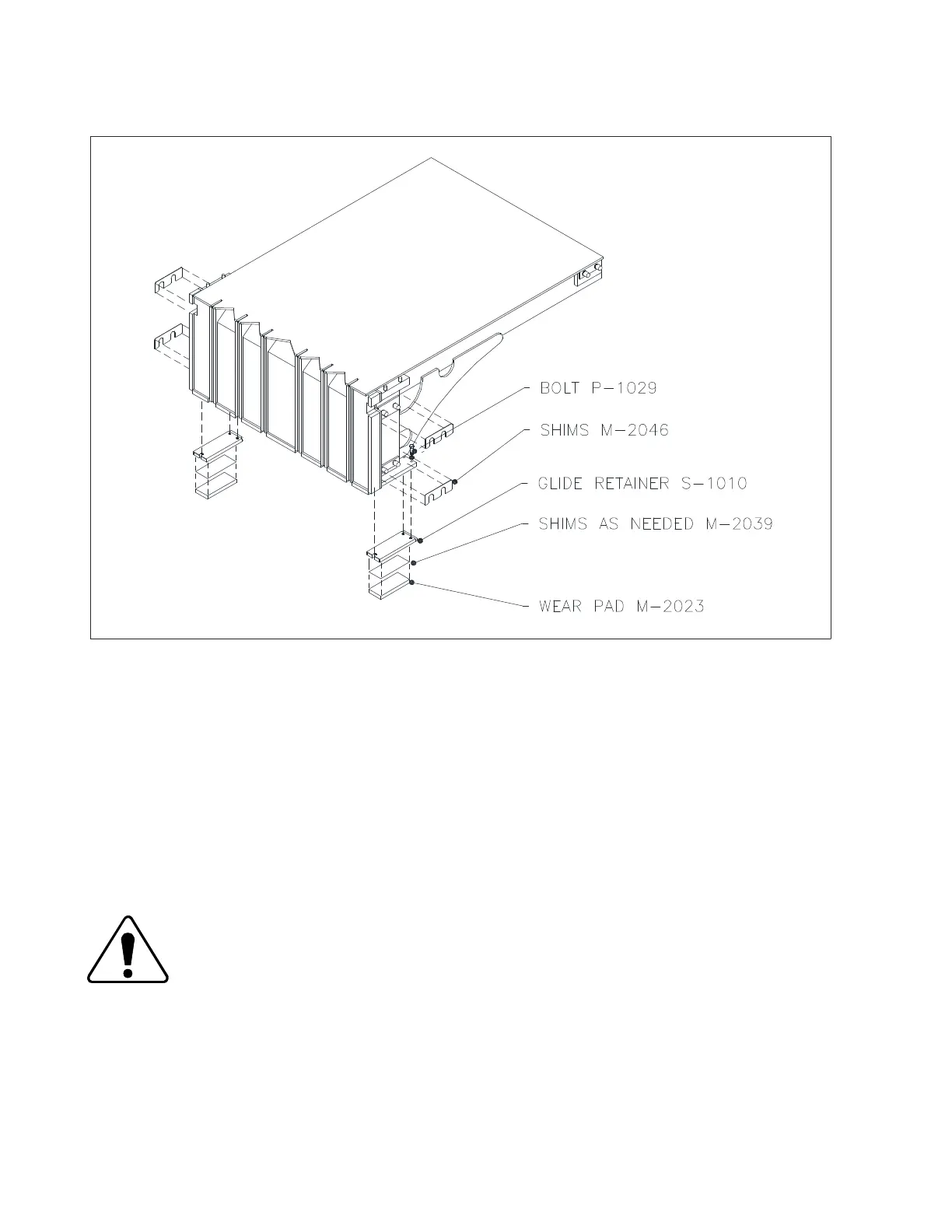

Diagram M. Placement of Shim Material Between Platen and Nylatron.
9. Reassemble the parts and slide into position under the platen.
10. Replace the bolts and tighten securely.
11. Check platen side clearance. Add shims to the side as needed to align wire slots in platen to wire slots in floor.
12. Reactivate the power supply.
13. Reverse the platen.
14. Run the platen forward. Stop the front of the platen under the cutting edge once more.
15. Check the distance from the top of the platen to the cutting edge. It should be 1/16" plus or minus 1/32".
Never run the platen into the cutting edge. Extreme caution must be used while performing this adjustment
