Excell FJ5 - Quick Setup Calibration

EXCELL PRECISION CO., LTD.
45046
6
ZSME300000343
Quick Setup Calibration
This page is to quickly initiate the scale, for the other functions configuration, you can refer the
chapters below.
Instructions:
Step 1 :
 Power off the scale and open the case, find the mini-jumper SWA1 on the main
board.
 Switch SWA1 to the ADJ position (EEPROM UNLOCKED) and then turn the power on.

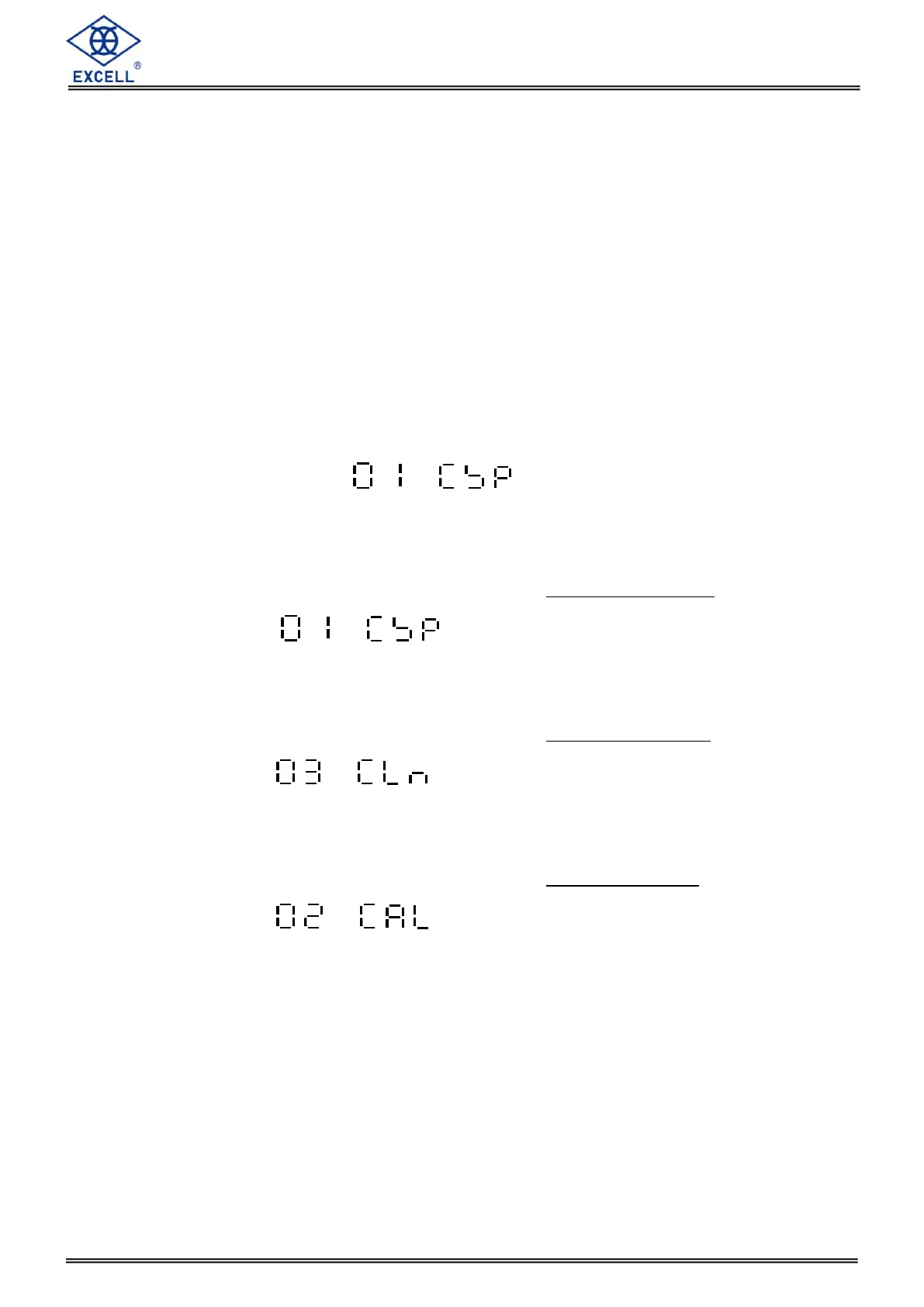

The display will show .
Step 2 :
 Refer to the chapter 4-1 at page 28 to complete Specification Setting.
Step 3 :
 Refer to the chapter 4-2 at page 29 to complete Linearity Calibration.
Step 4 :
 Refer to the chapter 4-3 at page 30 to complete Weight Calibration.
Step 5 :
 When done the initiation, switch the jumper SWA1 back to the LOCK position.
