Setting Up Your FTB-1v2 and FTB-1v2 Pro

112 FTB-1v2 and FTB-1v2 Pro

Configuring the Power Management Options

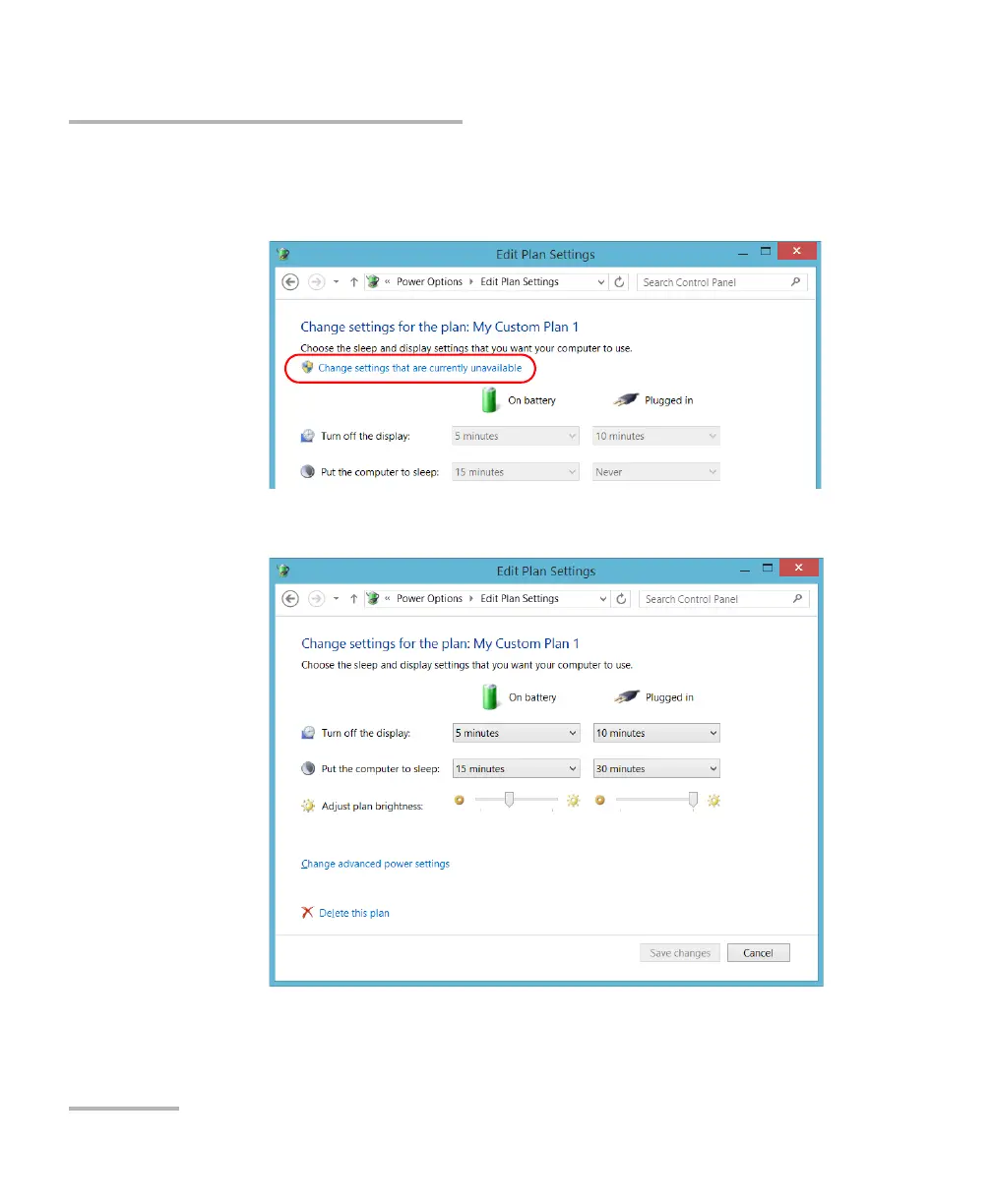

6. If you want to modify the parameters, proceed as follows:

6a. If necessary, tap Change settings that are currently unavailable.

6b. Modify the parameters to your needs.

6c. Tap Save changes.
