Setting Up Your FTB-1v2 and FTB-1v2 Pro

114 FTB-1v2 and FTB-1v2 Pro

Setting Mini Toolbox X Behavior

You can specify how Mini Toolbox X behaves when the application is

started, minimized or closed.

To set the Mini Toolbox X behavior:

1. From the main window, tap the System Settings button.

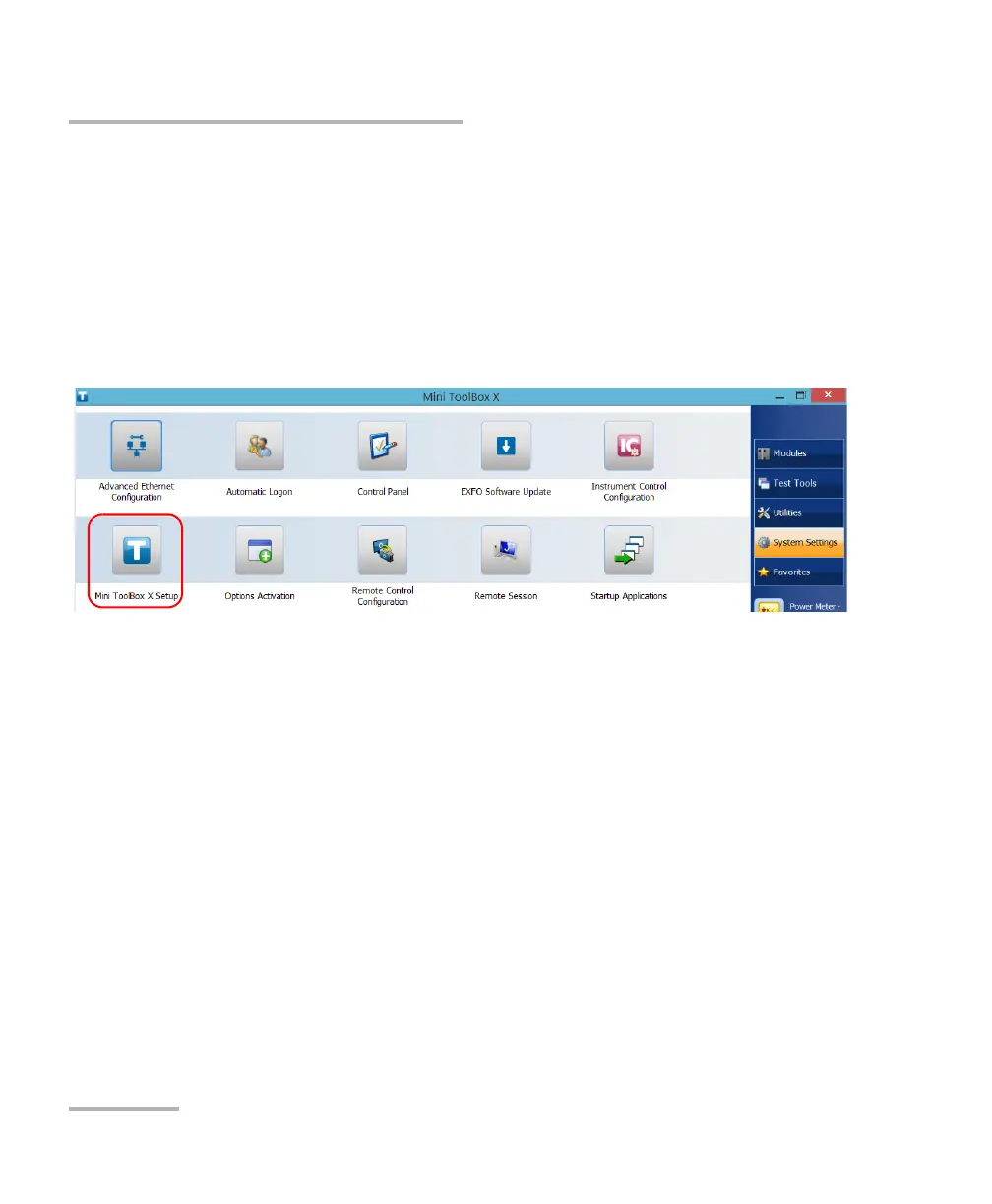

2. Tap Mini ToolBox X Setup.
