Managing Data

170 FTB-1v2 and FTB-1v2 Pro

Freeing Up Disk Space with the Disk Cleanup Utility

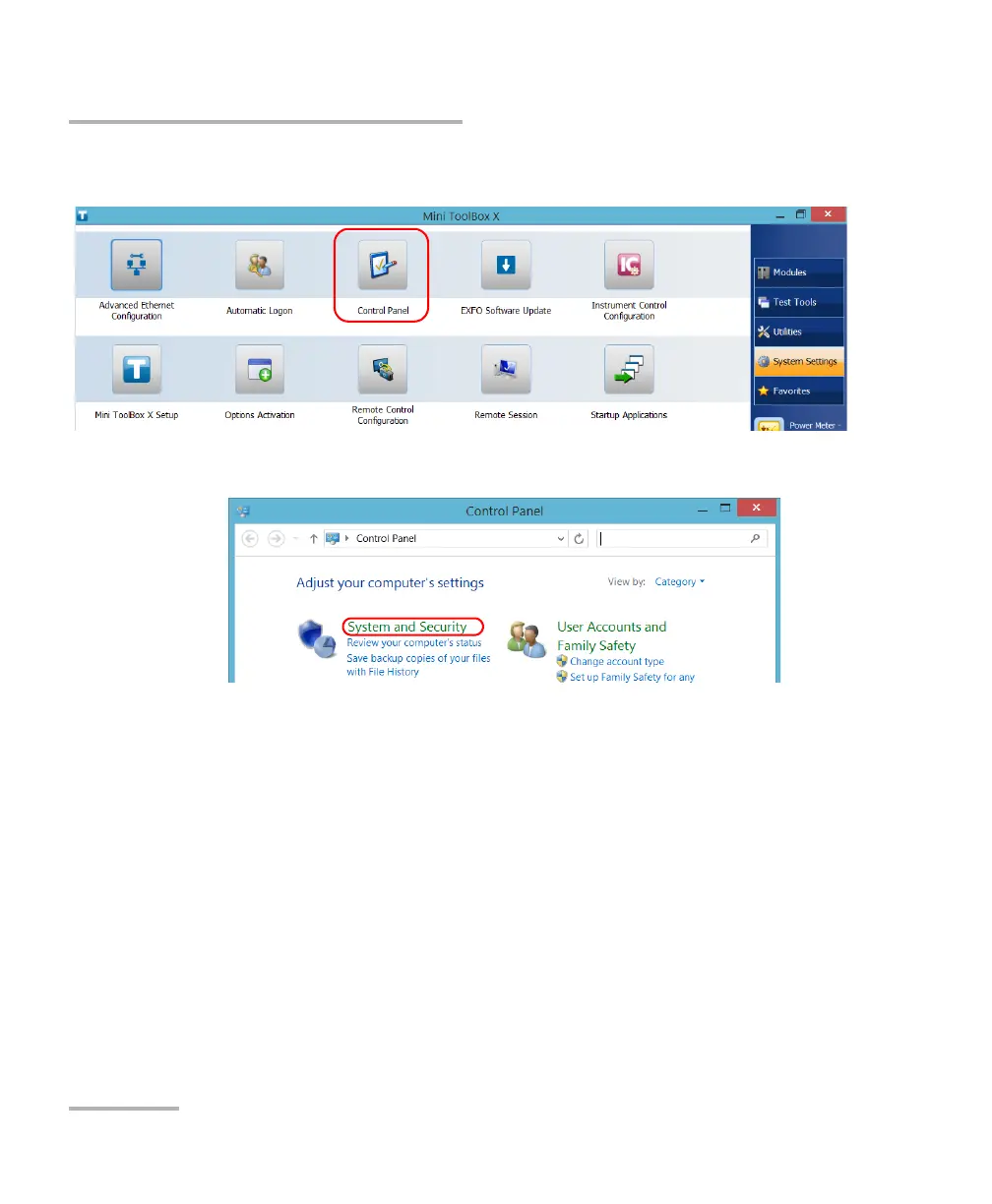

3. Tap Control Panel.

4. Tap System and Security.

Main Page
