Preparing for Automation

224 FTB-1v2 and FTB-1v2 Pro

Changing Communication Settings

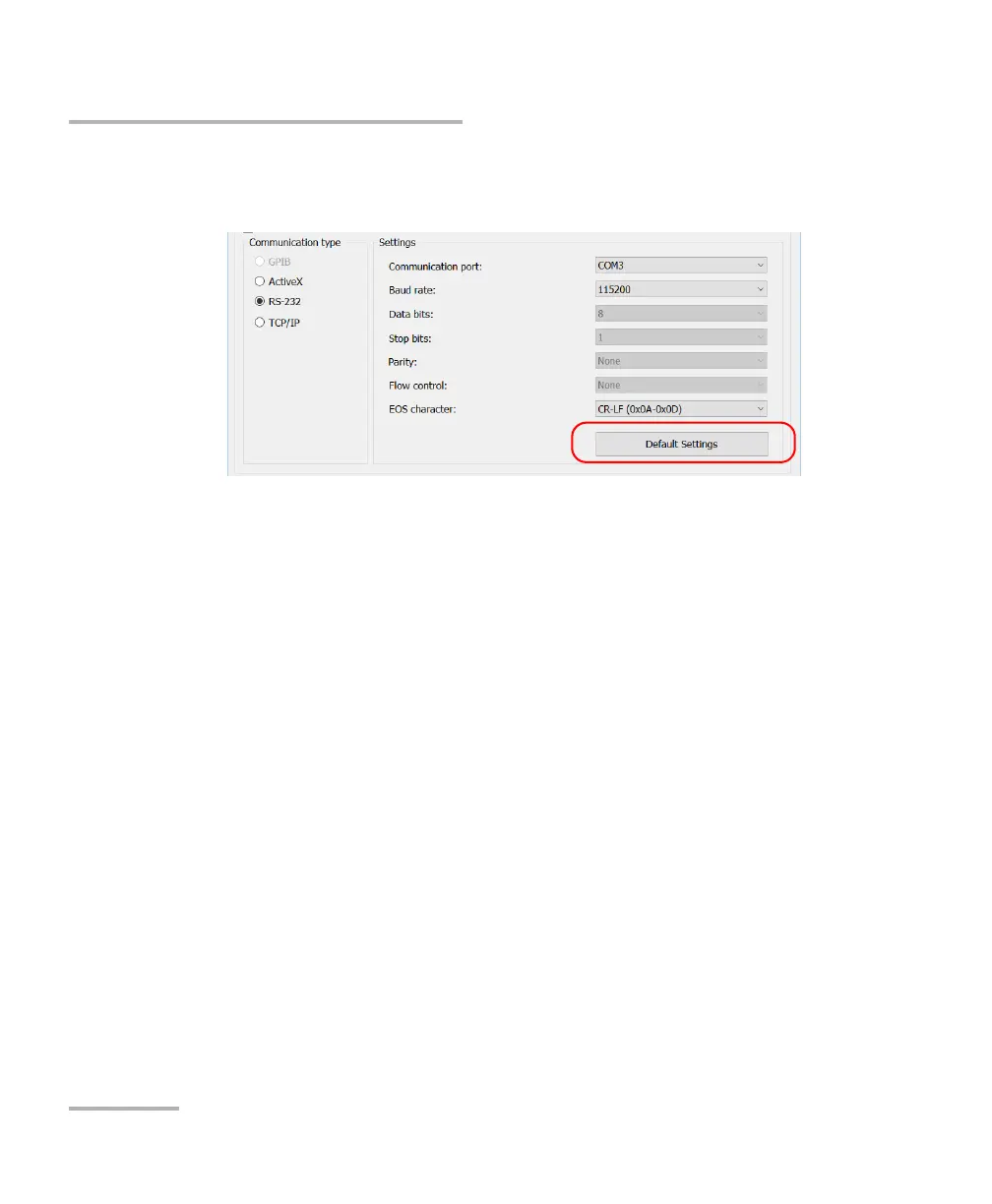

To revert to default RS-232 settings:

1. Tap the Default settings button.

2. Tap Apply to confirm your changes.
