Preparing for Automation

FTB-1v2 and FTB-1v2 Pro 231

Configuring DCOM Access to Your Unit

To add a user explicitly:

1. In the My Computer Properties dialog box, tap the COM Security tab.

2. Under Access Permission, tap Edit Limits.

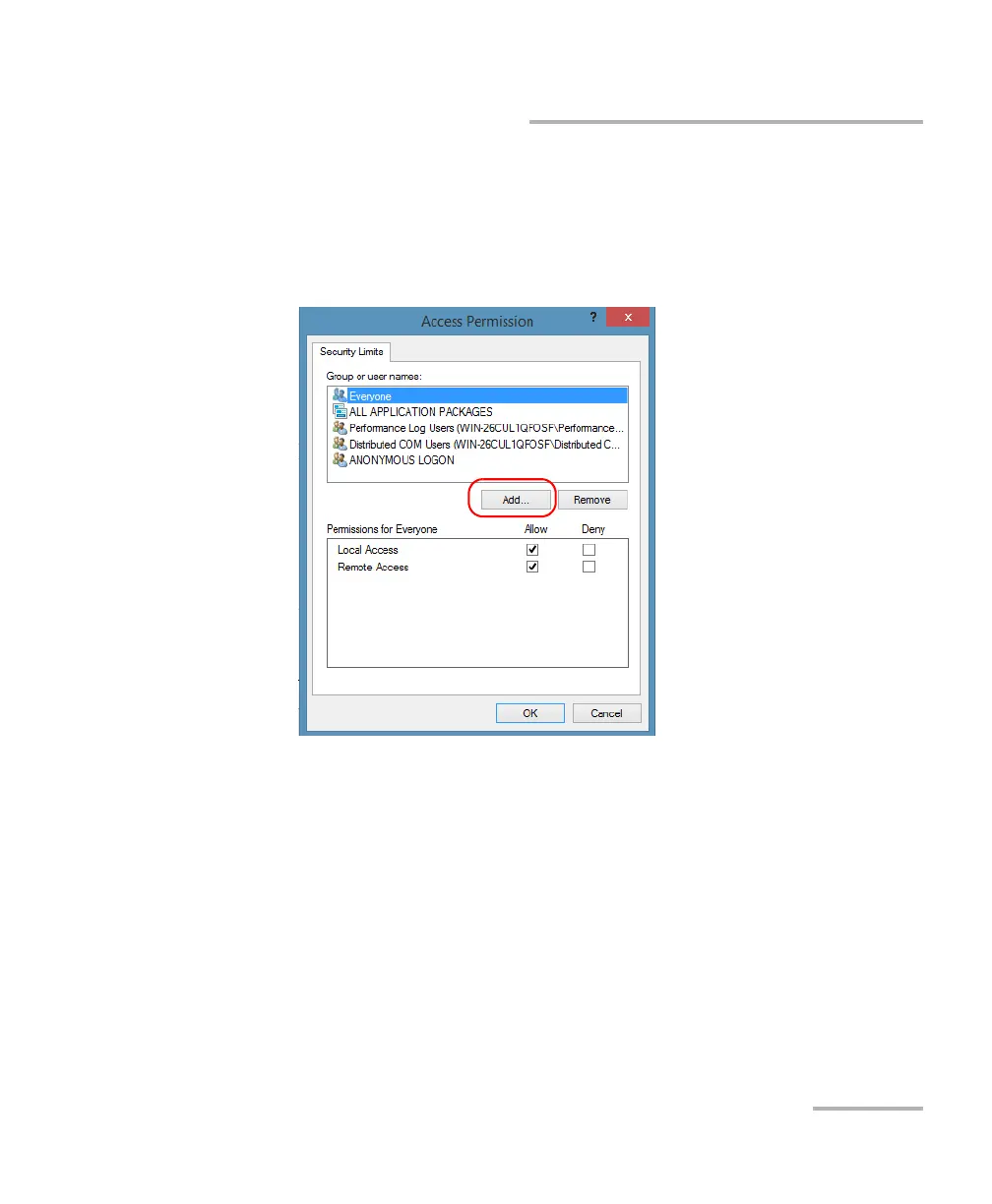

3. In the Access Permission dialog box, tap Add.
