Preparing for Automation

252 FTB-1v2 and FTB-1v2 Pro

Configuring Your Instruments

To define a LINS offset value:

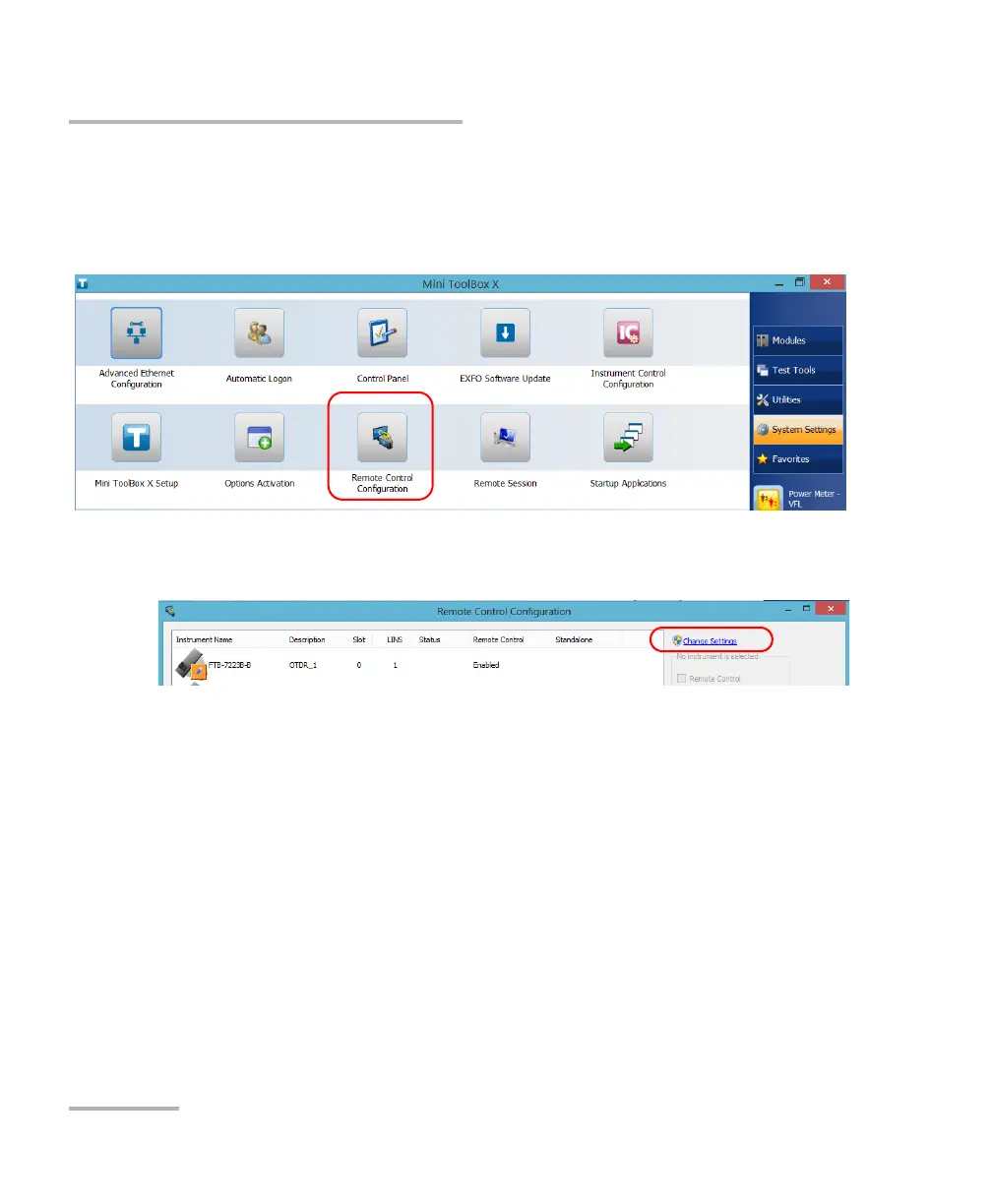

1. From the main window, tap the System Settings button.

2. Tap Remote Control Configuration.

3. If necessary, tap Change settings, and then, when the application

prompts you to authorize the changes to your unit, select Yes.
