Troubleshooting

324 FTB-1v2 and FTB-1v2 Pro

Restoring Your Unit to Normal Operation

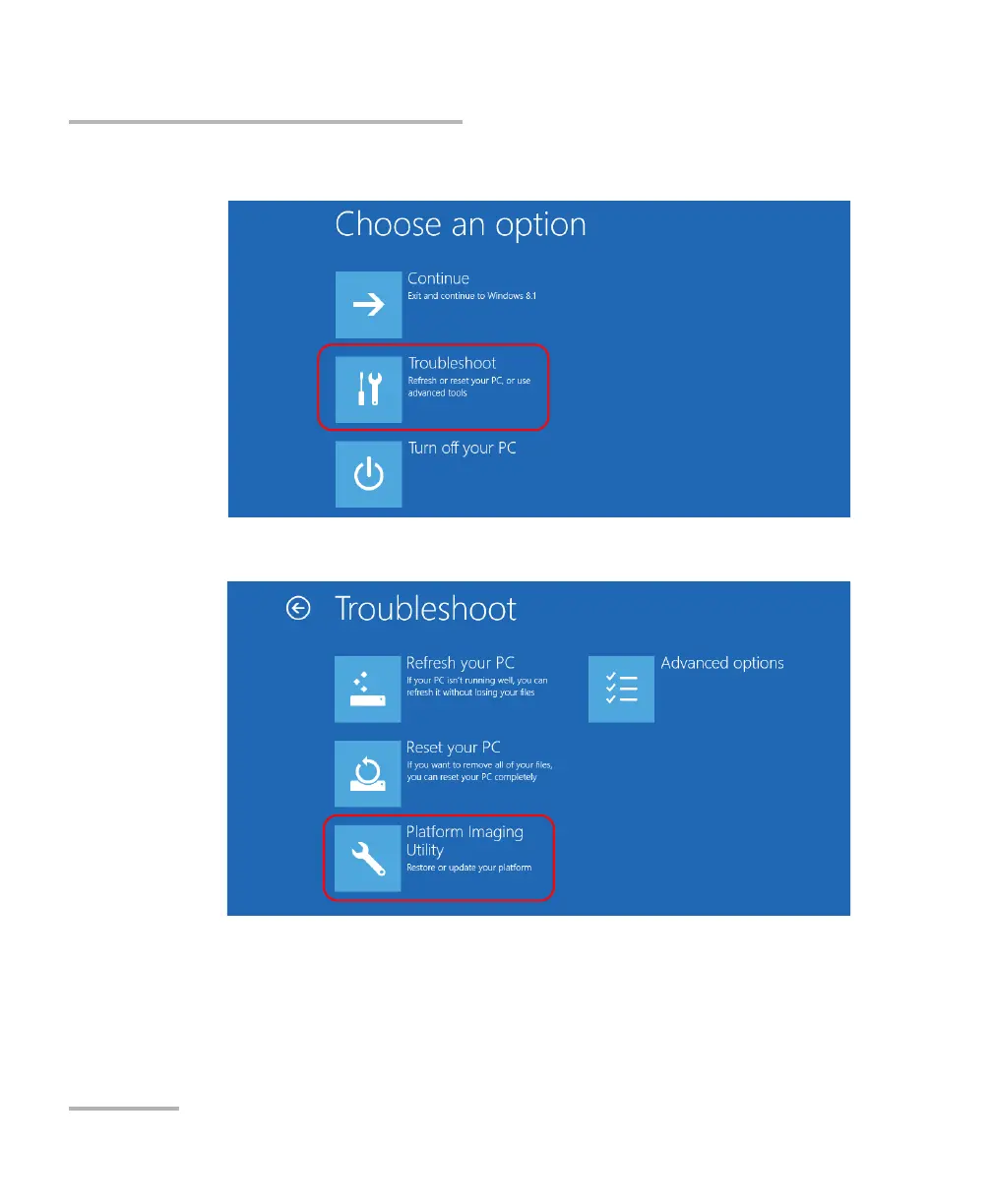

7. Under Choose an option, tap Troubleshoot.

8. Tap Platform Imaging Utility to display the corresponding application.

9. Connect the USB key with the desired WIM file to your unit.
