Troubleshooting

FTB-1v2 and FTB-1v2 Pro 351

Viewing System Information

Retrieving the Mini Toolbox X Version

You can view the version of Mini Toolbox X that is installed on your unit.

To retrieve the Mini Toolbox X version:

1. In the lower right corner of the main window, tap .

2. Tap the About tab.

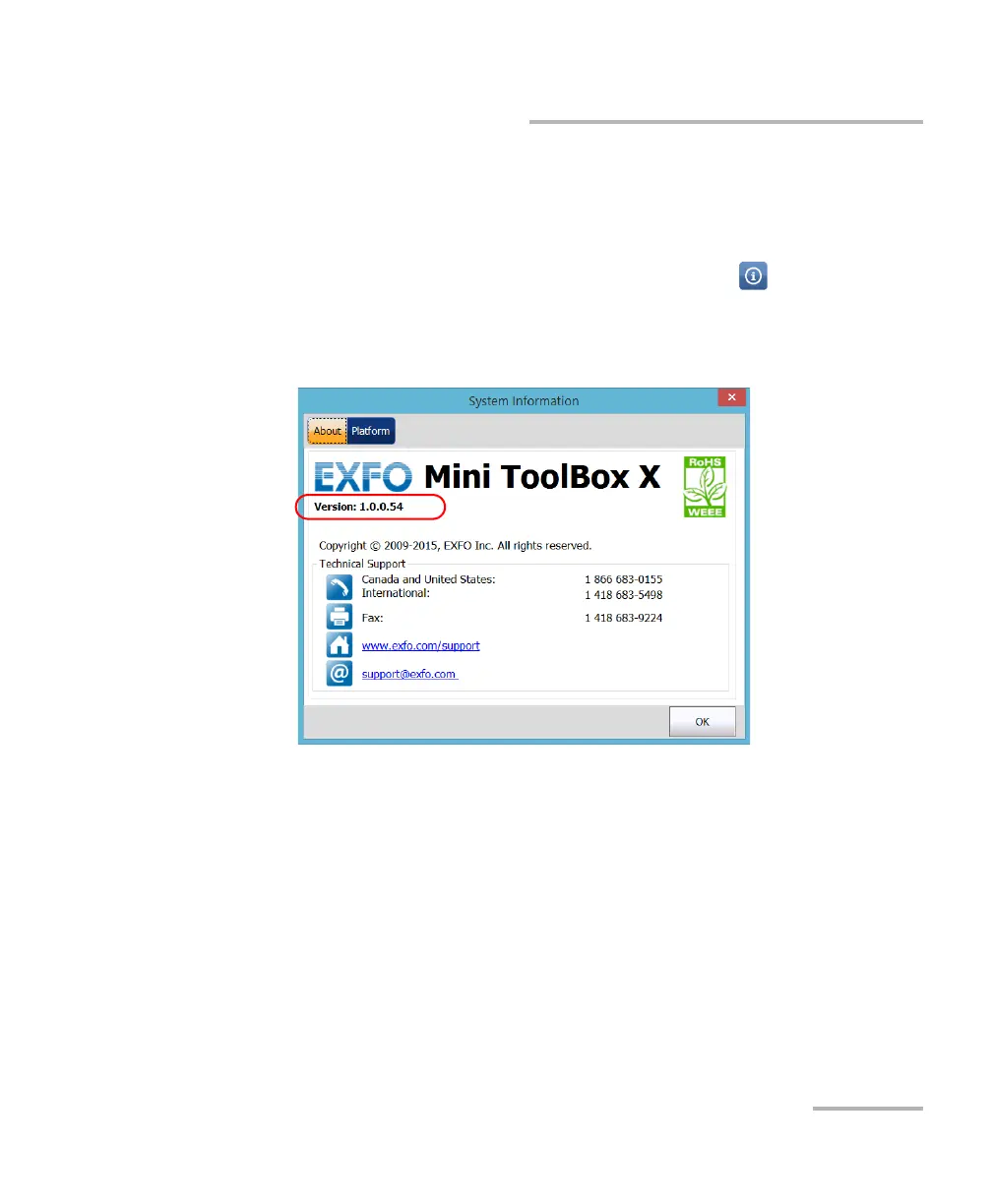

The version number is displayed.
