Data Types

366 FTB-1v2 and FTB-1v2 Pro

Applicable Data Types for Input—IEEE 488.2

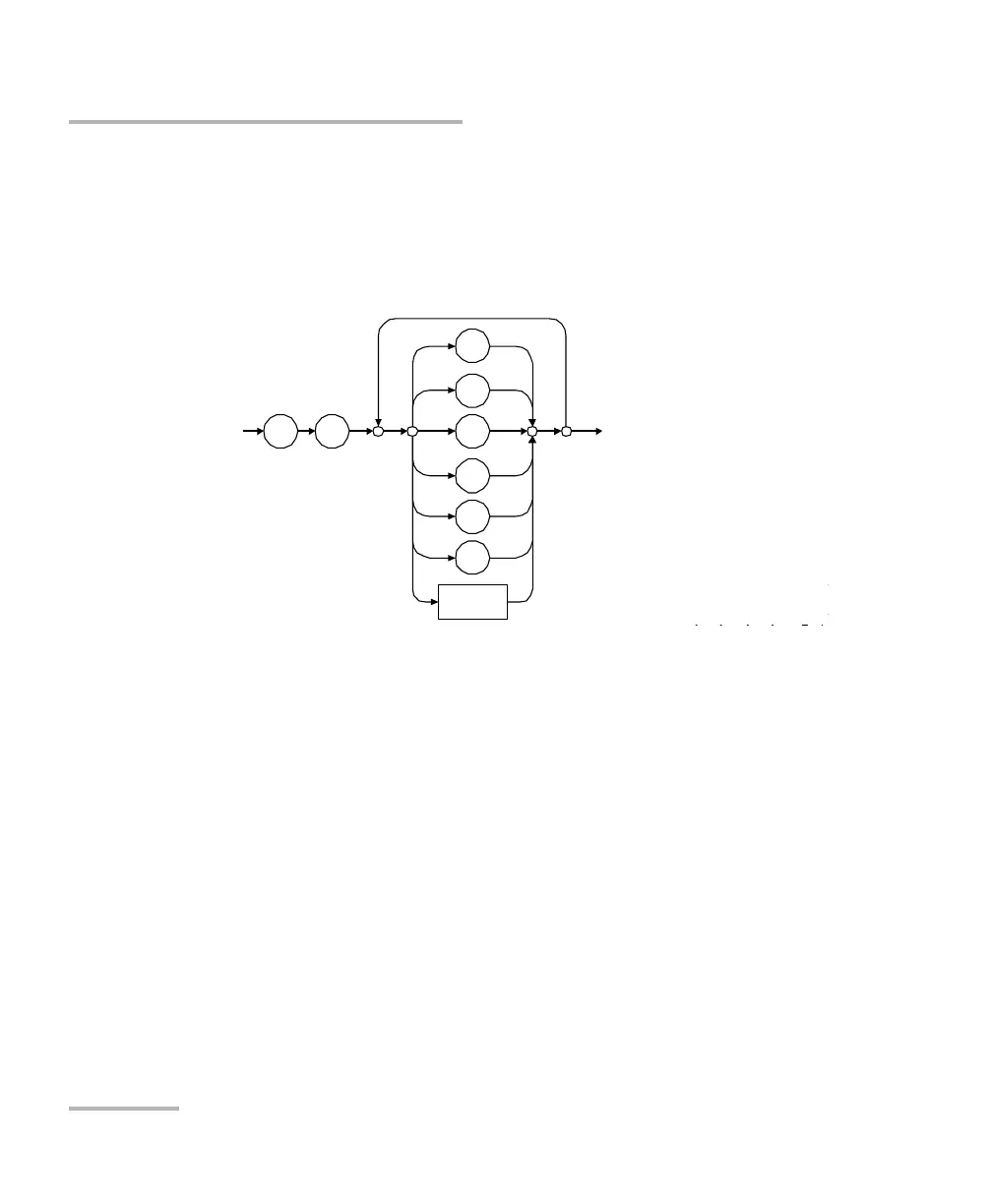

 <NON-DECIMAL NUMERIC PROGRAM DATA>

This data type will be used for integer representation in hexadecimal

(base 16), octal (base 8) or binary (base 2). The numeric

representations will begin with “#H” for hexadecimal, “#Q” for octal

and “#B” for binary.

Examples: #Hf3bc015d, #h01a4, #hfe

# H/h C/c

B/b

A/a

D/d

E/e

<digit>

F/f
