Getting Started with Your Unit

FTB-1v2 and FTB-1v2 Pro 43

Turning Off Your Unit

To define the behavior of the power button:

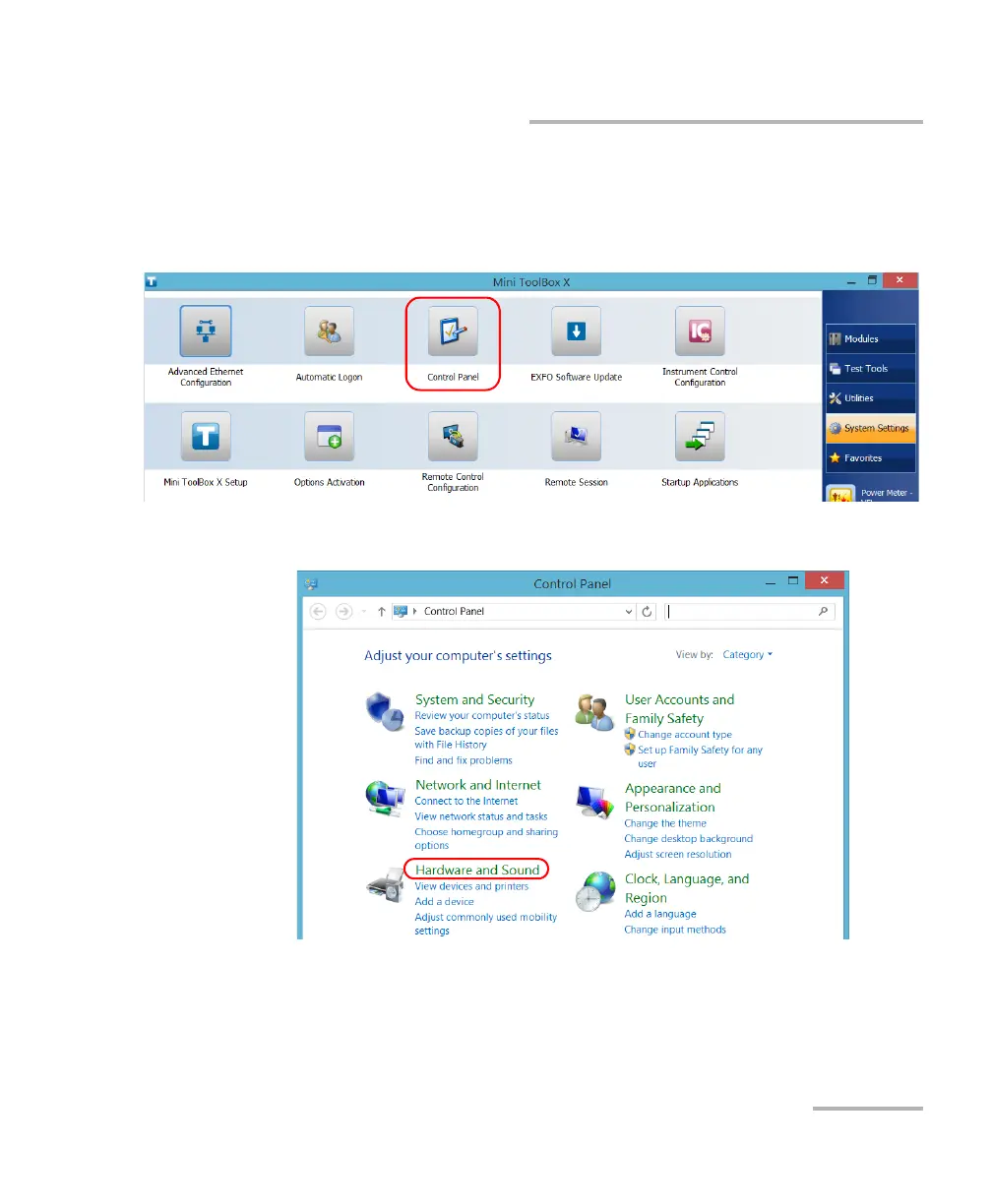

1. From the main window, tap the System Settings button.

2. Tap Control Panel.

3. Tap Hardware and Sound.
