Maintenance
Setneutral:
1.Removetheelectricalconnectionfromtheseat
safetyswitch,locateddirectlyinfrontoftheseat
switchassembly.
2.Theneutraladjustmentmustbemadewiththe
drivewheelsturning.Raisetheframeandplace
onjackstandssothatdrivewheelscanrotate
freely.Temporarilyinstallajumperwireacrossthe
terminalsintheconnectorofthewiringharness.
3.Starttheengine.
4.Runtheunitatleast5minuteswiththespeed
controlleveratfullforwardspeedtobring
hydraulicsystemoiluptooperatingtemperature.
Returnspeedcontrollevertoneutral(fullrear)
position.
5.Toobtaintheneutralposition,adjusttheleftand
rightpumpcontrolrodlinkagesthatconnectthe
steeringcontroltothepumpcontrolarmsuntil
thewheelsstop,orcreepslightlyinreverse.
6.Adjusttheleftpumplinkagebyrotatingthe
trackingadjustmentknob.
7.Adjusttherightpumplinkagebyusingawrench
toturnthedoublenutsontheassembly(see
Figure34)

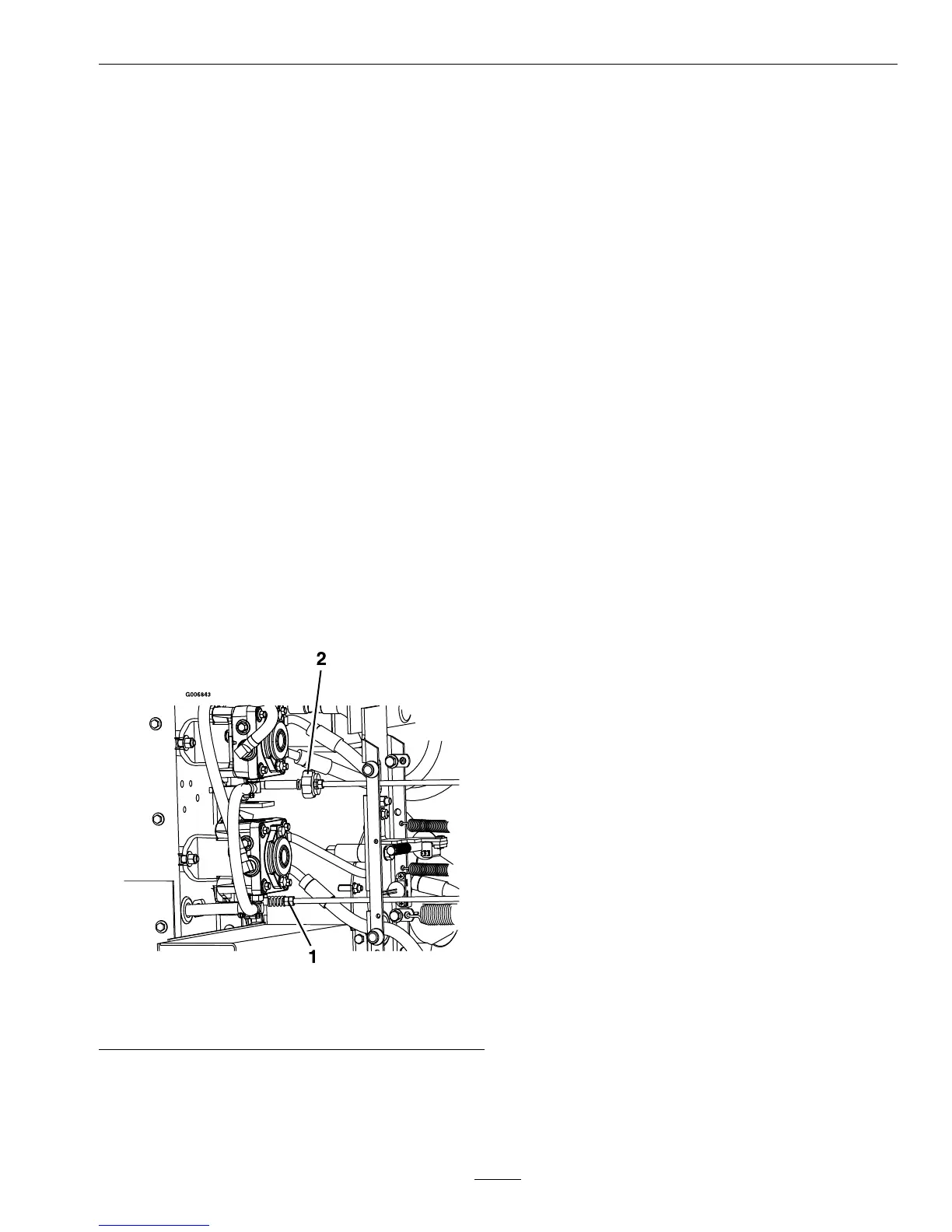

Figure34
1.Rotatetrackingknobon
leftside
2.Rotatedoublenutson
rightside
8.Movethesteeringleverstothereverseposition.
Whileapplyingslightpressuretothelevers,allow
thesteeringleverstoreturntoneutral.Thewheels
muststopturning(orslightlycreepinreverse).
9.Stopengineandwaitforallmovingpartstostop.
Removejumperwirefromwireharnessconnector
andplugconnectorintoseatswitch.
10.Lowerfromjackstands.
TrackingAdjustment
SeeMotionControlLinkageAdjustmentsection
PTODrivePulleyAlignment
PTOdrivepulleyalignmentisnecessaryforanyof
thefollowingconditions:
•Theblowerhasbeenremovedorreplaced.
•Theenginemountingboltshavebeenloosenedor
theenginehasbeenmovedorreplaced.
•Thejackshaftmountingboltshavebeenloosened
orthejackshafthasbeenmovedorreplaced.
1.Stopengine,waitforallmovingpartstostop,and
removekey.Engageparkingbrake.
2.Movethespeedcontrollevertotheneutral
position.
3.DisengagethePTOlever.
4.Removefueltankmountingnutsandswingout
fueltank.
5.Verifythattheblowerisinstalledandsecured
tightly.
6.Loosenthefourenginemountingbolts.
7.Unhookthepumpbelttensionspring.
8.Loosenthefourjackshaftmountingbolts.
9.Measuringfromtheblowerpulleyasabaseline,
movetheengineandjackshaftuntiltherear
surfaceofallthreepulleysarealignedwithin1/32
inchto1/16inch(0.8-1.6mm).Useastraight
edgetoalignallthreesurfaces(seeFigure35).
45

Exmark NAVIGATOR Specifications

General

Drive System	Hydrostatic
Deck Construction	Fabricated
Transmission	Hydrostatic
Deck Material	Steel
Turning Radius	Zero-turn
Cutting Width	42 in
Blade Tip Speed	18, 500 fpm
Engine Type	V-Twin
