Exmark NAVIGATOR User Manual

Operation
7.Installspringsontothespringanchorpinsunder
theleftandrightconsolesandsecurewitha
washerandhairpin(seeFigure12).
8.Un-latchdeckfromraisedposition,slowlylower
decktogroundandlockdecklockingpinson
eachsideLoweringtheDecktotheOperation
PositionsectioninOperation.
EmptyingHopper
1.Afullhopperisindicatedbyabuzzerlocated
behindtheoperatorinthehopper.Emptyhopper
whenbuzzersoundstopreventcloggingofthe
blowerordeck.
2.DisengagePTO,movespeedcontroltoneutral,
setparkbrakeanddismountunittodumphopper.
3.Makesureunitisonadrylevelsurface.
4.Liftthereardoorupandallowittorestontop
ofhopper.
5.Turnthekeytothe“ON”positionandpressthe
hopperswitchtoraisethehoppertodumpthe
contents;presstheswitchtolowerthehopper.
6.Turnthekey“OFF”andlowerthereardoor.
ClearingHopperScreen
Screenmayberemovedbyrmlyliftingscreen
handles(seeFigure16).
Pullscreentowardsthebacktoremove.Gentlytap
debrisfromthescreenasneeded.
Excessivebuild-uponthescreencancausethe
blowertoplug.
Note:Inconditionswherethescreenclogsquickly,
thefrontremovablescreenpanelcanbeturnedand
reinstalledundertheprimaryscreentoallowfreeair
owfromthehopper.

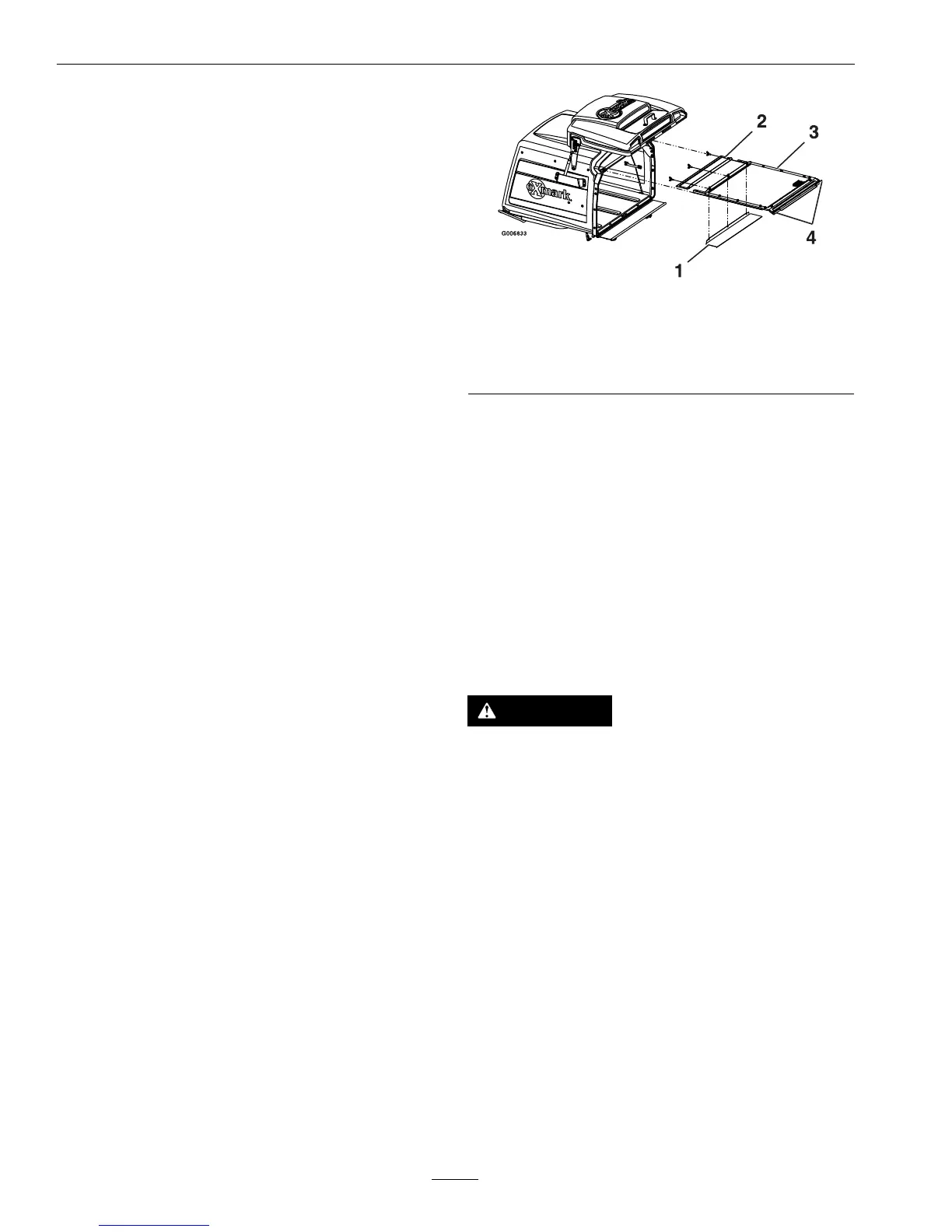

Figure16
1.Frontremovablescreen
canberotatedand
storedforwetconditions
3.Primaryscreen
2.Frontremovablescreen4.Handles.
Transporting
TransportingaUnit
Useaheavy-dutytrailerortrucktotransportthe
machine.Lockbrakeandblockwheels.Securely
fastenthemachinetothetrailerortruckwithstraps,
chains,cable,orropes.Ifpossible,bothfrontand
rearstrapsshouldbedirecteddownandoutward
fromthemachine.Besurethatthetrailerortruck
hasallnecessarylightingandmarkingasrequiredby
law .Secureatrailerwithasafetychain.
CAUTION
Thisunitdoesnothaveproperturnsignals,
lights,reectivemarkings,oraslowmoving
vehicleemblem.Drivingonastreetorroadway
withoutsuchequipmentisdangerousand
canleadtoaccidentscausingpersonalinjury.
Drivingonastreetorroadwaywithoutsuch
equipmentmayalsobeaviolationofStatelaws
andtheoperatormaybesubjecttotrafctickets
and/ornes.
DoNotdriveaunitonapublicstreetorroadway.
28

Exmark NAVIGATOR Specifications

General

Drive System	Hydrostatic
Deck Construction	Fabricated
Transmission	Hydrostatic
Deck Material	Steel
Turning Radius	Zero-turn
Cutting Width	42 in
Blade Tip Speed	18, 500 fpm
Engine Type	V-Twin
